Part Numbers
Model Voltage
No. DC Part No.
EP-170 6 5633-273-002
24 5633-273-003
90 5633-273-005
EP-250 6 5130-273-031
24 5130-273-032
90 5130-273-034
EP-400 6 5131-273-009
24 5131-273-010
90 5131-273-011
EP-500 6 5230-273-003
24 5230-273-011
90 5230-273-002
EP-825 6 5231-273-003
24 5231-273-004
90 5231-273-002
EP-1000 6 5232-273-003
24 5232-273-005
90 5232-273-002
EP-1525 6 5234-273-003
90 5234-273-002
EP-1525HT 90 5234-273-012
When ordering, specify size, voltage, and
part numbers.
Selection Procedure
Determine the shaft speed at the Electro
Pack location. The number listed at the
intersection of horsepower and speed is
the size Electro Pack you require.

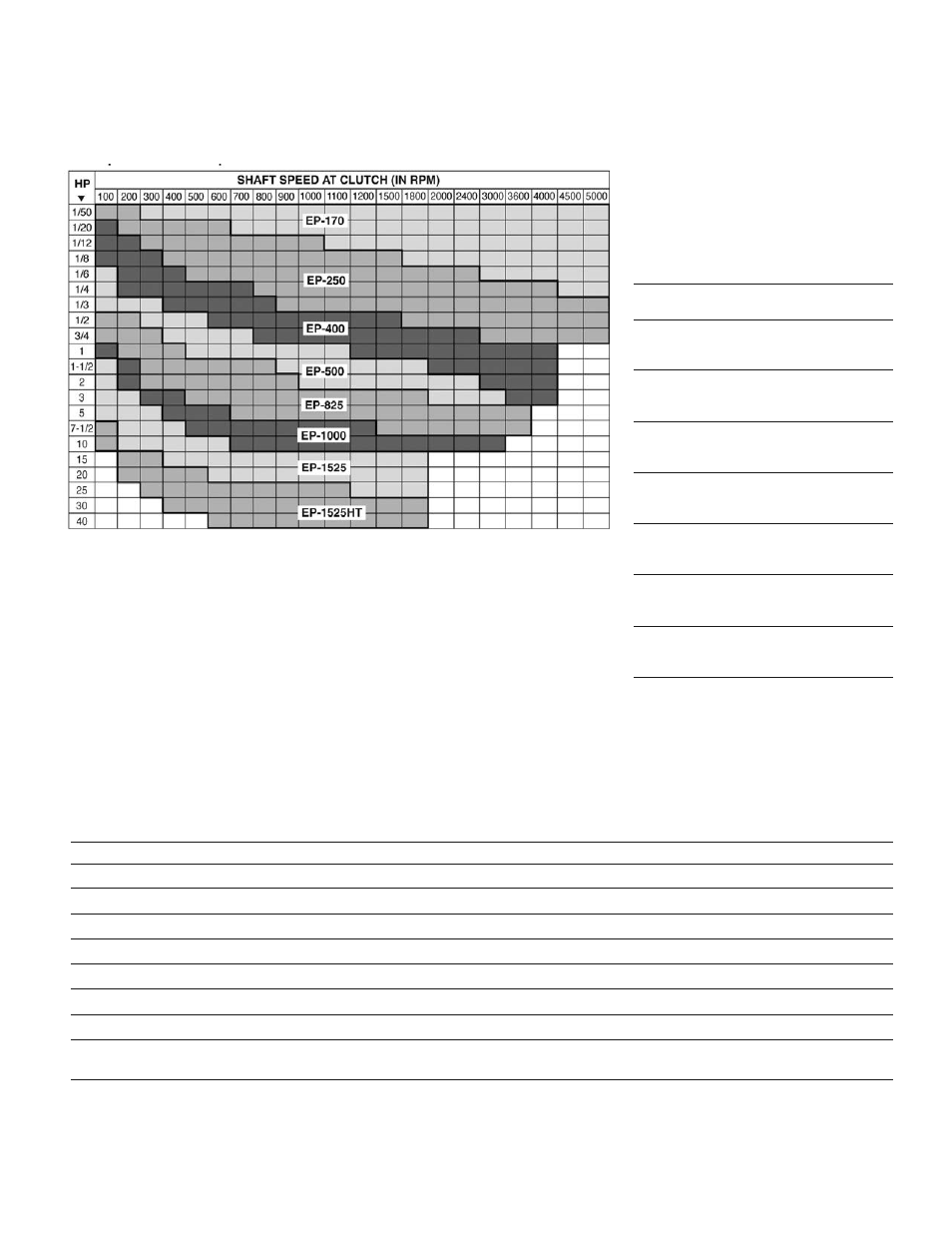

Horsepower vs. Shaft Speed
Specifications
Electro-Pack Size Horsepower @ 1800 RPM Static Torque Max. RPM Voltage DC
EP-170 1/8 15 lb. in. 10,000 6, 24 or 90
EP-250 1/2 70 lb. in. 7,500 6, 24 or 90
EP-400 1 270 lb. in. 4.500 6, 24 or 90
EP-500 2 50/40 lb. ft. 4,000 6 or 90
EP-825 7-1/2 125 lb. ft. 3,600 6 or 90
EP-1000 10 240 lb. ft. 3,000 6 or 90
EP-1525 25 700 lb. ft. 1,800 6 or 90
EP-1525HT 40 1350 lb. ft. clutch 1,800 90
700 lb. ft. brake
Clutch/Brake Selection Information
