16 Warner Electric • 800-825-9050 P-212 • 819-0078
Component Parts
Item Description Part No. Qty.
1 Magnet Assembly 1
6 volt 5312-631-004
24 volt 5312-631-005
90 volt 5312-631-006
1-1 Wire Assembly (Red) 5232-954-003 1
1-2 Wire Assembly (Black) 5232-954-004 1
1-3 Terminal Accessory 5311-101-001 1
2 Armature & Splined Adapter 5322-111-002 1
2-1 Button Head Screw 797-0272 1
2-2 Autocap Accessory 5322-101-004 1
2-3 Splined Arm, Adapter 104-0009 1
2-4 Armature 5322-111-036 1
2-5 Locknut 661-0004 3
3 Frame 174-0043 1
4 Dust Cover 287-0052 1
5 Button Head Screw 797-1175 8
6 Lockwasher 950-0103 8
7 Splined Armature Hub 540-0061 1
8 Bushing, 1-7/8" Bore 180-0177 1
9 Armature & Splined Adapter 5202-111-001 1
9-1 Locknut 661-0004 3
9-2 Splined Armature Adapter 104-0009 1
9-3 Autogap Accessory 5322-101-004 1
9-4 Spacer 748-0333 3
9-5 Armature 5322-111-036 1
9-6 Cap Screw 797-0341 3
10 Bushing, 2" Bore 180-0179 1
11 Rotor Hub 540-0315 1
12 Rotor 5202-751-003 1
Item Description Part No. Qty.
13 Field Assembly 1
6 volt 5202-451-004
24 volt 5202-451-006
90 volt 5202-451-007
14 Mounting Accessory 5321-101-001 1
15 Mounting Accessory 5201-101-007 1
16 Mounting Accessory 5321-101-001 1
17 Oil Seal 795-0024 2
18 Button Head Screw 797-1008 8
19 Retainer Plate 686-0047 2
20 Retainer Ring – External 748-0504 2
21 Ball Bearing 166-0130 2
22 Retainer Ring – Internal 748-0375 2
23 Key 590-0024 2
24 Shaft, Brake 798-0026 1
25 Cap Screw 797-0361 8
26 Lockwasher 950-0362 8
27 Bearing Housing 535-0012 2
28 Ball Bearing 166-0131 2
29 Key 590-0025 2
30 Shaft, Clutch 798-0025 1
*NS Clamp Wire Speed Nut 263-0016 2
*NS Wire Assembly (Red) 5232-954-003 2
*NS Wire Assembly (Black) 5232-954-004 2
*NS Screws 797-1007 2
*NS Insulator Bushing 572-0522 1
*NS - Not Shown
These units meet the standards of UL508 and are listed under guide card
#NMTR, file #59164. These units are CSA certified under file #LR11543

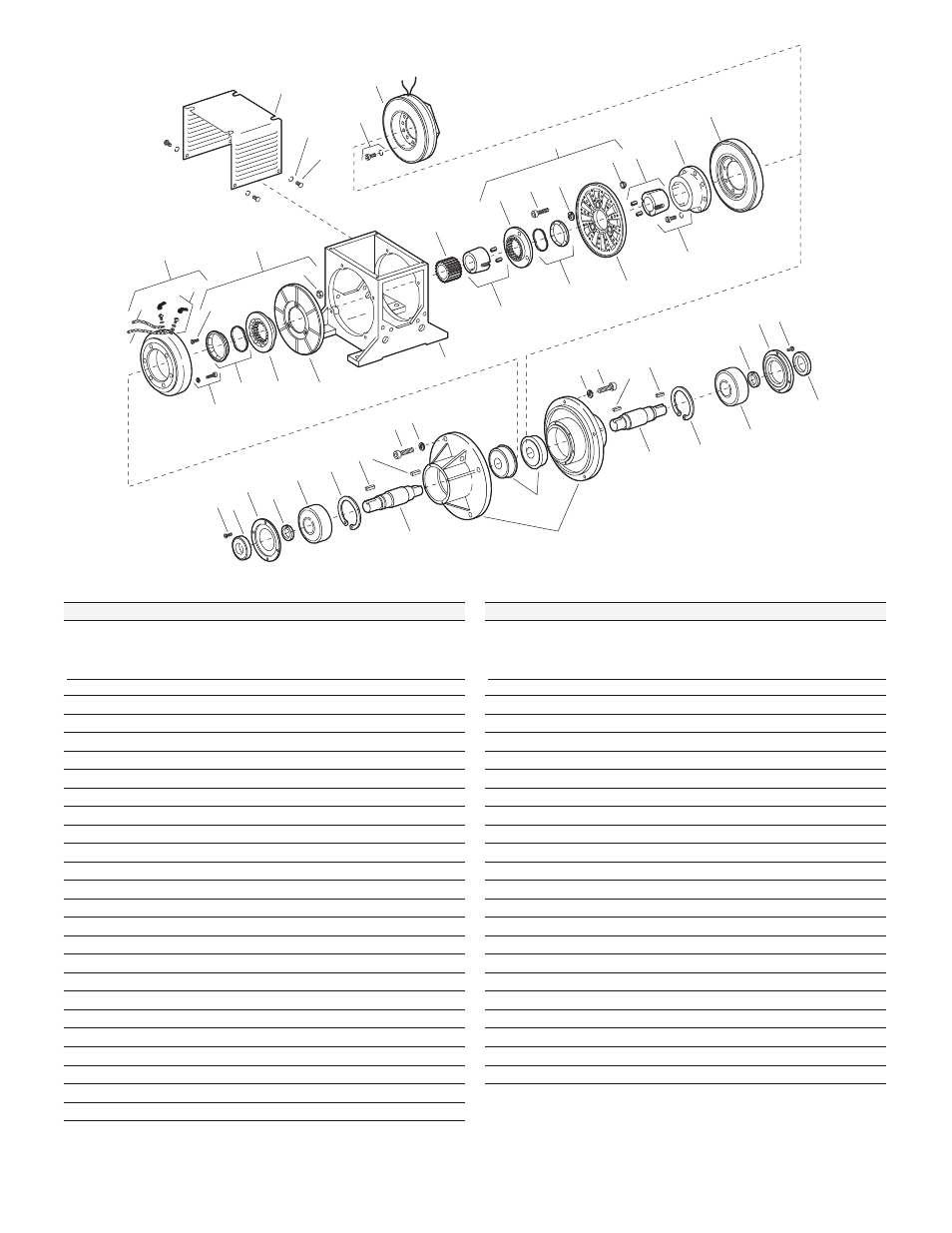

EP-1000
EP-1000 Exploded
11/19/99
page 123
4
6
5
14
13
15
9-3
8
16
2-3 2-4 2-2
3
12
11
9-1 10
9-4
9-6
9-2
7
2-5
2-1
1-3
1-2
1-1
1
9-5
18 17
19
20
21
22
23
25
26
29
28
27
30
22
21
20
19 18
17
23 25
26 29
24
2
9
