REV 1 EZCT-2000B USER’S MANUAL
35
3.3.4. Performing an Insulation Resistance Test
To perform an insulation resistance test:

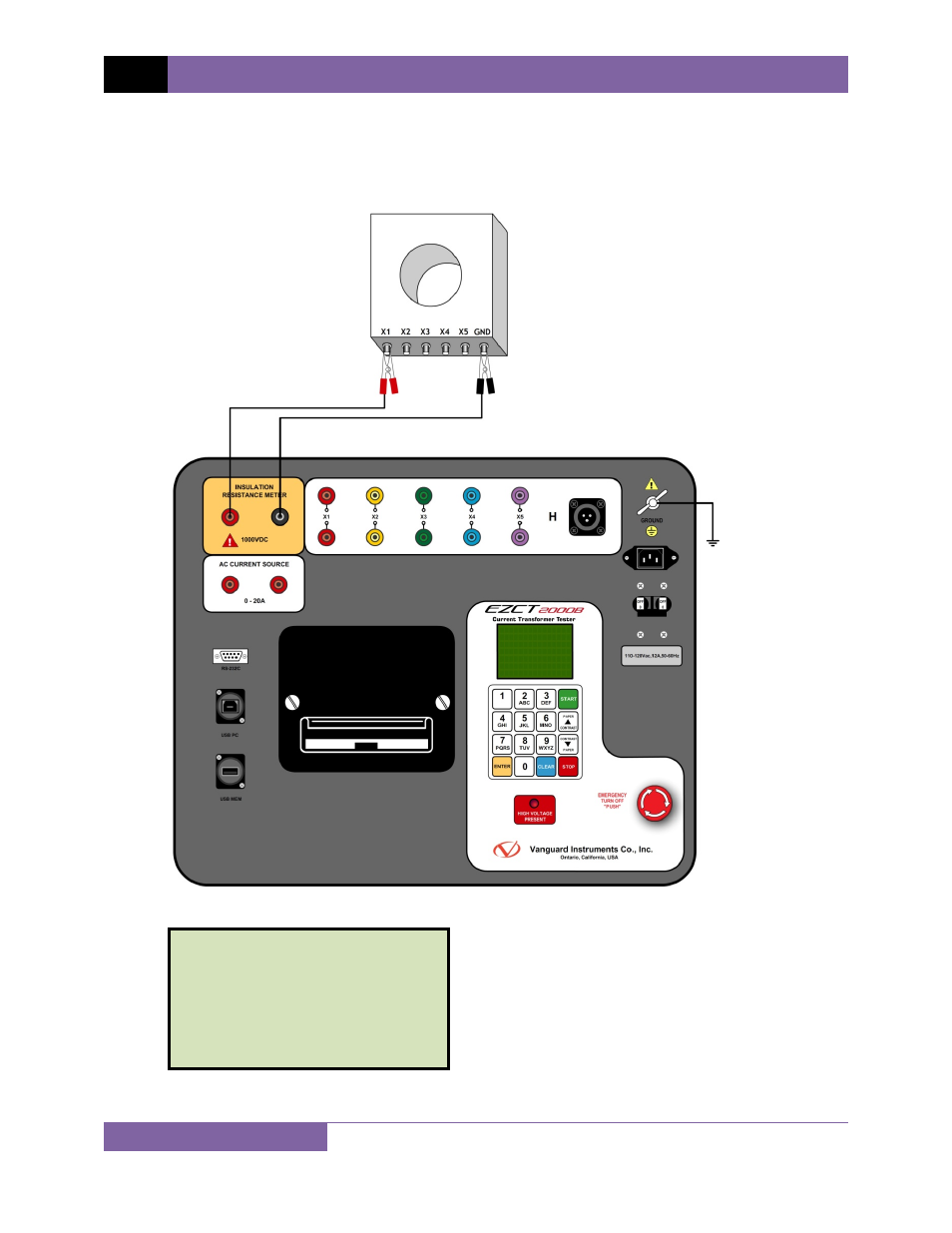

a. Make connections per the figure below:
b. Start from the “START-UP” menu:
Press the
[1]
key (RUN TEST).
1.
RUN TEST 06/17/09
2.
SETUP 10:14:25
3.
TEST PLANS
4.
DIAGNOSTICS
5.
CURRENT SOURCE
