CT-7000 S2 USER’S MANUAL REV 2
85
e. The following screen will be displayed:
Finish closing the breaker manually and then press the “ENTER” key. The test results will
be printed and you
will be returned to the “START-UP” menu. A typical test results
printout is shown in Figure 33.

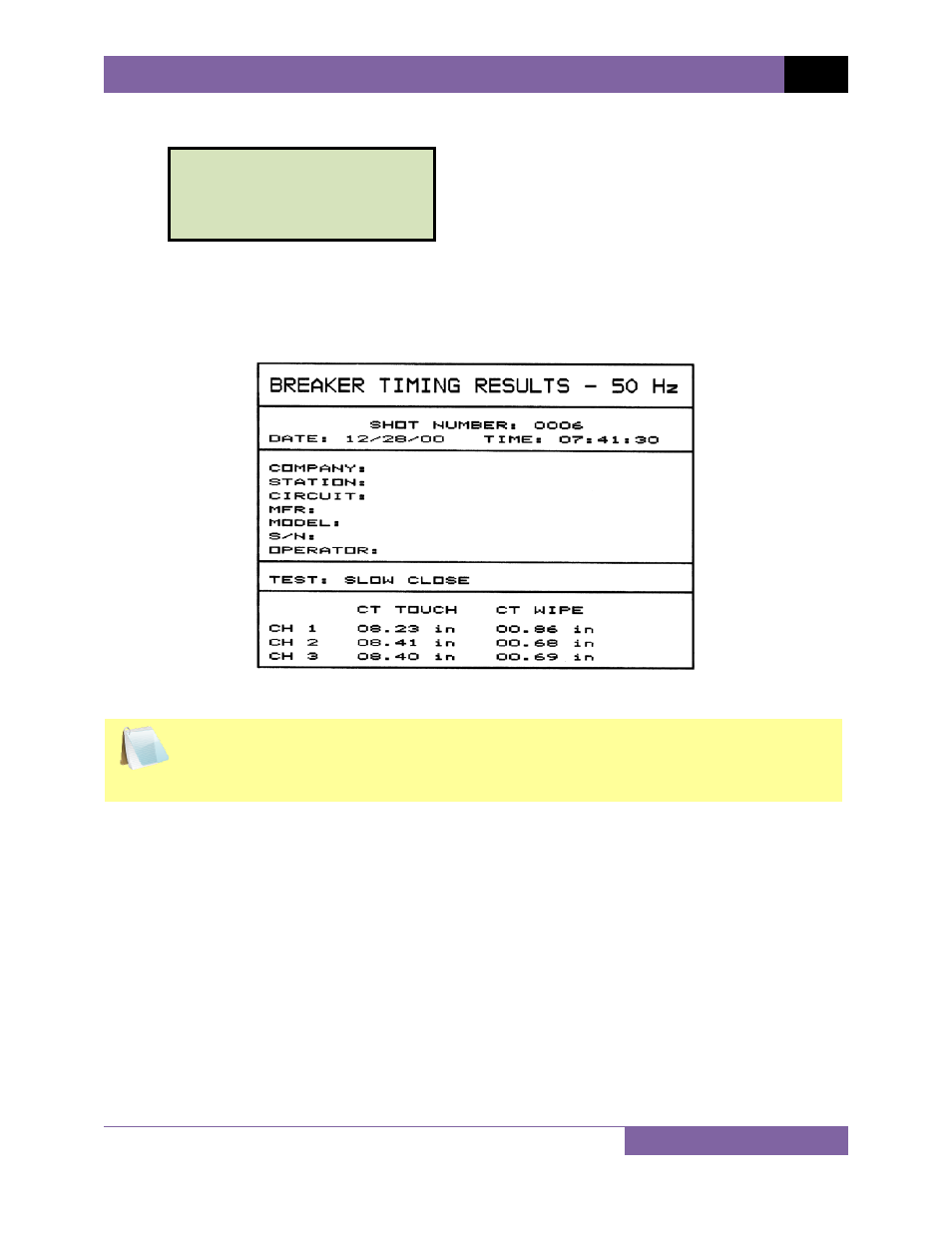

Figure 33. Typical Slow-Close Test Results Printout
NOTE
The breaker’s stroke is the sum of the contact touch and contact wipe distances.
LIFT BRKR TO CLS POS
THEN PRESS “ENTER”
TO FIND CONTACT WIPE
