CT-7000 S2 USER’S MANUAL REV 2
59
4. PLOT 0 – 200MS
Press the
[4]
key to print the tabulated test results along with the graphic test
results from 0 – 200 milliseconds. The graph and tabulated results will be printed
on the thermal printer. You will be returned to the “START-UP” menu when printing
is finished.

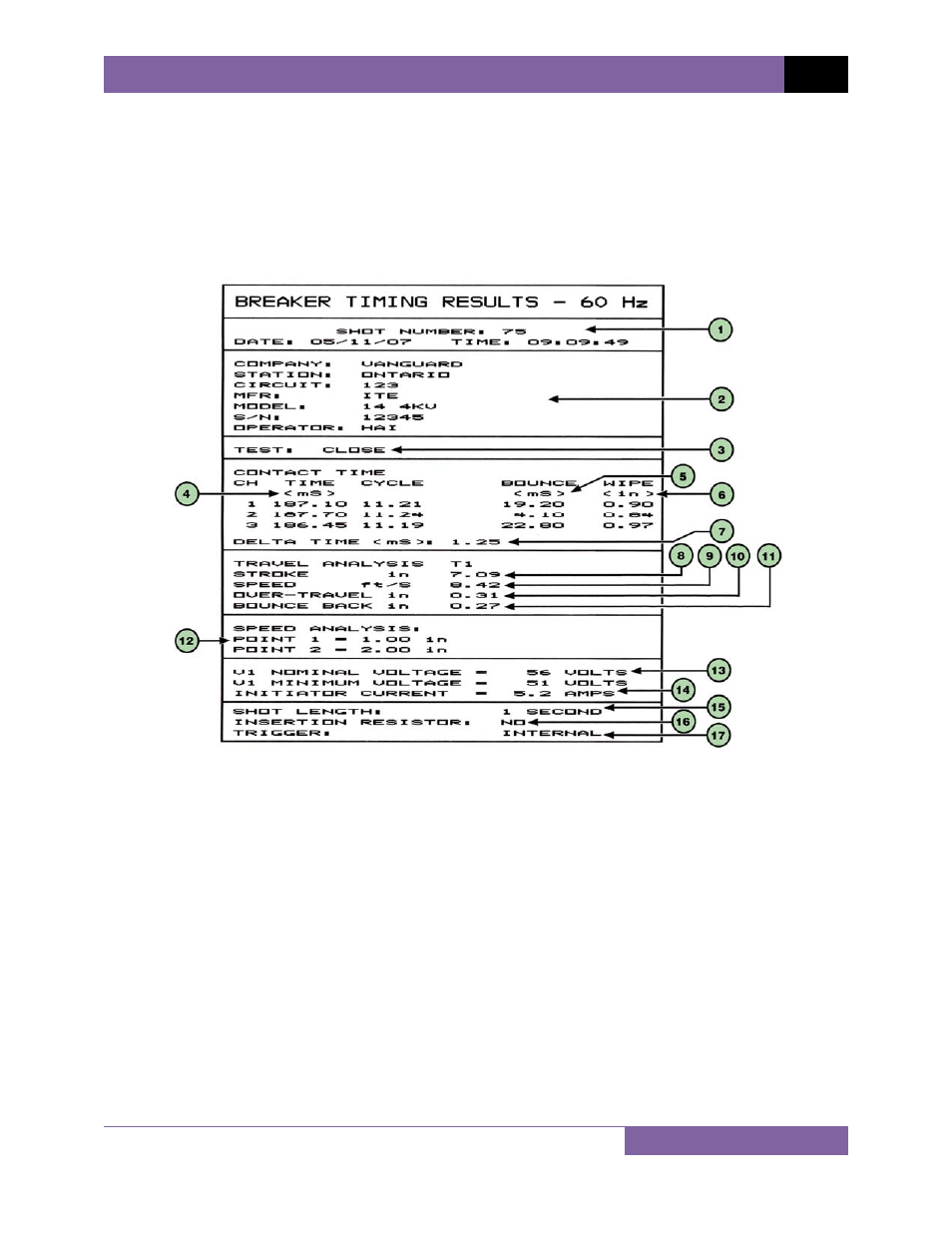

Figure 19. Typical Tabulated Test Results Printout for a CLOSE Operation
