pg.9
www.snapav.com Support: 866.838.5052
B-500-RX-230-IR Installation Manual
8. IR Pass-Through
This section outlines the connections, optional adapters, and operation of IR pass-through on the
B-500-MTRX-230 HDBaseT Receiver.
Integration with the B-500-MTRX-230 matrix switcher is
detailed. Refer to the documentation included with any transmitter used for specific instructions to
integrate IR pass-through.

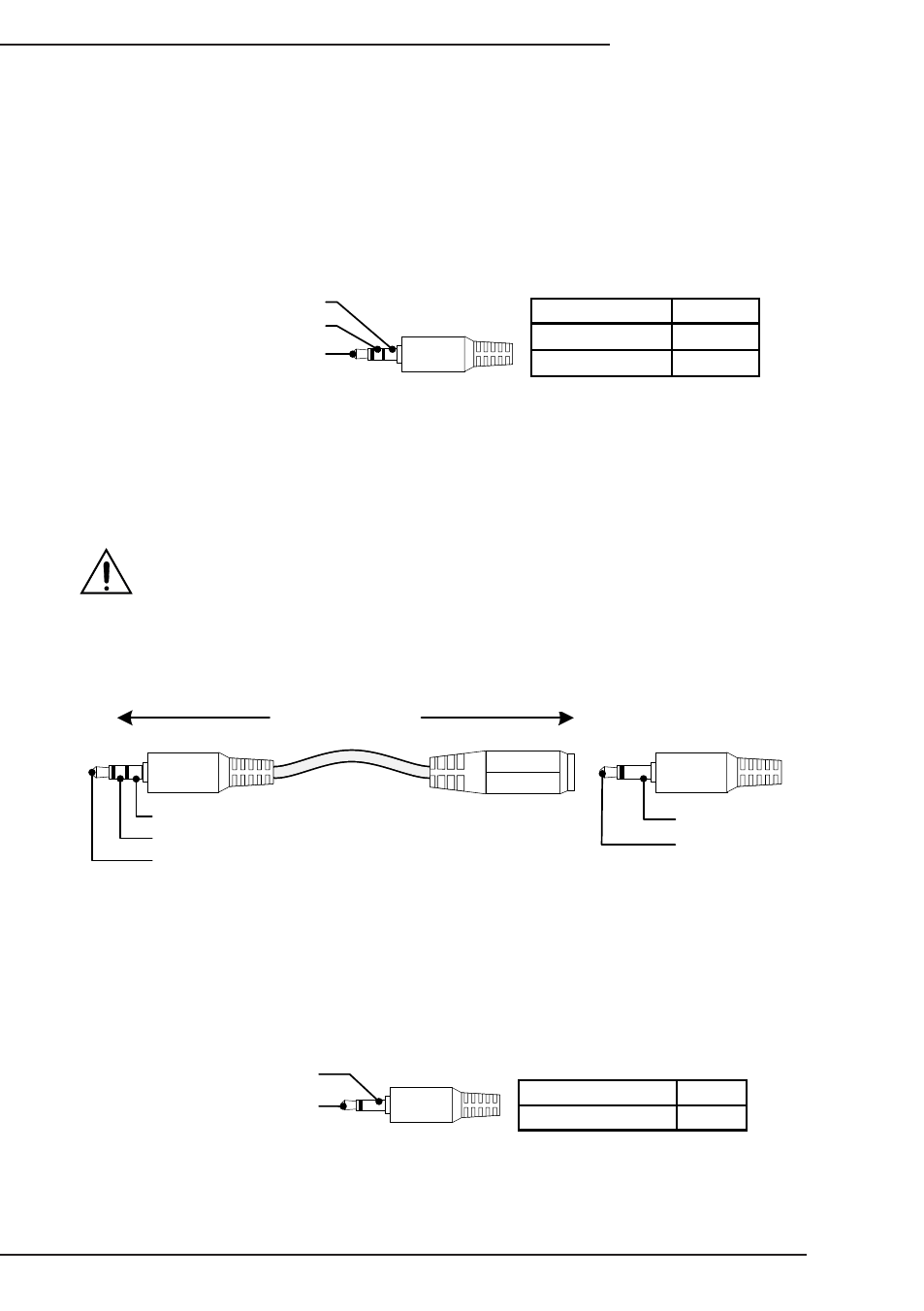

8.1. Port Pinouts
8.1.1. IR Receiver Port (3.5mm {1/8”} Stereo)
8.1.2. Yellow Tag IR Adapter
8.1.3. IR Flasher Port
IR Signal (Tip)
GND (Ring)
12V DC (Sleeve)
IR Signal Tip
GND (Ground) Ring
+12V DC Sleeve
The IR Receiver port sends IR commands over the HDBaseT Link to the IR OUTPUT TO SOURCE
and SYSTEM ALL IR OUT ports at the matrix switcher. Plug in a compatible IR receiver such as the
Episode® EE-IR-RCVR-SURFACE to capture in-room IR commands for control of the matrix switcher
and sources at the matrix switcher or Transmitter.
The included yellow tagged adapter (illustrated above) is used when plugging a 3.5mm mono mini
cable into the IR Receiver port of the B-500-RX-230-IR. This is used to send IR commands to the matrix
switcher location from other devices instead of an IR Receiver that use a 3.5mm mono mini port for
output.
The IR flasher port outputs any signal received from the IR INPUT TO ROOM port on the matrix switcher
or the IR Receiver port of a Transmitter. The port can power one single flasher, or a mono cable may be
attached to the input of a powered IR distribution block to use several flashers.
Important! Pinout configurations for IR receivers and control systems vary. Before connecting to
the IR Receiver port, review all device pinouts carefully in order to match the configuration for the
B-500-RX-230-IR.
IR Signal (Tip)
GND (Ring)
12V DC (Sleeve)
IR Signal (Tip)
GND (Sleeve)
To IR Control System or
Connecting Block
To B-500-RX-230-IR
IR Receiver Port
IR Signal (Tip)
GND (Sleeve)
IR Signal Tip
GND (Ground) Ring
