SM-RAZOR-F Installation and Users Manual

pg.7

© 2012 STRONG

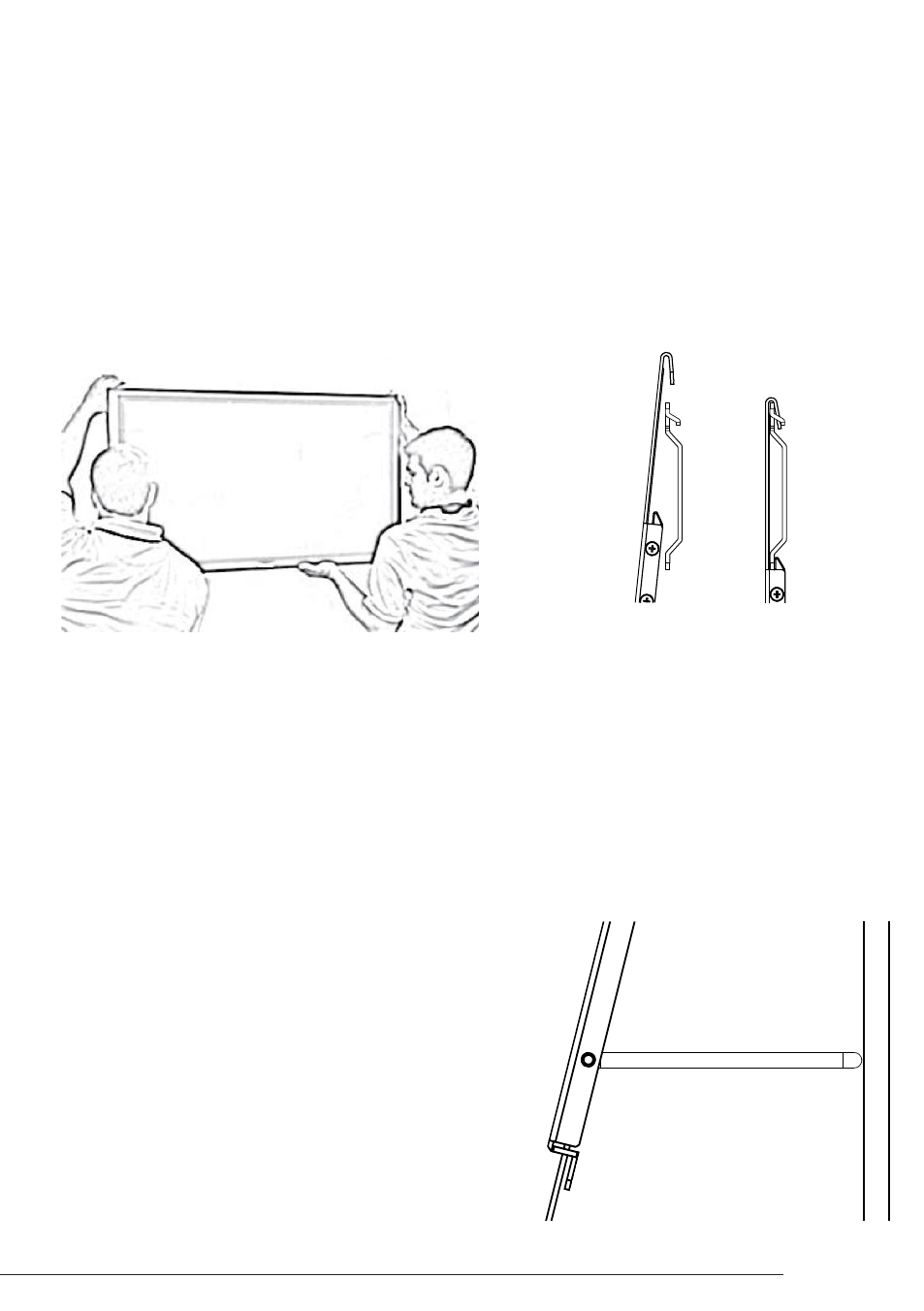

A. Carefully lift the television and place arm hooks over and onto angled lip in Wall

Plate (Figure 6). Do not release the television until it is completely connected to the

Wall Plate.

B. Gently press on the bottom of the TV to lock the arms onto the wall bracket. (Figure 7).

A. Pull down on the rings at the bottom of

the arms to release them from the wall

bracket.

B. Pull the kickstands out on each arm so that

they rest on the wall. (Figure 8).

C. When finished, collapse the kickstands to

allow the arms to lock onto the wall bracket.

The SM-RAZOR-F mounts are equipped with a Kickstand that provides space between the

TV and the wall for connecting or disconnecting cabling.

Note: These Kickstands are provided for servicing only, it is recommended that they are collapsed

and the arms locked during normal placement.

Step 3: Hang television on to the Wall Plate

Figure 6

Figure 7

Installing

Locked

WIRE MANAGEMENT KICKSTANDS

Figure 8
