pg.4

SM-RAZOR-F Installation and Users Manual

INSTALLATION

Step 1: Mounting the Wall Bracket Assembly

For Mounting on a Stud Wall

For Mounting on a Concrete Wall

WARNING: When installing wall bracket on cinder block:

A. Pre-drill holes into two wood studs using a

3/16” drill bit. Be sure to drill into the center

of the studs at least 2-1/2” deep. The use of

a stud finder is highly recommended.

B. Insert the Lag screws (A) into holes through

the Wall Plate and tighten. (Figure 1).

WARNING: Tighten bolts so that wall plate

is firmly attached, but do not over tighten.

Over tightening can damage the bolts, greatly

reducing their holding strength.

• Verify first that you have a minimum of 1-3/8” of concrete thickness to be used

for the concrete anchors.

• Do not drill into mortar joints! Be sure to mount in a solid part of the block,

generally 1”minimum from the side of the block.

• Cinder block must meet ASTM C-90 specifications.

• It is suggested that a standard electric drill on slow setting is used to drill the

hole instead of a hammer drill to avoid breaking out the back of the hole when

entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not

hold anchors.

• Make sure that the supporting surface will safely support the combined load of

the equipment and all attached hardware and components.

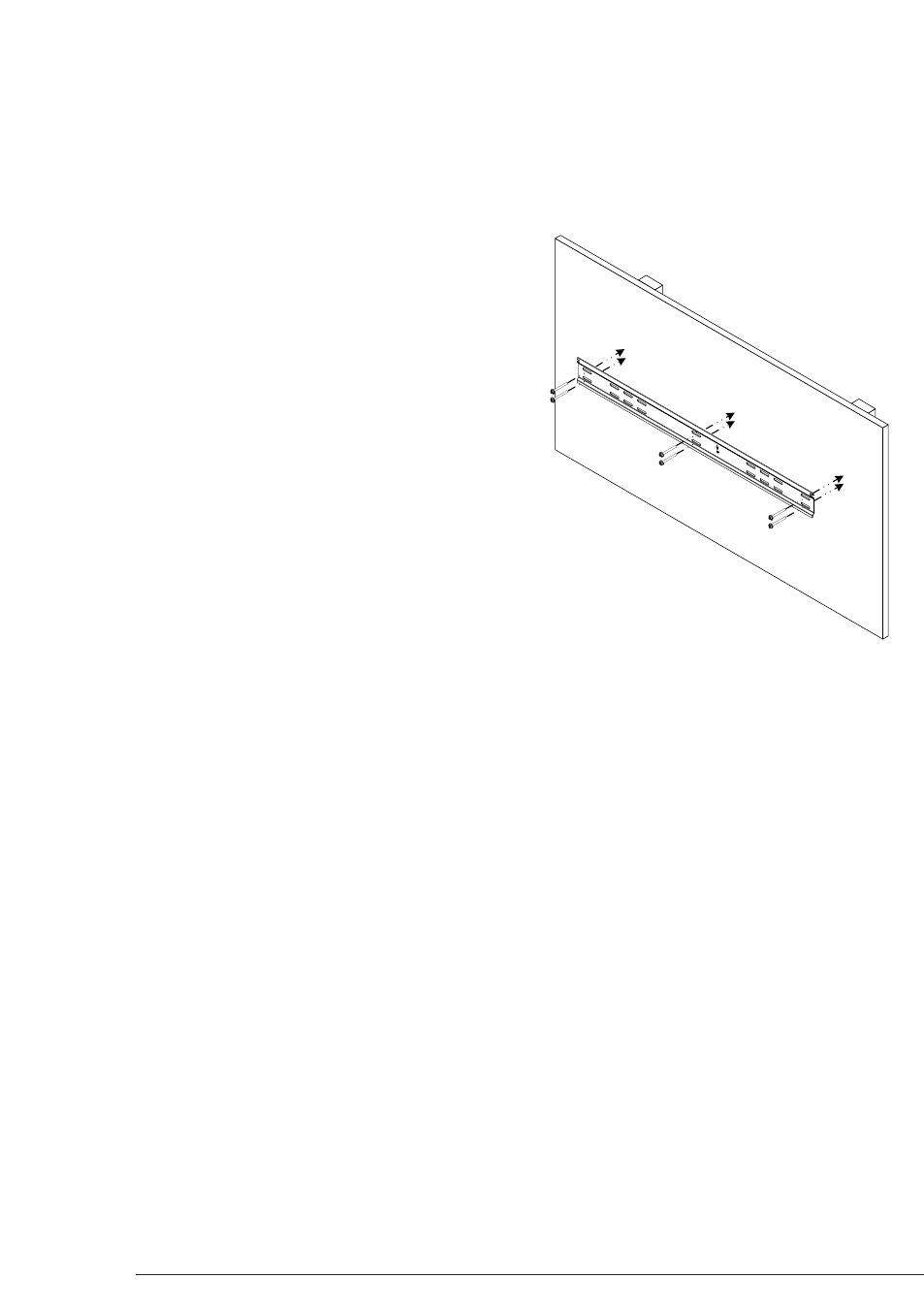

Figure 1
