pg.6

SM-RAZOR-F Installation and Users Manual

A. Determine the diameter of the screw

(parts C through P & U) your TV requires

by carefully trying to hand-thread one into

the threaded insert on the rear of the TV. If

there is any resistance, stop immediately.

B. Spacers are commonly needed on televisions

with curved backs or recessed screw

inserts. The screw will thread through the

appropriate washer (Q or R), any spacer

needed (S or T) and the arms into the TV.

C. Ensure the arms are installed flat side to

television and are square to each other after

all screws have been installed (Figure 4).

D. Slide the clip up to lengthen and down

to shorten the release string. Adjust the

height of the Arm release to be above the

bottom of the TV. (Figure 5).

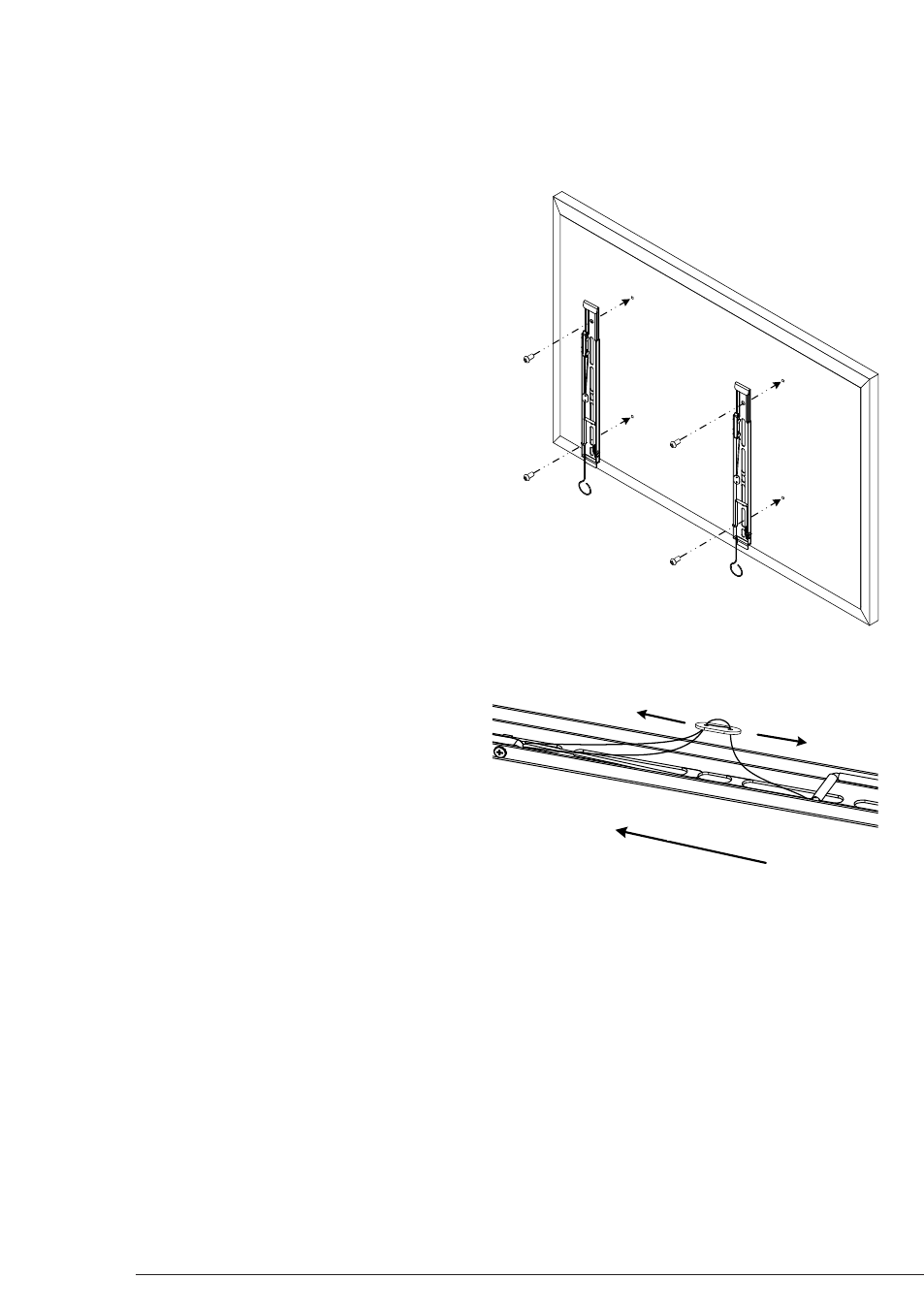

Step 2: Mount Arms to television

Figure 4

Lengthen

Shorten

Top of Arm

Figure 5
