SM-RAZOR-F Installation and Users Manual

pg.5

© 2012 STRONG

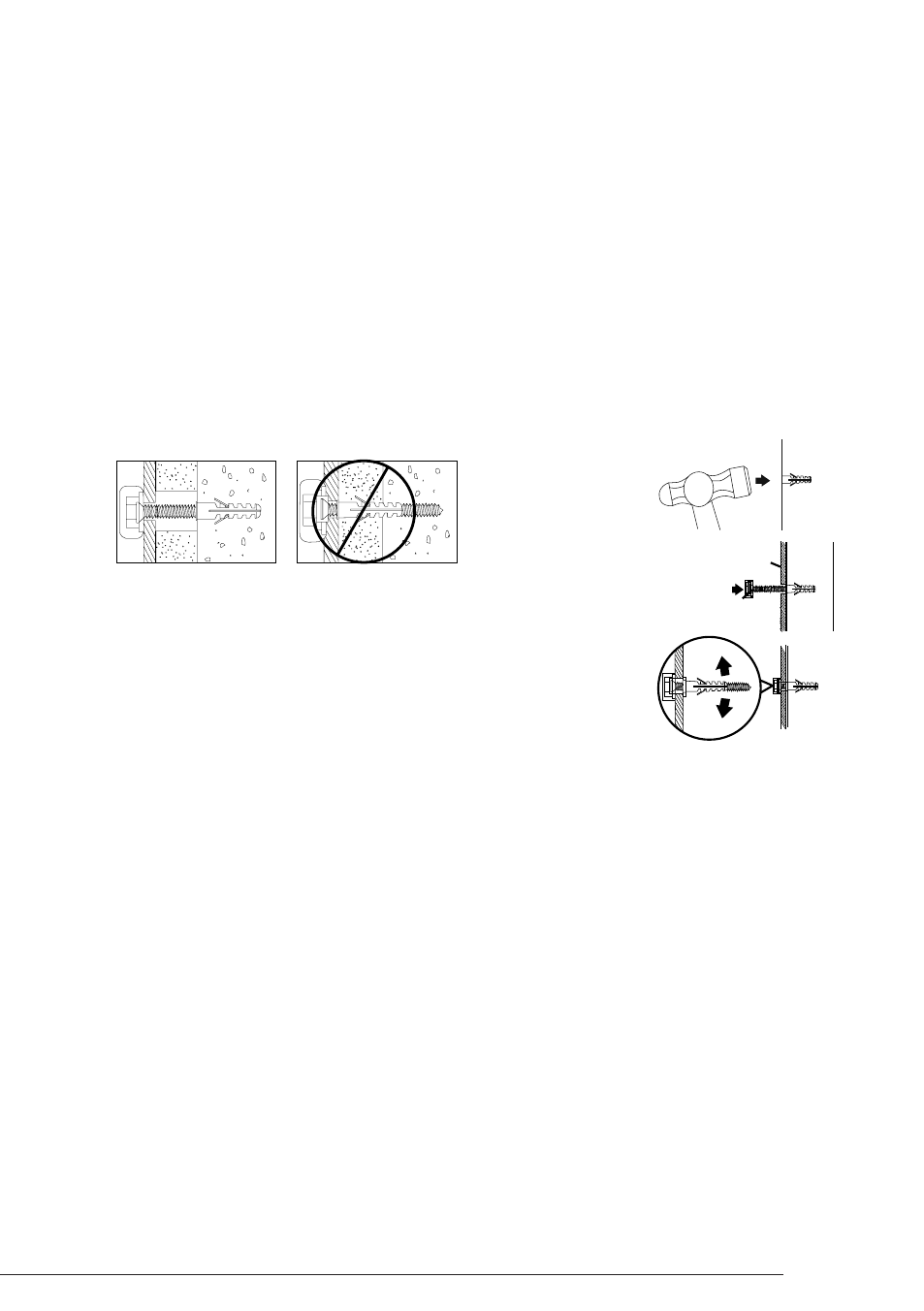

A. Pre-drill holes into concrete using 5/16” drill bits to a depth of 2 1/2”. Insert

concrete Wall Anchors (B) and tap in-with hammer, if necessary (Figures 2 & 3).

B. Insert the four Lag Screws (A) into the Wall Anchors through the Wall Plate and tighten

all bolts.

WARNING: Tighten bolts so that wall plate is firmly attached, but do not over tighten.

Over tightening can damage the bolts, greatly reducing their holding strength.

Correct

concrete

concrete

plas ter/
drywall

plaster/
drywall

Incorrect

C

u

ta

w

a

y

V

ie

w

Figure 2

Figure 2

Drill holes and

insert anchors.

Place wall arm

assembly plate

over anchor and

secure with

lag screw.

Tighten all

lag screws.

Wall Arm

Concrete
Wall

Flange Bolt

Figure 4

Figure 3
