SM-RAZOR-F Installation and Users Manual
pg.3
© 2012 STRONG

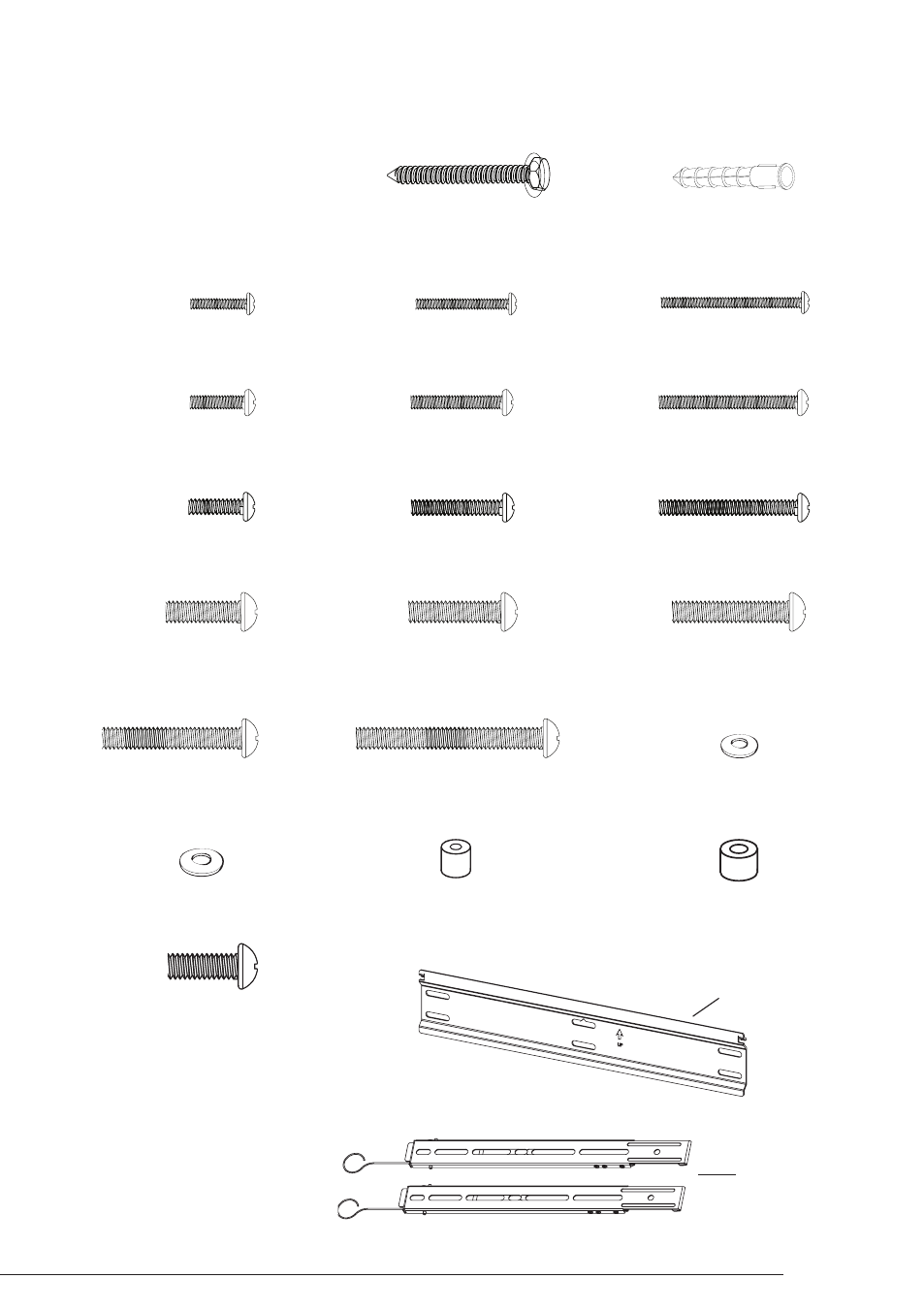

PACKAGE CONTENTS
Wall Bracket (1)
Display Brackets (2)
Hardware Pack(s)
(Q) 17.8 x 6.5 x 1.5mm
M6 Metal Washer (x8)
(A) Black Hex washer head
w/ Philips Drive
M Model (x4) L & XL Models (x6)
(C) M4 x 12mm
Philips Head Screw (x4)
(L) M8 x 16mm
Philips Head Screw (x4)
L & XL Models Only
(I) M6 x 12mm
Philips Head Screw (x4)
(F) M5 x 12mm
Philips Head Screw (x4)
(G) M5 x 20mm
Philips Head Screw (x4)
(H) M5 x 30mm
Philips Head Screw (x4)
(D) M4 x 20mm
Philips Head Screw (x4)
(M) M8 x 20mm
Philips Head Screw (x4)
M Model Only
(N) M8 x 25mm
Philips Head Screw (x4)
L & XL Models Only
(O) M8 x 30mm
Philips Head Screw (x4)
M Model Only
(P) M8 x 40mm
Philips Head Screw (x4)
L & XL Models Only
(U) M10 x 15mm
Philips Head Screw (x4)
XL Model Only
(J) M6 x 20mm
Philips Head Screw (x4)
(E) M4 x 30mm
Philips Head Screw (x4)
(K) M6 x 30mm
Philips Head Screw (x4)
(R) 20.5 x 8.5 x 2mm
M8 Metal Washer (x8)
(S) OD13 x ID6 x 12mm
Black Nylon Spacer (x4)
(T) OD17 x ID8.5 x 12mm
Black Nylon Spacer (x4)
L & XL Models Only
Wall Plate
Arms
(B) Concrete Wall Anchors
M Model (x4) L & XL Models (x6)
Scre
w
Anch
or
