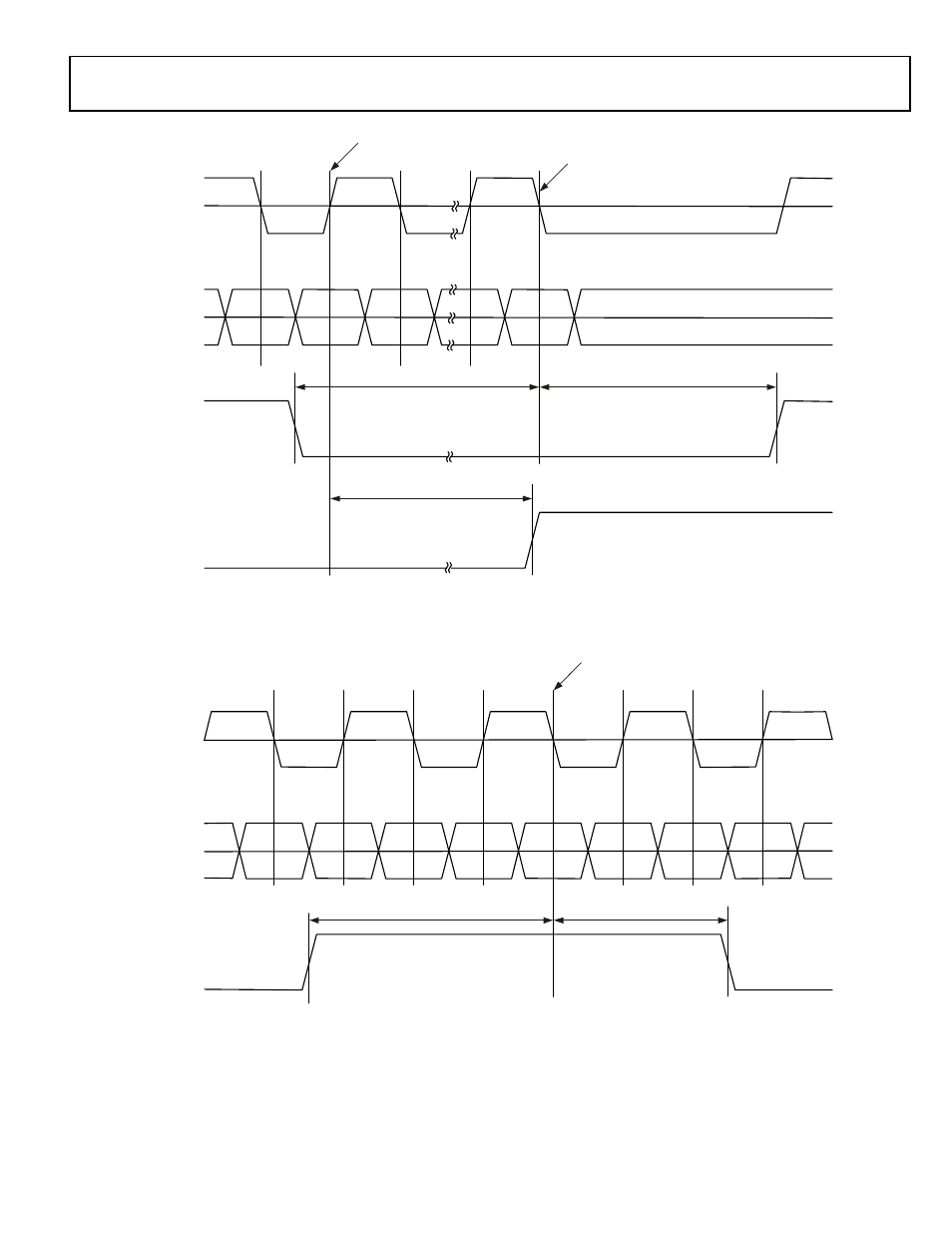

Figure 22. Link Ports—Transmission End and Stops
Figure 23. Link Ports—Back to Back Transmission
LxCLKOUT
LxDATO
V
OD
= 0V
V
OD
= 0V
FIRST EDGE OF 5TH SHORT WORD IN A QUAD WORD
t
LACKIS
t
BCMPOH
LxACKI
LxBCMPO
t
LACKIH
LAST EDGE IN A QUAD WORD
LxCLKOUT
LxDATO
V
OD
= 0V
V
OD
= 0V
t
LACKIS
LxACKI
t
LACKIH
LAST EDGE IN A QUAD WORD
