QoS

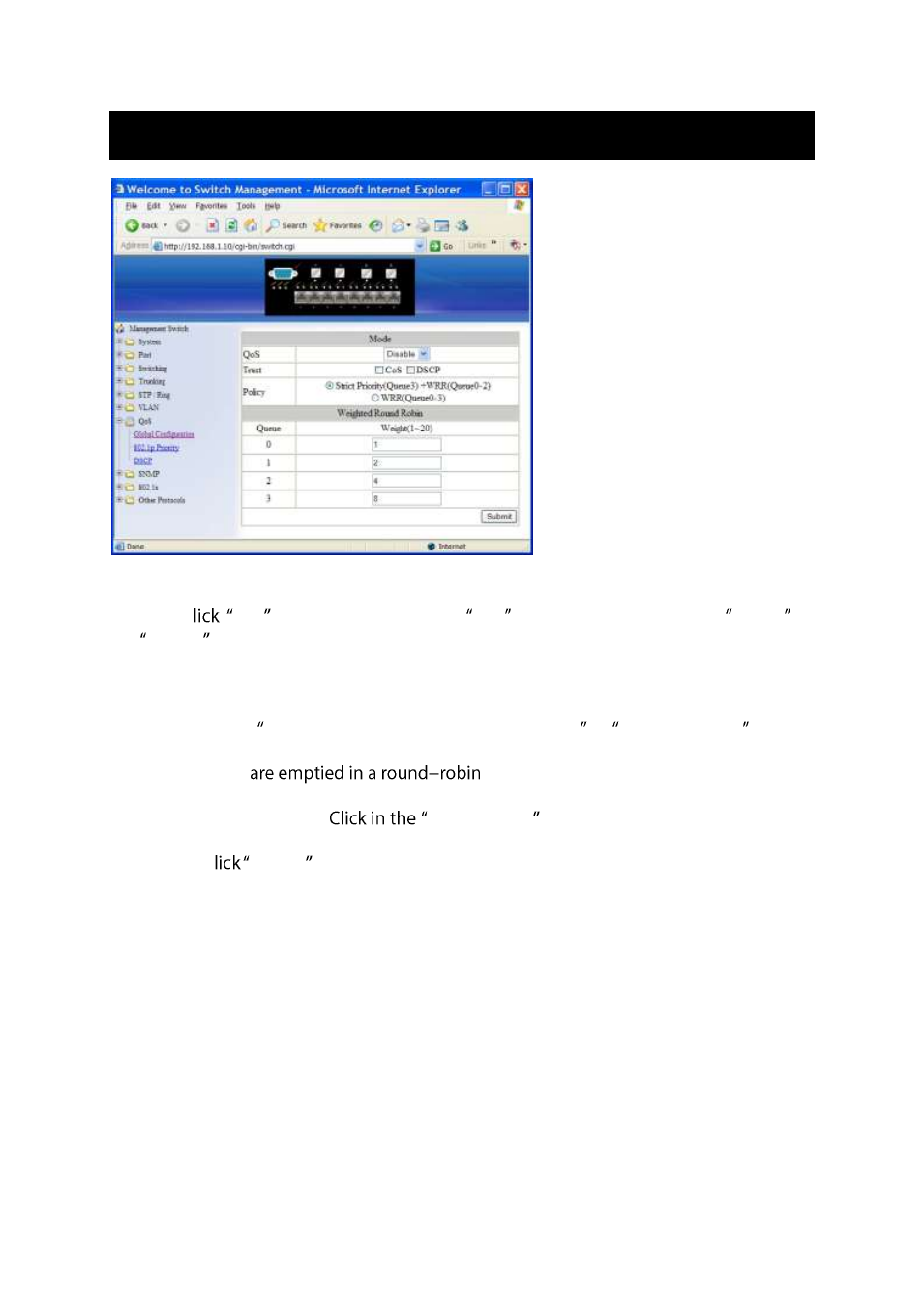

Global Configuration

1. QoS: C

QoS drop-down menu from QoS drop-down list to choose Enable or

Disable to enable or disable QoS.

2. Trust: Enable or disable the switch port to trust the CoS (Class of Service) labels of all

traffic received on that port. Enable or disable a routed port to trust the DSCP
(Differentiated Service Code Point) labels of all traffic received on that port.

3. Policy: Choose Strict Priority(Queue3) + WRR(Queue0-2) or WRR(Queue0-3) . A strict

priority queue is always emptied first. The queues that are used in the WRR (Weighted
Round Robin)

fashion, and you can configure the weight

for each queue.

4. Weighted Round Robin:

Weight(1~55) textbox and specify a new number

from 1 ~ 55 for Queue 0 ~ 3.

5. Submit: C

Submit button when you finished Global Configuration.
