802.1Q VLAN Setting

Add VLAN:

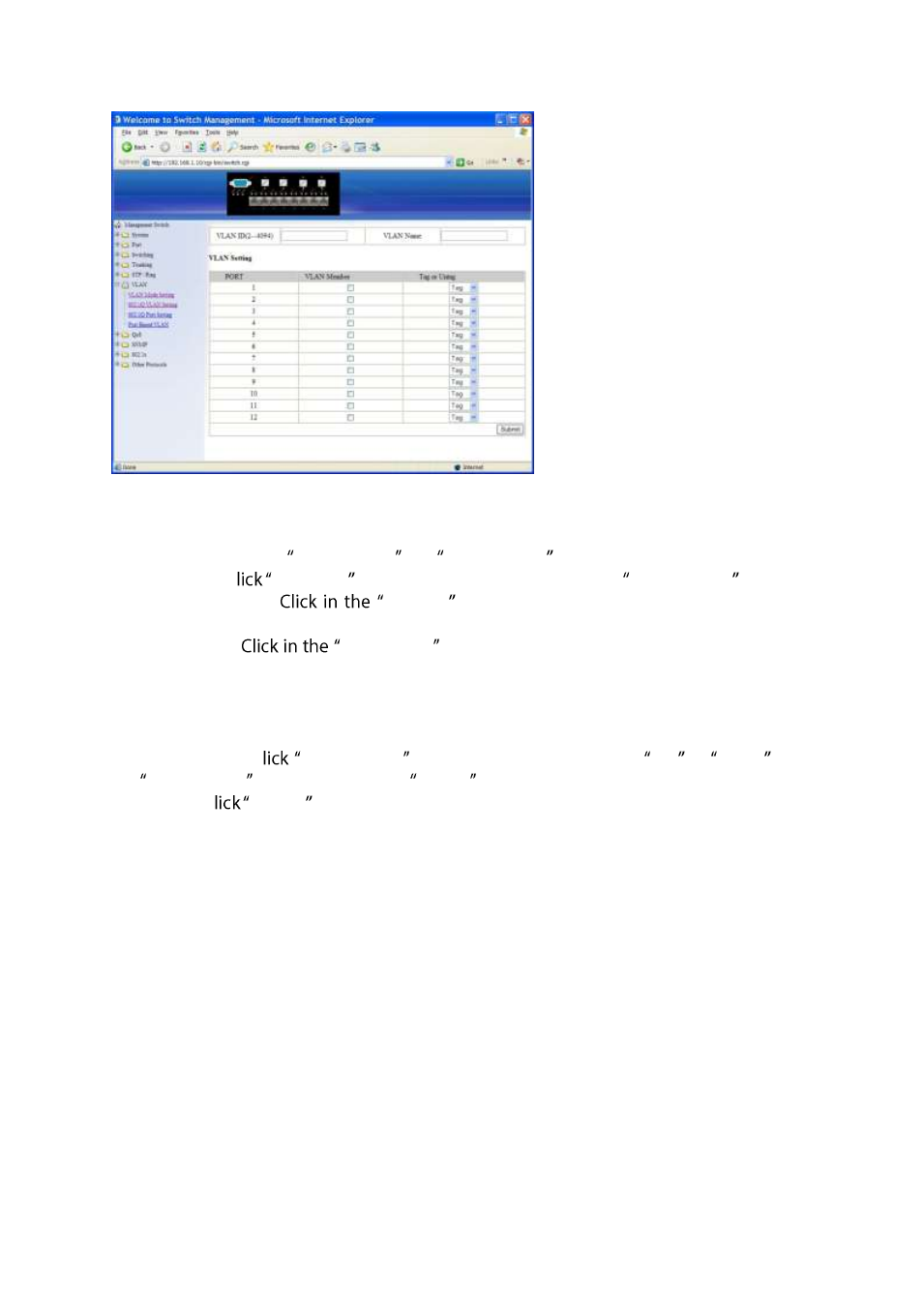

1. VLAN setting: Click VLAN setting . The VLAN Setting window appears.
2. Add VLAN: C

Add VLAN button to create a new VLAN from VLAN Setting window.

3. VLAN ID(2-4094):

VLAN ID textbox and specify a new VLAN ID number

from 2 ~ 4094.

4. VLAN Name:

VLAN Name textbox and type a name for this newly created

VLAN.


Add port to or delete port from VLAN:
1. VLAN Member: Choose the port to be added to or deleted from the VLAN.
2. Tag or Untag: C

Tag or Untag drop-down menu to Choose Tag or Untag from

Tag or Untag drop-down list for a Hybrid port.

3. Submit: C

Submit button when you finished VLAN setting.
