Mode drop-down list for the port. The port will be Tag port if you choose Trunk

Mode for the port. And the port will be Tag or Untag port if you choose Hybrid Mode
for the port.

3. PVID:

PVID textbox and specify a new PVID number for the port.

4. Update Setting: C

Update Setting button when you finished VLAN Port Setting.

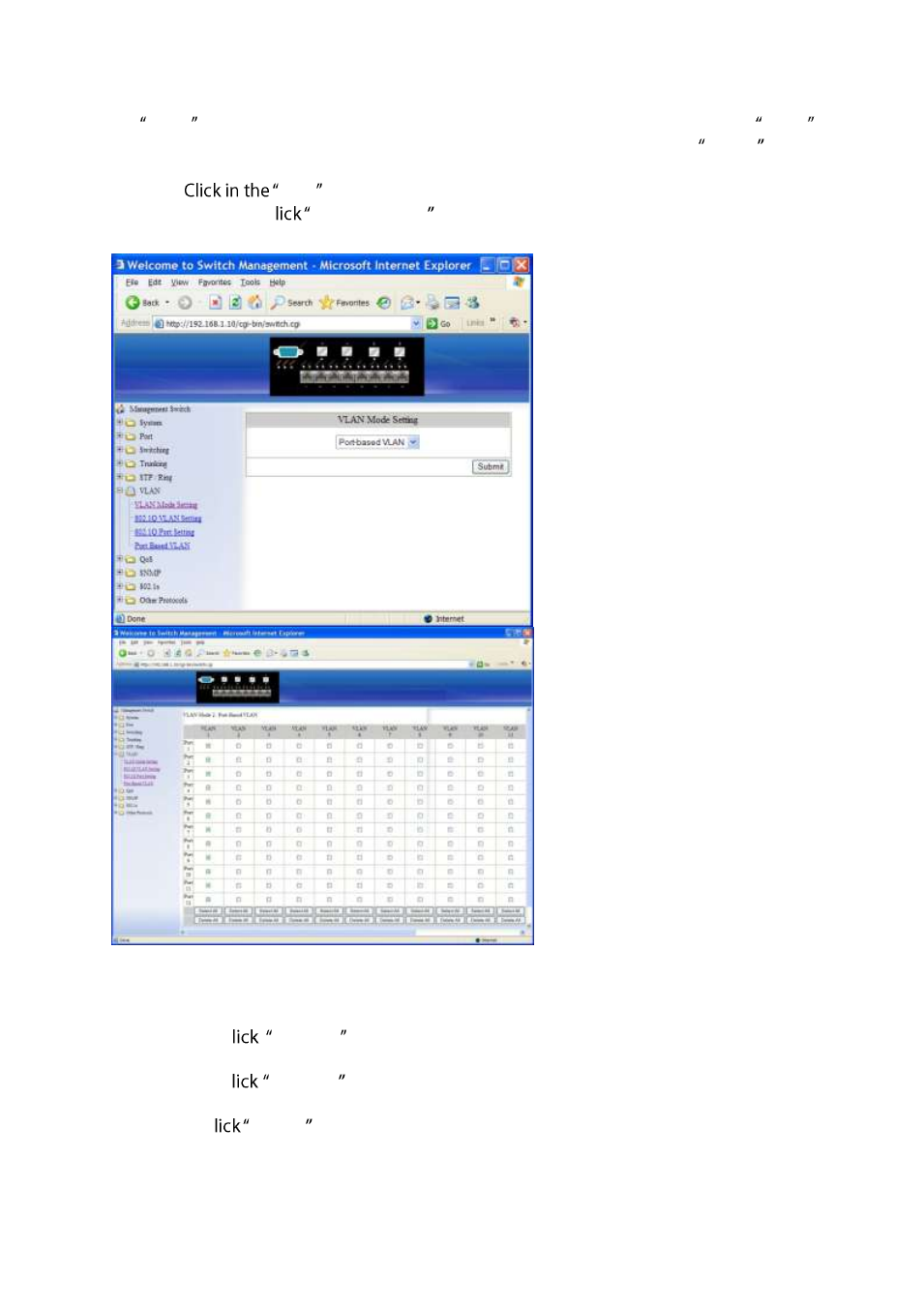

Port Based VLAN

1. VLAN: Choose the port to be added to or deleted from the VLAN.
2. Select all: C

select all button to choose Port 1 ~ Port 12 all to be added to the

VLAN.

3. Delete all: C

delete all button to choose Port 1 ~ Port 12 all to be deleted from the

VLAN.

4. Submit: C

Submit button when you finished Port Based VLAN setting.
