19

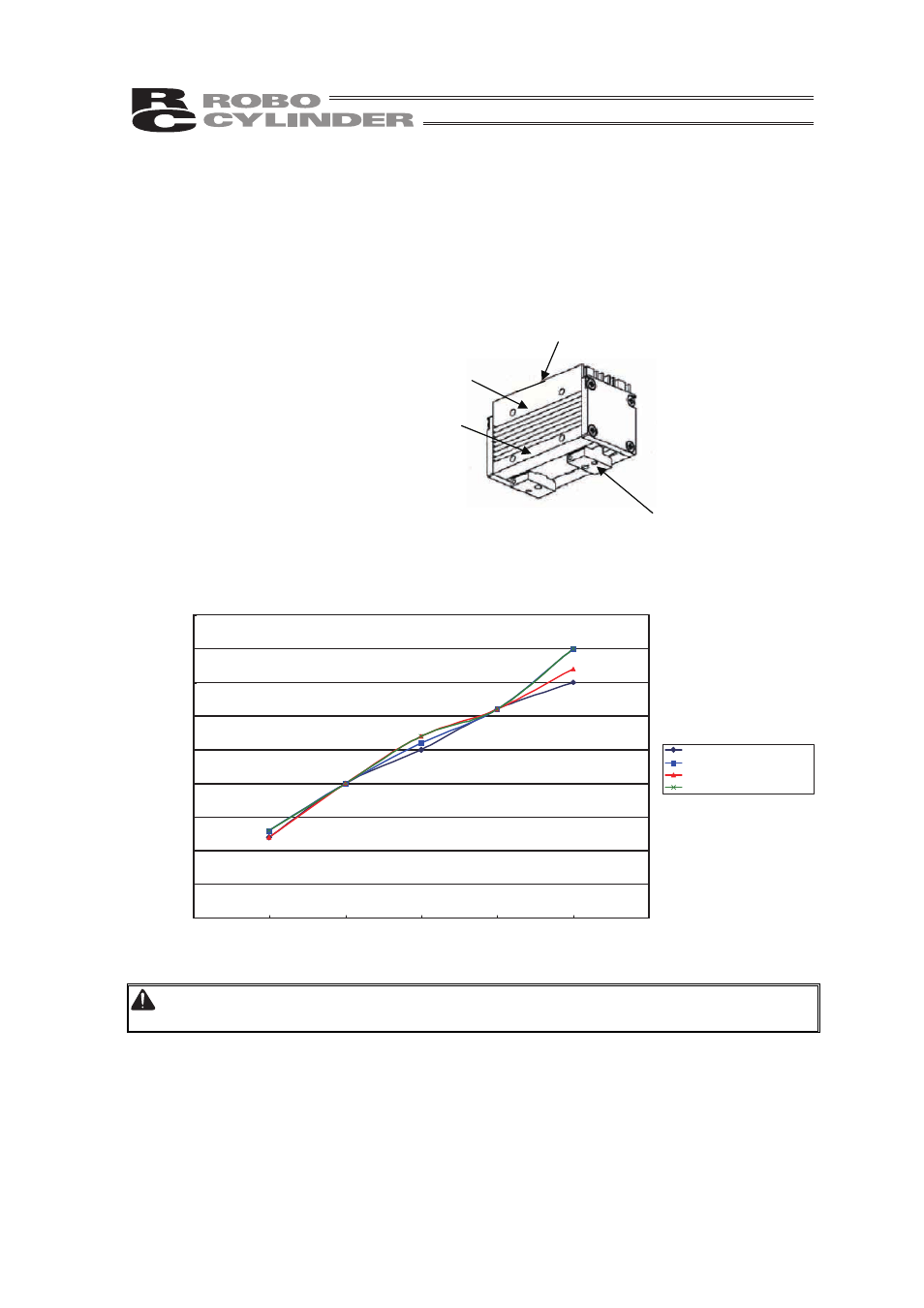

6.4 Temperature Rises on Main Body and Finger
6.4.1 Temperature Rise from Ambient Temperature (Maximum Value)
The graph below shows the temperature rise (maximum value) from the ambient temperature for
each duty.
The measured points are as shown below:
Finger
Attachment Surface
(Upper side on side surface)
Attachment Surface (Top)
Attachment Surface
(Lower side on side surface)
Reference : Temperature Rise from Ambient Temperature (Maximum Value)
Ambient temperature at measurement : Approx. 25
qC
Temperature [
° C]
45
40
35
30
25
20
15
10
5
0
0 10 20 30 40 50 60
Duty [%]
Top
Upper side on side surface
Lower side on side surface
Finger
Danger : This product generates heat. The temperature may get high depending on how it is
installed. Don't get burned or injured.
