Fig. 9 fig. 8 installed gooseneck in truck bed – Reese 30138 ELITE UNDER-BED GOOSENECK HEAD User Manual
Page 6
30127IN
– 9/10/10 REV C
PCN14106
©2010 CEQUENT PERFORMANCE PRODUCTS, INC.
Printed in CHINA
6
3.
Place the
REESE™ Elite Series Gooseneck Hitch under the truck (As shown in figure 8) using the ¾”
carriage bolts (2) slide them into place through the openings in the rail kit.
4.
Slide the gooseneck center section up around the bolts, place a washer and nut on the bolt. DO NOT
TIGHTEN THE HARDWARE AT THIS TIME.
5 . Once the
REESE™
Elite Series
Gooseneck Hitch has been loosely assembled , locate the collar in the 3 ½” hole
that was cut. See Figure 7.
6.
Once the top of the gooseneck receiver tube is located in the hole (See figure 9), then tighten the hardware to a
torque of 180 ft/lbs. It might be helpful to lower the spare tire to get extra room to swing the torque wrench.

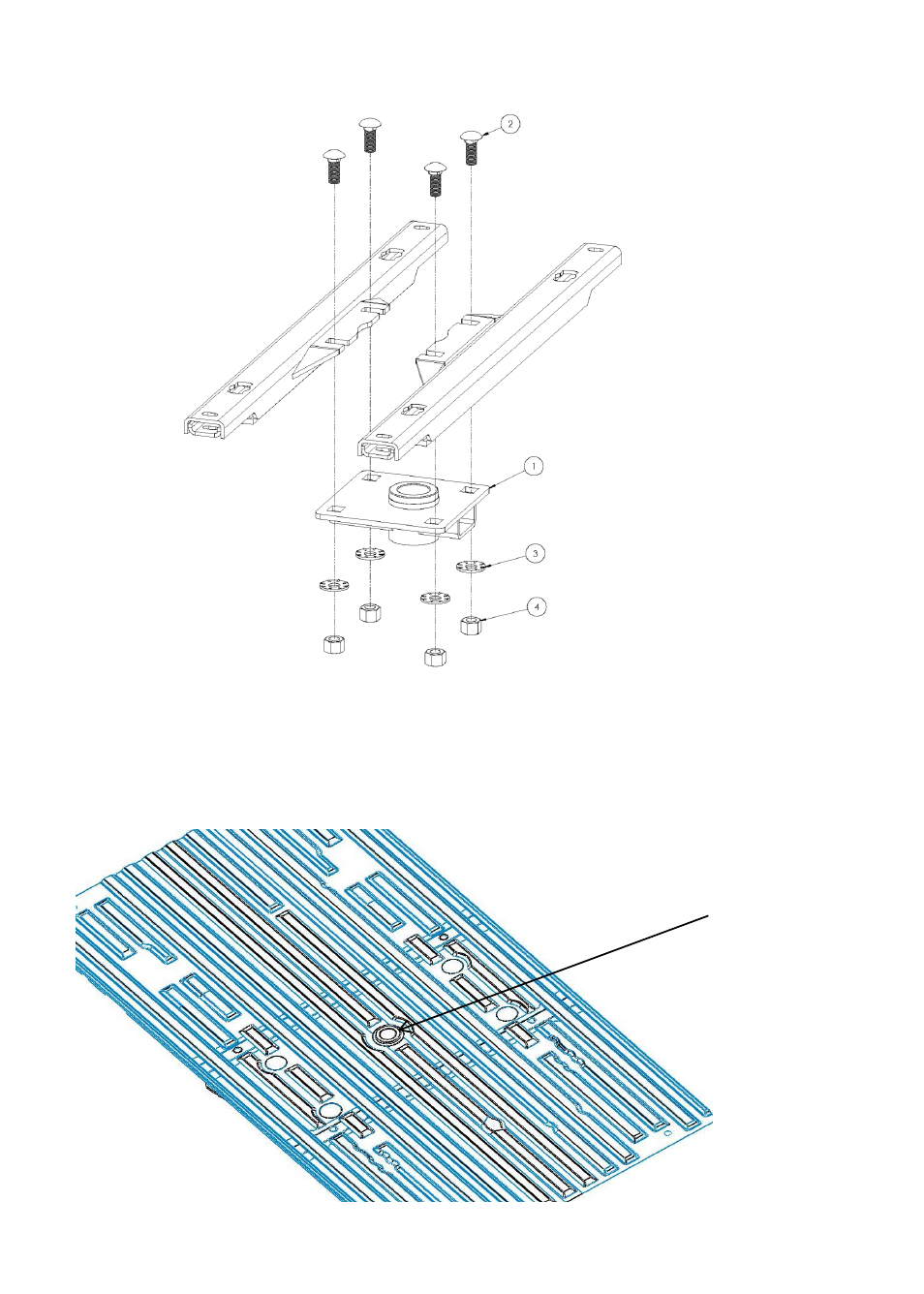

Fig. 9
Fig. 8
Installed gooseneck in truck
bed.
