Reese™ elite series – Reese 30138 ELITE UNDER-BED GOOSENECK HEAD User Manual
Page 5
30127IN
– 9/10/10 REV C
PCN14106
©2010 CEQUENT PERFORMANCE PRODUCTS, INC.
Printed in CHINA
5
REESE™ Elite Series
GOOSENECK ASSEMBLY
TOOLS
Safety Glasses
3 ½” Hole Saw
Impact Wrench
Torque Wrench
1-
1/8” Box or End Wrenches or socket
1.
Check all the boxes for all the components listed in
Figure 1
and become familiar with component terminology.
2.
Locate the “dimple” in the depression in the middle of the truck bed. Using the 3 ½” hole saw, cut a hole in the
location shown in Figure 7 below. If there are no dimples in your bed, measure from the rear of the bed forward
46-
3/8”. Find the center of the bed by measuring between the fender wells or a weld seam that is visible on both
sides of the bed. Drill a 3-
1/2” hole at this location.

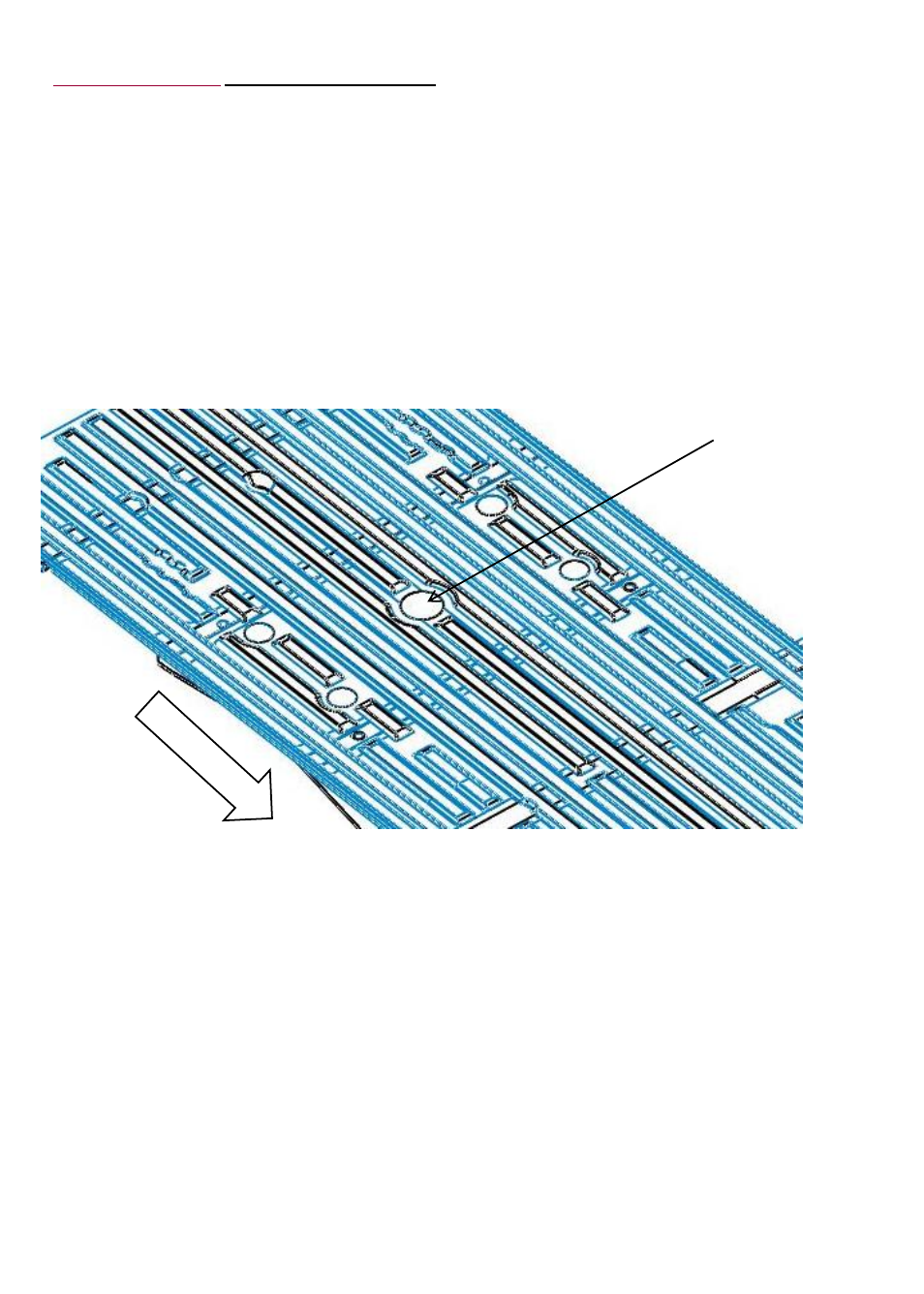

Fig. 8
Vehicle Front
Drill 3 ½” hole in this location
Fig 7
