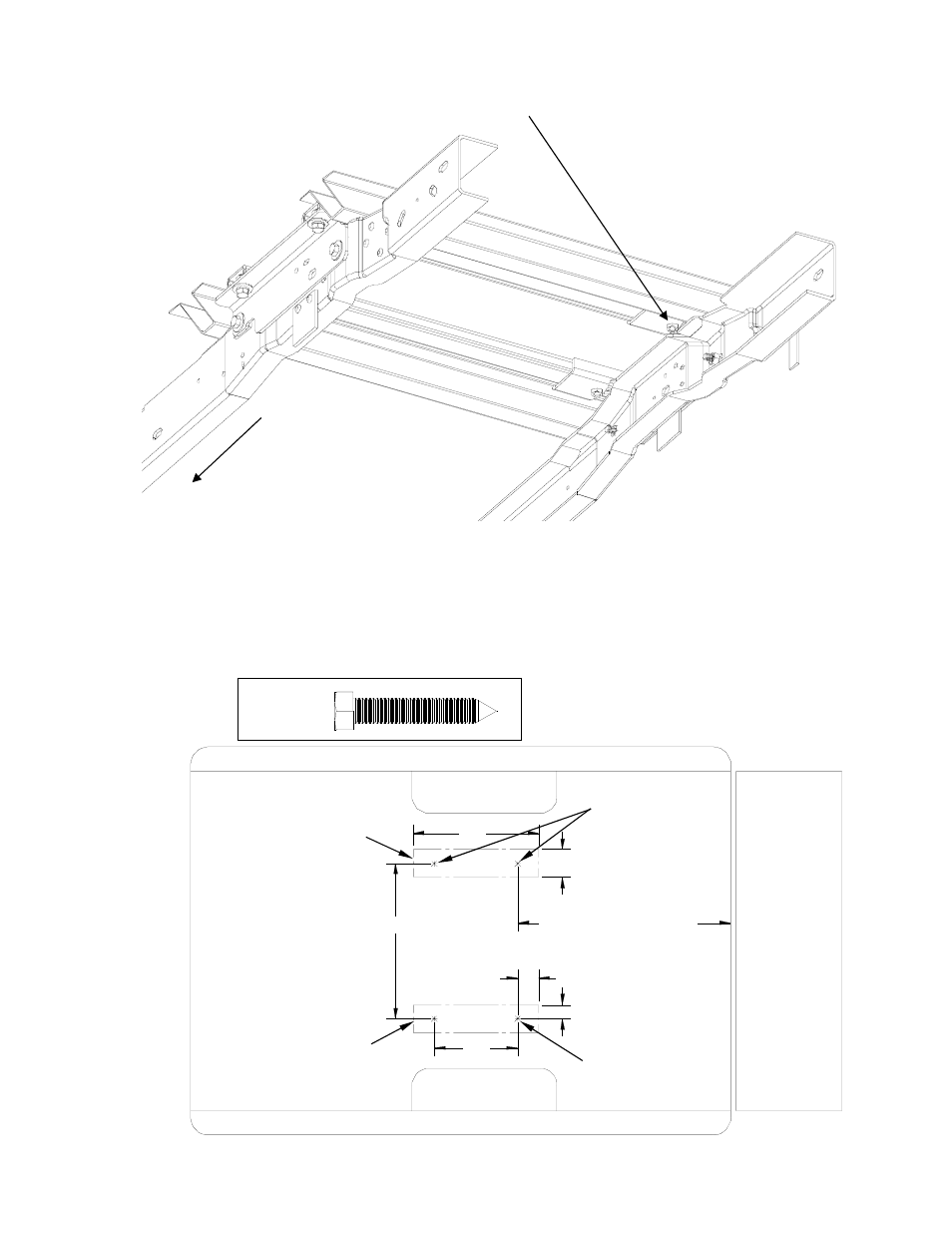

14. Using pointed bolt ( Figure 19 ), screw pointed bolt in to the nut that is welded to the rail assembly until a prick mark
is clearly visible on the truck bed ( Figure 18 ). If access to a welded nut is obstructed by chassis components, a
fourth prick mark should be made on the bed based upon measuring from the other prick marks ( Figure 20 ). If a
plastic bed liner is used cut 19” X 4” slots in the liner measured from prick marks in truck bed. If the Signature Series
slider fifth wheel assembly is used, then see fifth wheel slider assembly instructions for slot cut dimensions.
30"
2"
3"
19"
4"
13"
**Measure distance for
cutting plastic bed liner.
Figure 20
Prick mark
Cut bed liner
Cut bed liner
Prick mark
Truck Bed
Tailgate
Figure 19
Figure 18
Front of
vehicle
Thread pointed bolt through welded nuts
4 places
