INSTALLATION INSTRUCTIONS
MOUNTING KIT
FORD F250/F350/F450
LD/HD/SD
6’ & 8’ Beds
For Customer Support
Call 1-800-632-3290
(1) Provide this Manual to end user.
(2) Physically demonstrate procedures in this Manual to end user.
(3) Have end user demonstrate that he/she understands procedures.
(1) Read and follow this Manual every time you use Hitch.
(2) Save this Manual for future reference.
(3) Pass on copies of Manual to any other user or owner of Hitch.
DEALER/INSTALLER:
END USER:

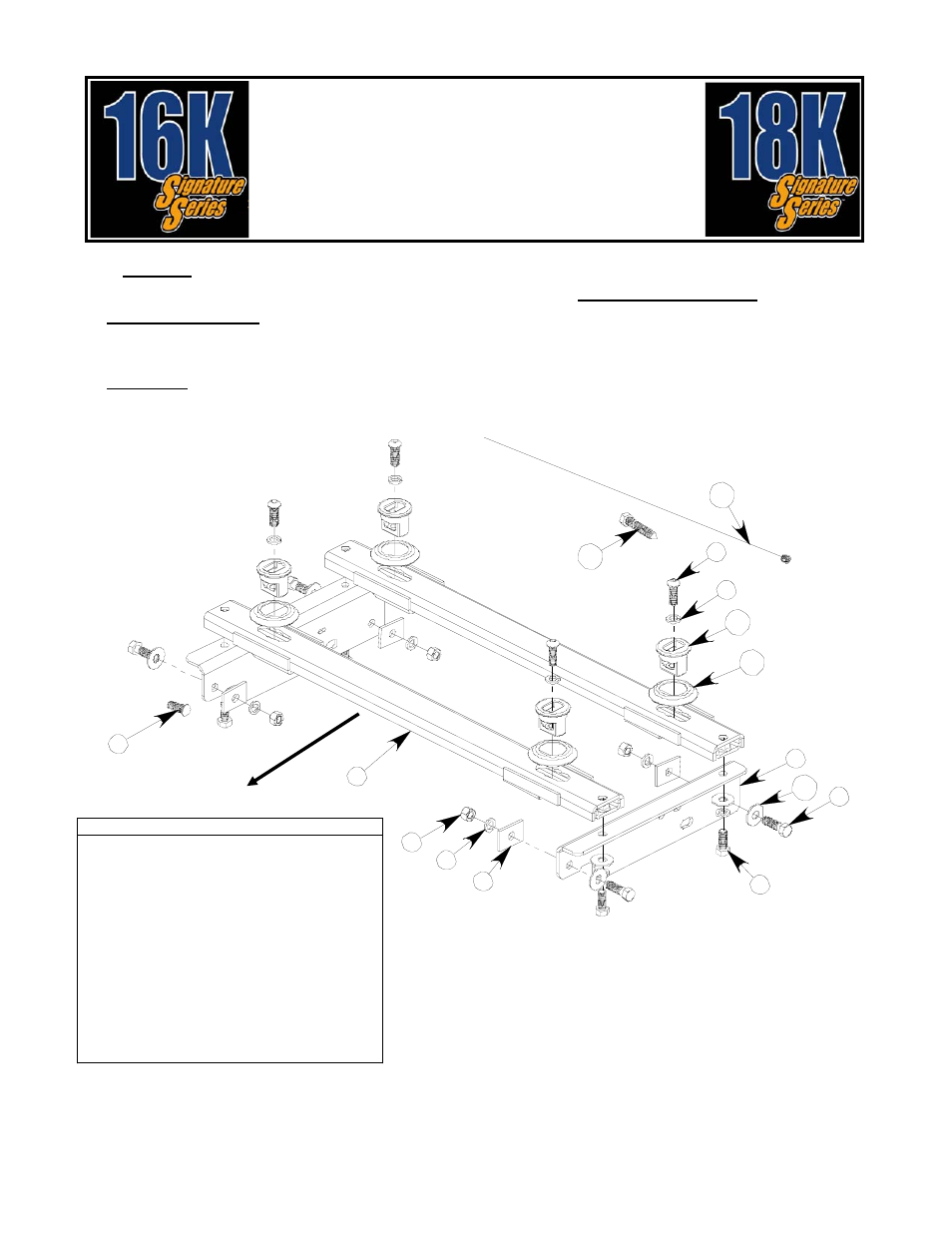

Figure 1
Front of
vehicle
PART
QTY.
1. BASE RAIL
(2)
2. FRAME BRACKET
(2)
3. 5/8-11 BUTTON HEAD SCREW
(4)
4. 5/8-11 GR8 BOLT 1 1/2" LONG
(4)
5. 5/8-11 GR8 BOLT 2" LONG*
(3,4)
6. 5/8-11 GR8 KNURL BOLT*
(1)
7. 5/8-11 GR8 NUT
(4)
8. 5/8 LOCK WASHER
(12)
9. SPACER*
(3,4)
10. TRIM RING
(4)
11. PUCK
(4)
12. 5/8 FLAT WASHER
(8)
13. 5/8-11 PULL WIRE*
(2)
14. 5/8-11 X 3 1/2" WITH POINT
(1)
* FOR 2005 SUPER DUTY KNURL BOLT AND PULL WIRE
REPLACE ONE EACH OF BOLT AND SPACER
DO NOT EXCEED VEHICLE MANUFACTURER’S RATING FOR 5th WHEEL TOWING
OR MAXIMUM GROSS TRAILER WEIGHT OF
18,000lb. / 8160kg.
