Reese 30067 RAIL KIT User Manual

Includes hd / 6’ & 8’ beds, Front of vehicle

background image

DEALER/INSTALLER:

(1) Provide this Manual to end user.

END USER:

(1) Save this Manual for future reference.
(2) Pass on copies of Manual to any other user or owner of Hitch.

INSTALLATION INSTRUCTIONS

MOUNTING KIT

DODGE ’02-CURRENT 1500,

’03-CURRENT 2500/3500

INCLUDES HD / 6’ & 8’ BEDS

Front of

Vehicle

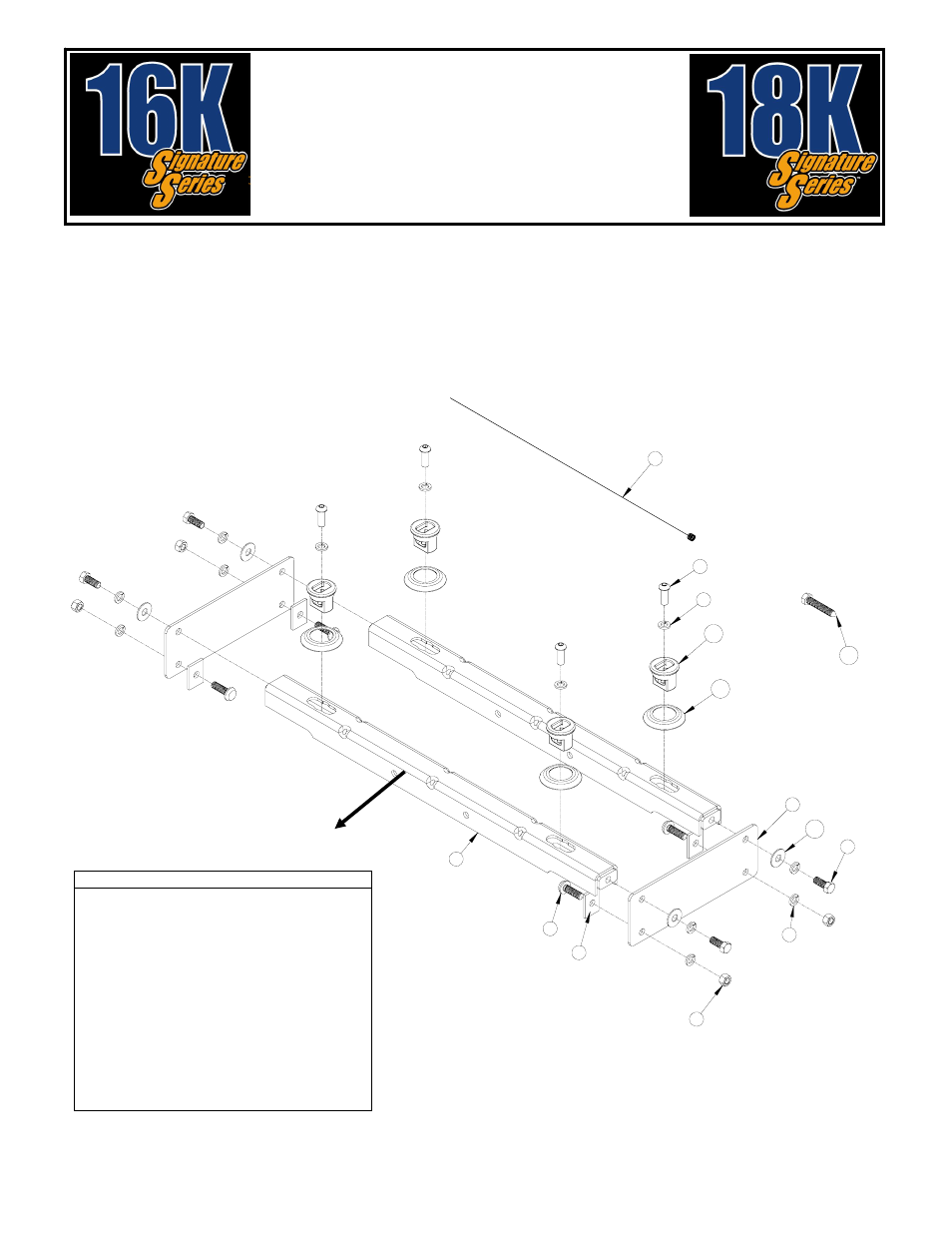

Figure 1

For Installation Assistance or Technical Help, Call 1-800-758-0869

PART

QTY.

1.

BASE RAIL

(2)

2.

FRAME BRACKET

(2)

3.

5/8-11 BUTTON HEAD SCREW

(4)

4.

5/8-11 GR8 BOLT 1 1/2" LONG

(4)

5.

5/8-11 GR8 KNURL BOLT

(4)

6.

5/8-11 GR8 NUT

(4)

7.

5/8 LOCK WASHER

(12)

8.

SPACER

(4)

9.

PULL WIRE

(1)

10. PUCK

(4)

11. TRIM RING

(4)

12. 5/8 FLAT WASHER

(4)

13. 5/8-11 X 3 1/2" WITH POINT

(1)

3

10

11

2

4

5

7

6

1

8

7

12

9

13

30067IN –08DEC05C

PCN8405

©2005 CEQUENT TOWING PRODUCTS, INC.

Litho in USA
