Fig. 9, Signature series, Fig. 8 – Reese 30845 25K ELITE SERIES GOOSENECK User Manual
Page 5
30845IN
– 31OCT12D PCN18116 ©2005, 2012 CEQUENT PERFORMANCE PRODUCTS, INC. Litho in USA
5
For Kits 30845, 40845 & 50845
Fig. 9
1” Jam Nut
Anchor
Bushing
1” Jam Nut
1” Jam Nut
Anchor
Bushing
1” Jam Nut
Signature Series
Gooseneck Hitch
Tab Washer
Tab Washer
Tab Washer
Tab Washer
Signature Series
GOOSENECK ASSEMBLY
TOOLS
Safety Glasses
Chisel
Impact Wrench
Hammer
1-
1/2” Box or End Wrenches or socket
White Lithium Grease
1. Check all the boxes for all the components
listed in
Figure 1
and become familiar with
component terminology.
2. Lube all 4 Anchor Bushing with white
lithium grease. Do this by spraying or
manually applying the grease to the inside
of the Anchor Bushing. See Figure 8.
3. Loosely assemble the four anchor bushings to the base of the
Signature Series
Gooseneck Hitch using the 1” jam nuts
and tab washers.
See Figure 9.

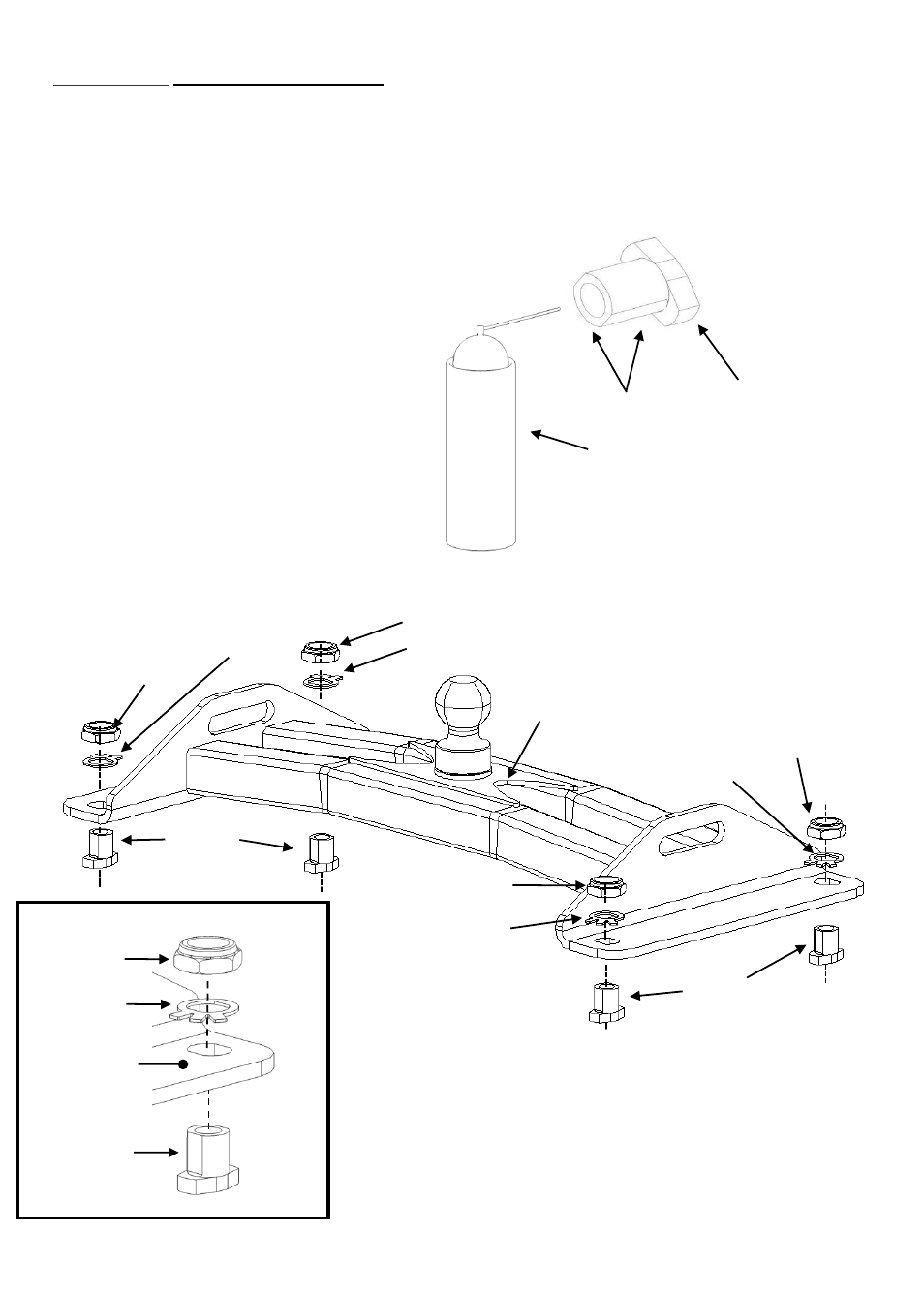

Lube Locations
Fig. 8
Anchor Bushing
White Lithium Grease
1” Jam Nut
Tab Washer
Anchor
Bushing
Base of
Gooseneck
Hitch
