Reese 26002 DUAL CAM HP - Manual (Page 4)

© 2010 Cequent Performance Products, Inc.
Sheet 4 of 30 26002IN 09/03/13 Rev. N

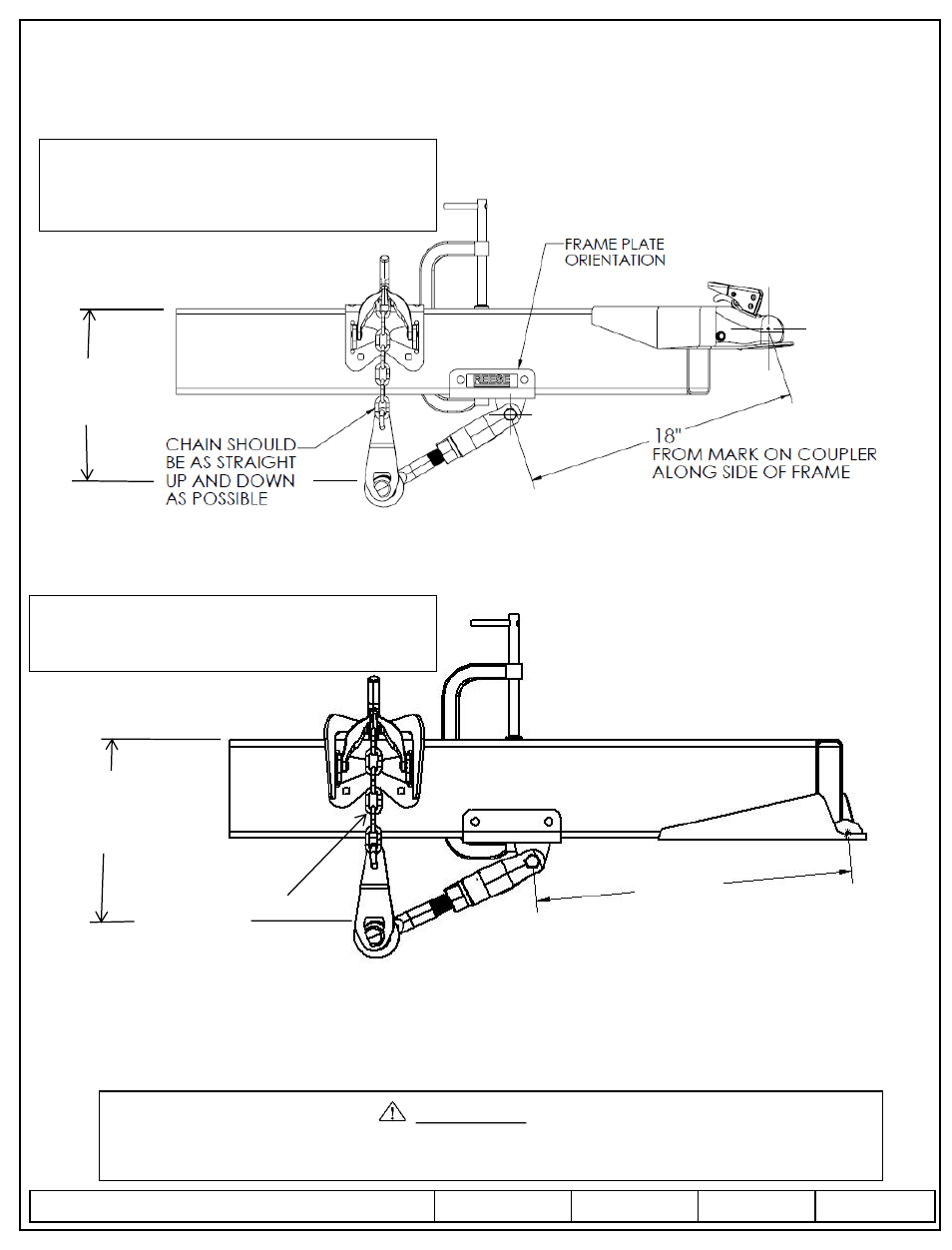

Figure 7 – Cam Arm Approximate Location for Round Bar Weight Distribution kits
Round Bar Set Up Locations
(Standard Coupler)
The Measurements in figures 6, 6A, 7 & 7A are guidelines, adjustment of the cam arm length via the adjustment nut (Figure 5)
may be required after hookup in later instructions of this manual Cequent Performance Products, Inc. is not responsible for
damage incurred due to disregarding any part of this manual.
CAUTION:
If you have a bottom mounted coupler it may be necessary for you to tilt the ball mount as far forward
towards the front of the tow vehicle as possible.
19-1/8”
Round Bar Set up Locations
(Bottom Mounted Coupler)
FROM MARK ON COUPLER
ALONG SIDE OF FRAME
Figure 7A – Cam Arm Approximate Location for Round Bar Weight Distribution kits
REESE Dual Cam HP
High-Performance Sway Control
Installation Instructions
CHAIN SHOULD
BE AS STRAIGHT
UP AND DOWN
AS POSSIBLE
Approximate desired
working range on a 6” tall
frame.
12”-13”
Approximate desired
working range on a 6” tall
frame.
12”-13”
