PC-Gentec-

EO User’s Manual Revision 5.0

5.4.2

Averaging Display Options Panel

The options panel for the Averaging display allows to control the number of digits and to change the
averaging period (the period of one bar on the graph). Whatever the period entered, the total number of

bars (once the screen is filled) is 50. To refresh the screen and accumulate new data, use the Refresh

button directly in the graphic panel.

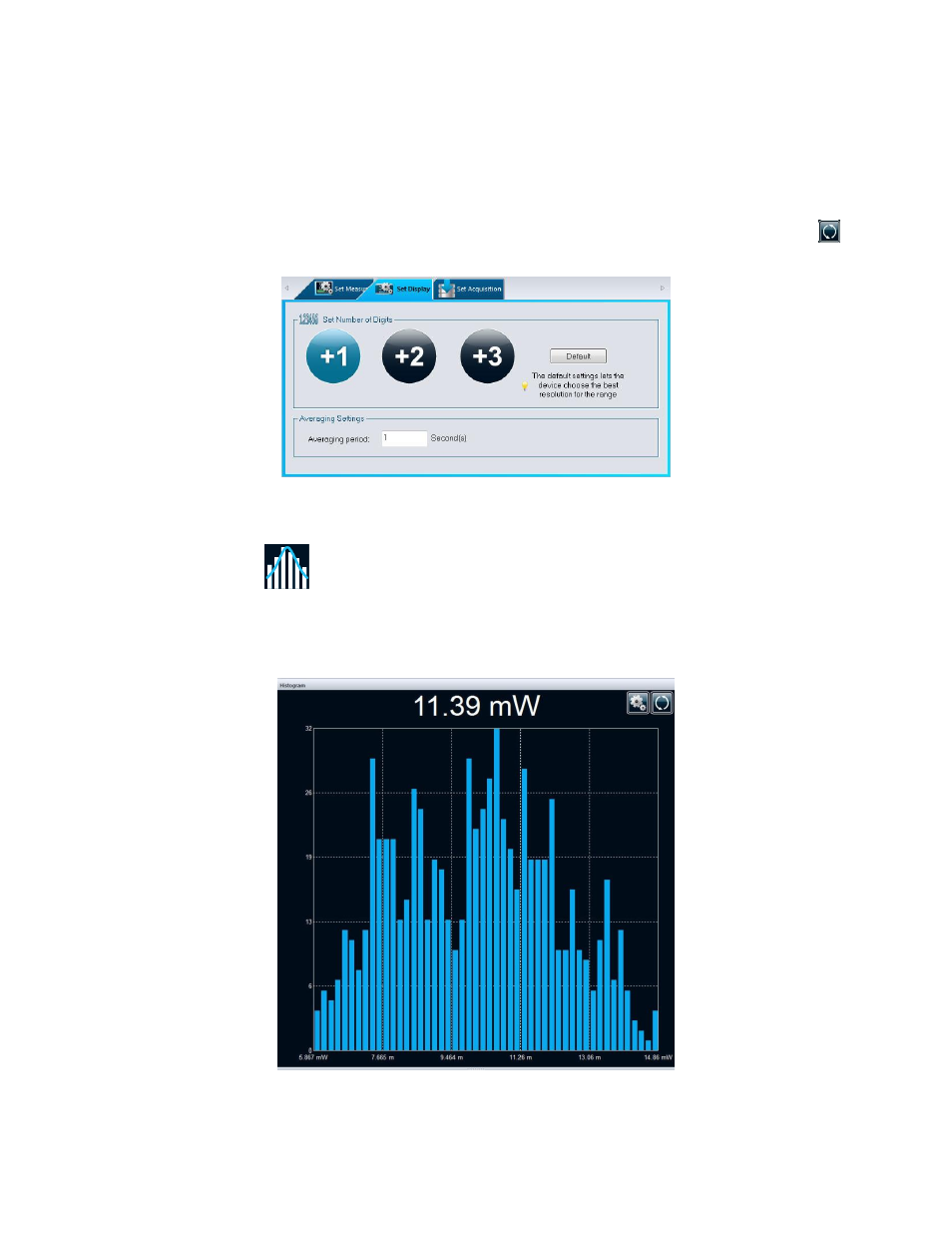

Fig. 5-12 Averaging display option panel

5.5 Histogram

5.5.1

Histogram Display Graph

This is a simple way to see in real time the power or energy distribution of a signal.

Fig. 5-13 Histogram display
