A.A.R. Combination Railroad Track / MTS Scale
NOTE: This manual is intended to compliment and be used in conjunction with the Certified
Prints provided by FAIRBANKS SCALES. Installation should be attempted only with the pres-
ence and guidance of experienced personnel who are fully familiar with the assembly of these
scales. Please read this Bulletin in its entirety BEFORE setting scale hardware.
SECTION 1-A: Introduction & General Description:
The 2000 Series Rocker Column Railroad Track Scale is a factory assembled, fully electronic
scale available in single 12' 6" long, and double 25' long welded steel modules. The 2000
Series is designed for above ground or shallow pit installation, and is configured to accept a
115# ARR rail. The scale can be configured to accept other sizes of rail as a special order.

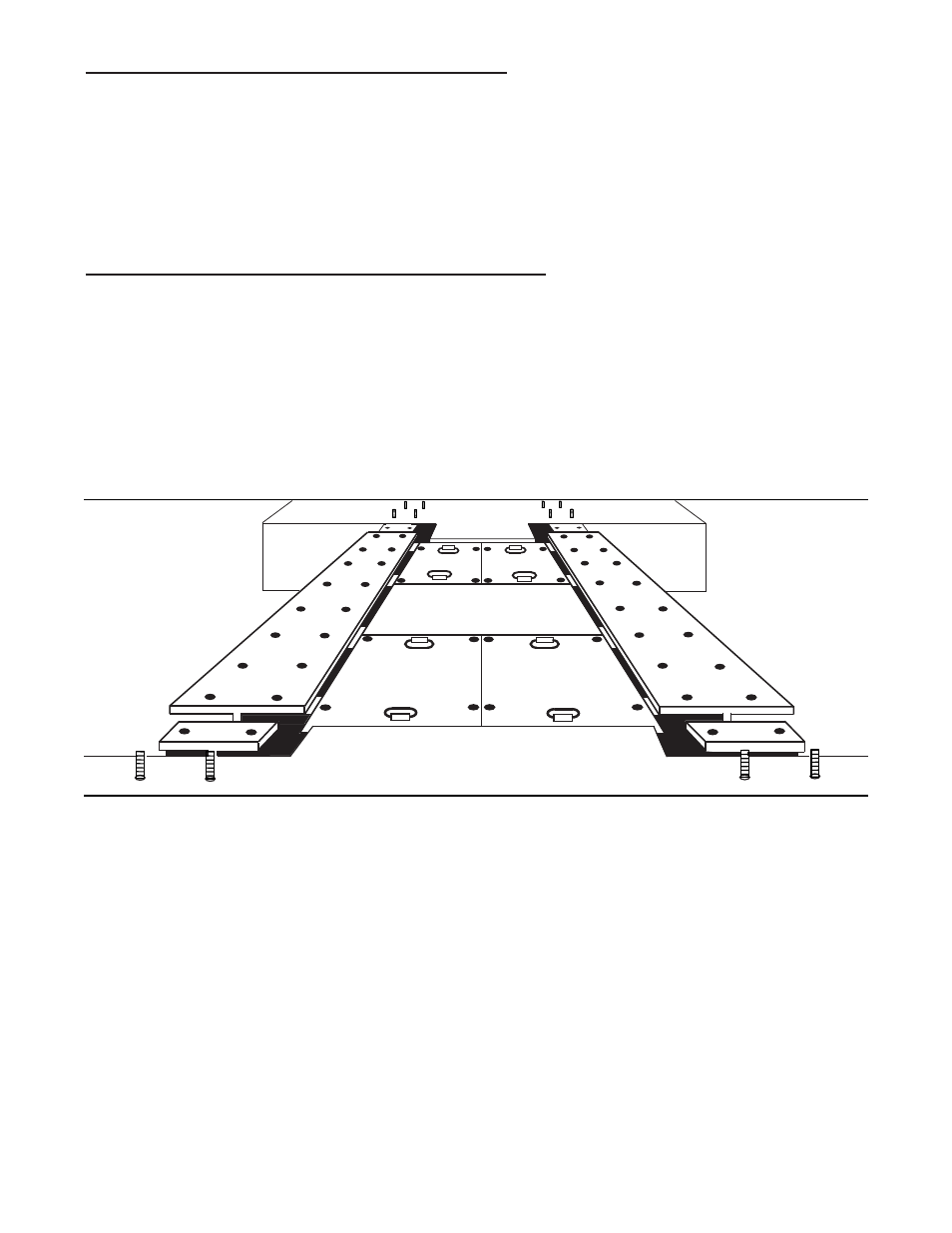

50614_1
The design of the 2000 Series Railroad Track Scale incorporates hermetically-sealed, stain-
less steel rocker column load cells, each with a capacity of 110,000 lbs. The combination of a
level approach, rocker column load cells, and checking system permits the scale slight move-
ment to mitigate the forces applied to it.
Each module features four removable panels for service access. Interface to a Fairbanks
2500 Series Digital Weight Indicator with INTALOGIX technology is standard.
The purchased scale will include the modules, anchor bolts, loadcells, checking system,
smart sectional controllers, power supply, and ground rods.
