Fairbanks 2000 SERIES Rocker Column Railroad Scale - Manual (Page 21)

03/10 21 50614 Rev. 5

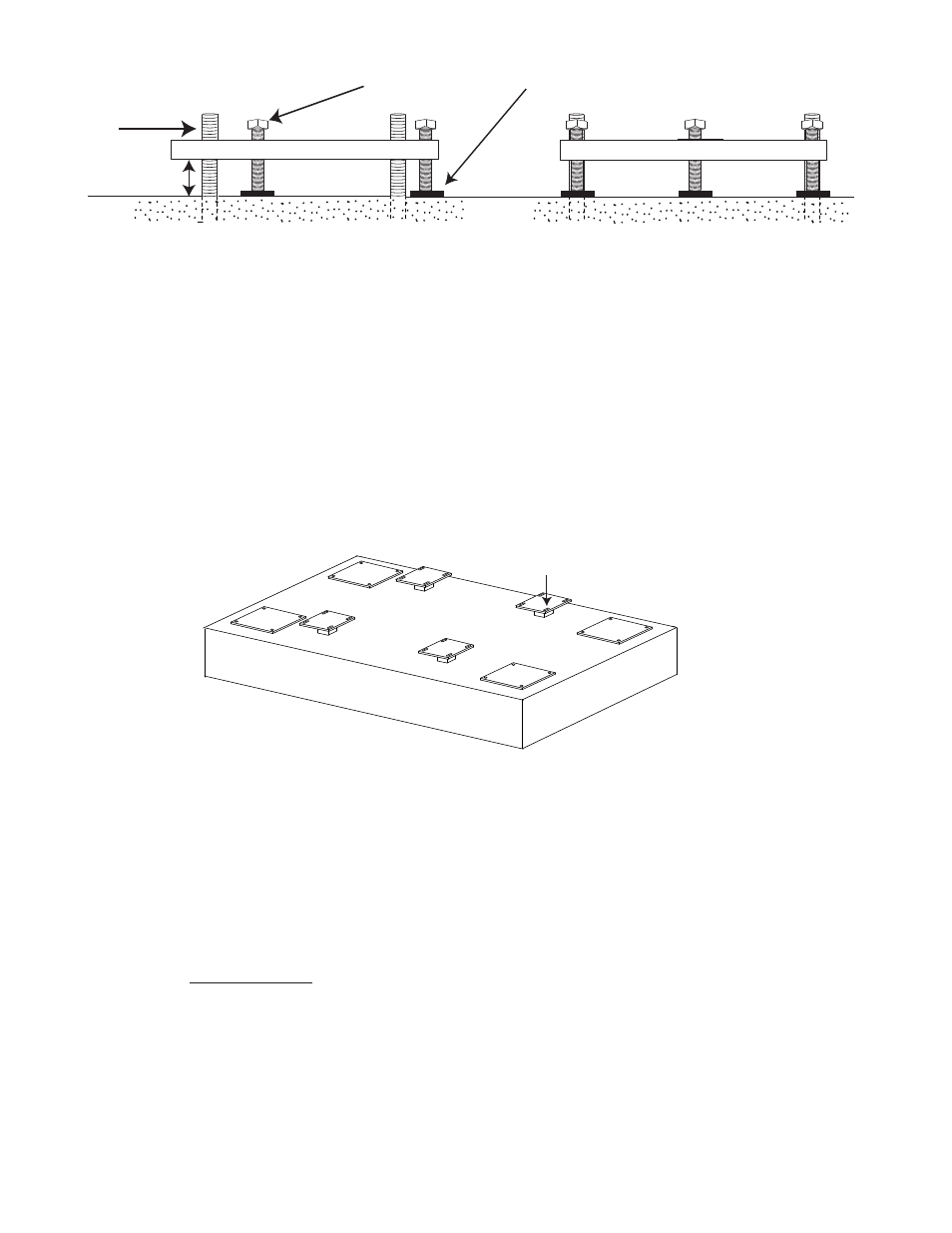

Side View
Grout Plate
Pier Bolts
1 1/2" Min
Front View
Grout Plate
Three (3) Leveling Screws on 1/4" flat steel plates per Grout Plate
50614_18
4: Insert greased leveling screws into the provided tapped holes in the Grout Plates, and
place a cut piece of 1/4" Flat Steel under each leveling screw. Adjust each screw to raise the
plate off of the blocking a minimum of 1 1/2", and to approximately level the plate. Remove
the blocking from underneath the Grout Plate.
Set all grout plates to the proper height per the Certified Print and level them by turning the
leveling screws. Tighten the grout plate anchor bolts tight enough to ensure they do not shift.
Check Brackets
50614_19
5: Set the check brackets over the check posts embedded in the foundation floor. There are
two (2) different check brackets, for LEFT and for RIGHT.
Refer to the Certified Prints for proper check bracket placement.
