Mason line center – Fairbanks 2000 SERIES Rocker Column Railroad Scale User Manual

Page 23

03/10

50614 Rev. 5

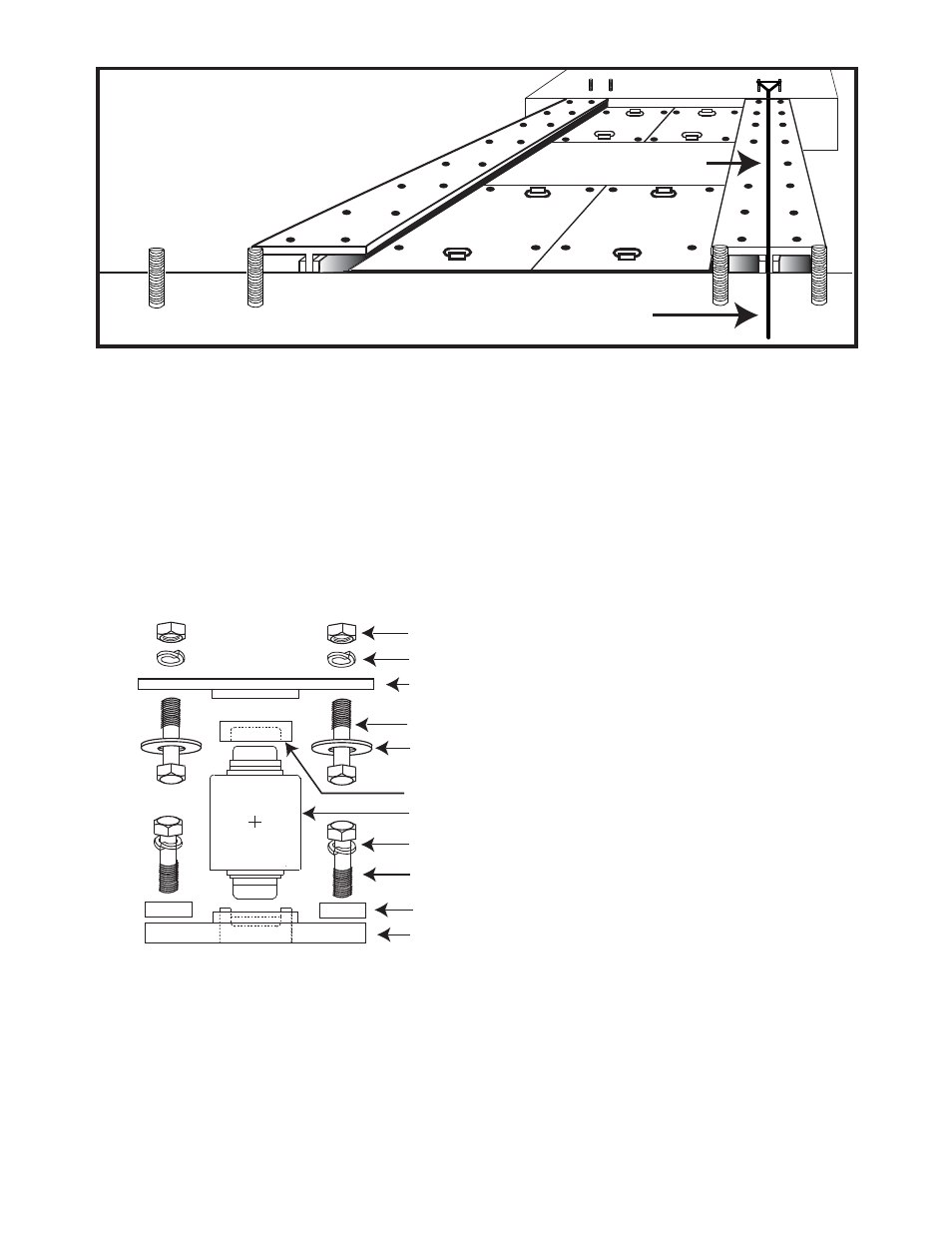

Mason Line

CENTER

50614_22

8: Set up a mason line to check and ensure that the centers of the main beams are centered
on the approach anchors in the concrete approaches for the entire section. Ensure that the
scale module(s) are centered both laterally and longitudinally on the foundation and
approaches.

9: When the weighbridge is properly positioned and centered, bolt the check brackets to the
Weighbridge. Adjust ALL checking brackets using the provided shims to prevent the scale
from moving in any direction.

Part #72663: Upper Receiver Plate

Part # 73714: Lower Receiver Plate w Bearing

Part # 54776: 3/4" Lock Washer

Part # 54532: 3/4-10 X 3" Hex Bolt

Part # 73972: Clamp Plate

Part # 72139: Loadcell

Part # 70508: Upper Bearing

Part # 54555: 3/4-10 X 3 1/2" Hex Bolt
Part # 54233: 3/4" Flat Washer

Part # 54776: 3/4" Lock Washer

Part # 54264: 3/4" Hex Nut

50614_23

10: Locate the above listed parts, and place them at each Grout Plate's location. When
assembling, care should be taken to apply grease to the upper and lower cups and bolts to
enable future disassembly and to minimize wear

72662:
