Scales must be on the same plane, Level, Baseplate leveling screws – Fairbanks 2000 SERIES Rocker Column Railroad Scale User Manual
Page 25

03/10
25
50614 Rev. 5

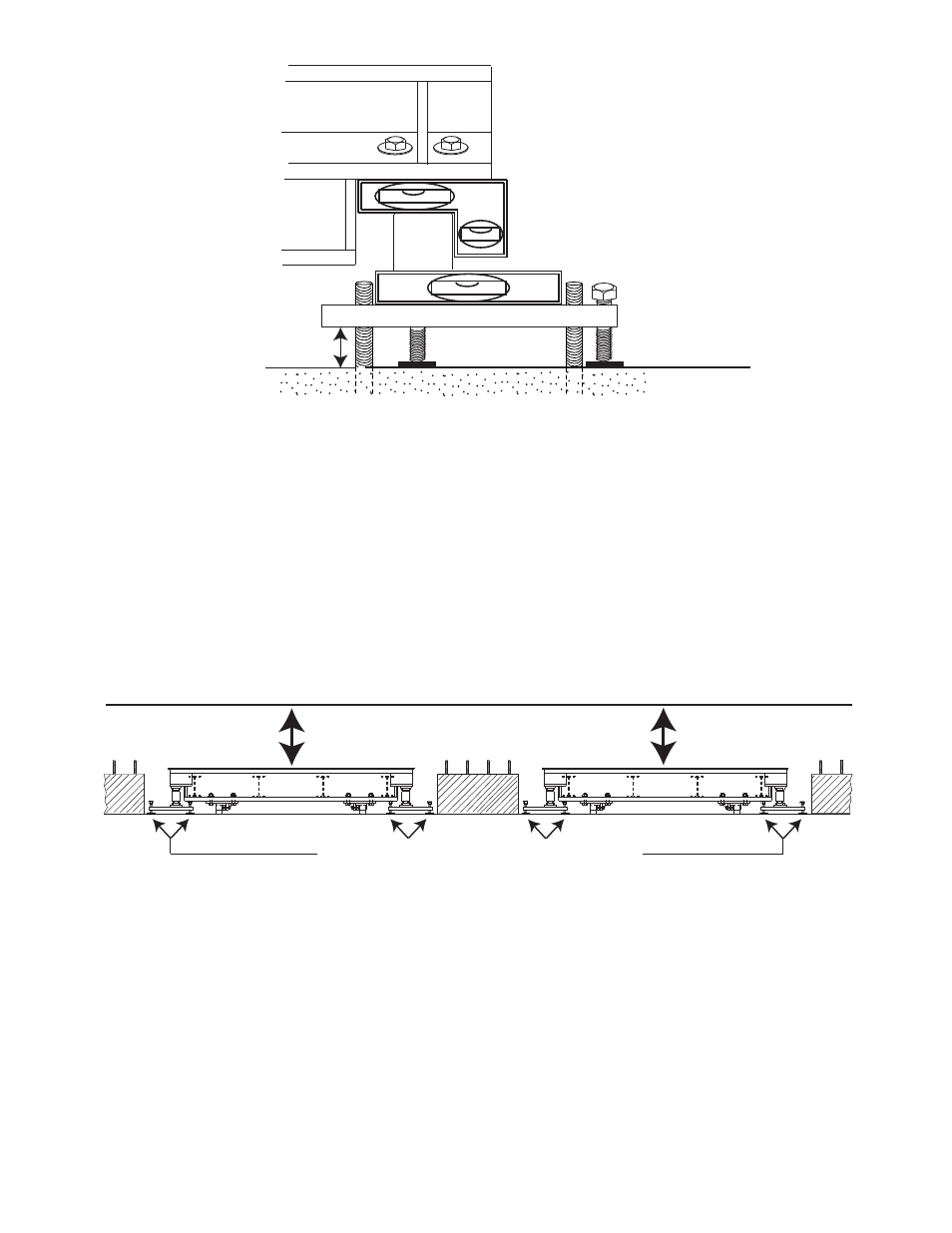

Side View
1 1/2" Min
LEVEL
LEVEL
Load
Cell
50614_26
12: Plumb the load cells by lifting the weighbridge up slightly and shifting the load cell base
plate on the grout plate. Use a machinists level to align and ensure a plumb and level condi-
tion.
13: When loadcell is plumb and level, tighten the lower receiver plate bolts to their final
torque value. Repeat for all loadcells in the scale.
SCALES MUST BE ON THE SAME PLANE
SCALES MUST BE LEVEL AND EVEN WITH EACH OTHER
REFERENCE LINE
Baseplate Leveling Screws
50614_27
14: When the weighbridge is completely set on plumb load cells, ensure ALL modules are on
the same plane. If necessary, loosen the grout plate pier bolts and adjust the three (3) level-
ing screws in each grout plate. When complete, re-tighten the grout plate anchor bolts tight
enough to ensure they do not shift.
