Fairbanks 2000 SERIES Rocker Column Railroad Scale - Manual (Page 17)

03/10 17 50614 Rev. 5
4 X 4
Check Post
Lag Screws
50614_13

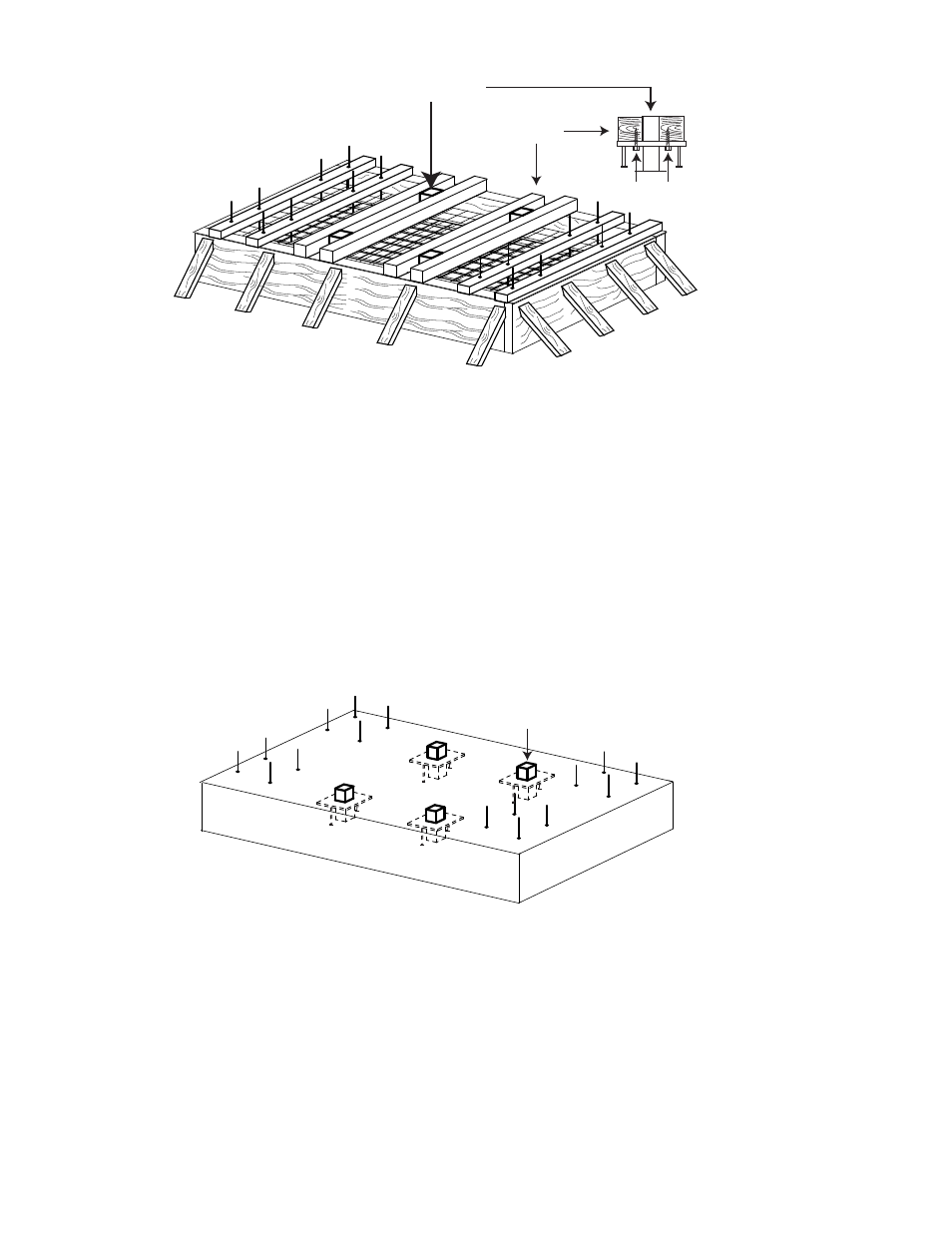

Check Posts limit the platform movement, and also serve as a safety pier. They are designed
to be embedded in the poured slab / foundation. Check Posts weigh approximately 70
pounds.
After building, supporting, and securing the main forms, the Check Posts are securely fas-
tened to 4 X 4 with Lag screws. They are then placed and secured into position as shown.
For exact dimensions, refer to the CERTIFIED PRINT.
Embedded Check Posts
50614_14
When the poured slab / foundation has been cured, remove 4 X 4's, forms, and lag bolts.
