Fairbanks 2000 SERIES Rocker Column Railroad Scale User Manual
Page 40
03/10
40
50614 Rev. 5
APPENDIX X: 2000 Series J-Box Bracket Accessory

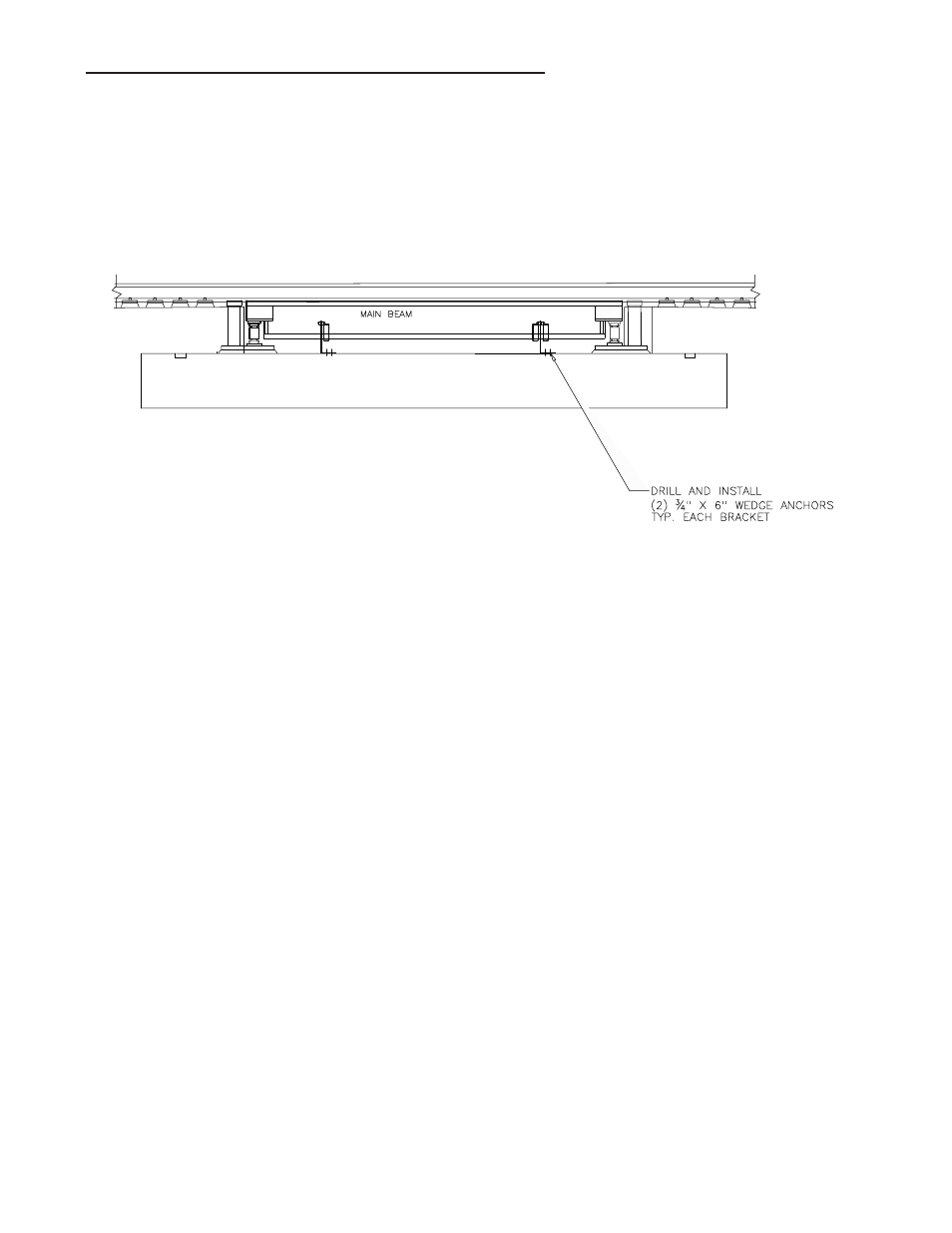

This accessory provides a means to mount the smart sectional controllers, pit power supplies,
and analog junction boxes away from the scale frame. Each bracket can accommodate a
maximum of two boxes. The illustration below shows a typical installation of these brackets.
The part number of the bracket is 106314.
50614-35
