CLASS 5000 METER
62-0392-03 38
10.0 CLASS 5000 METER
OPERATING MODES
The E-Mon D-Mon
®
Class 5000 meter is used to monitor electric power usage of
individual loads after the utility meter and store kW and kVAR data for automatic meter
reading.
10.1 Start Up Screens

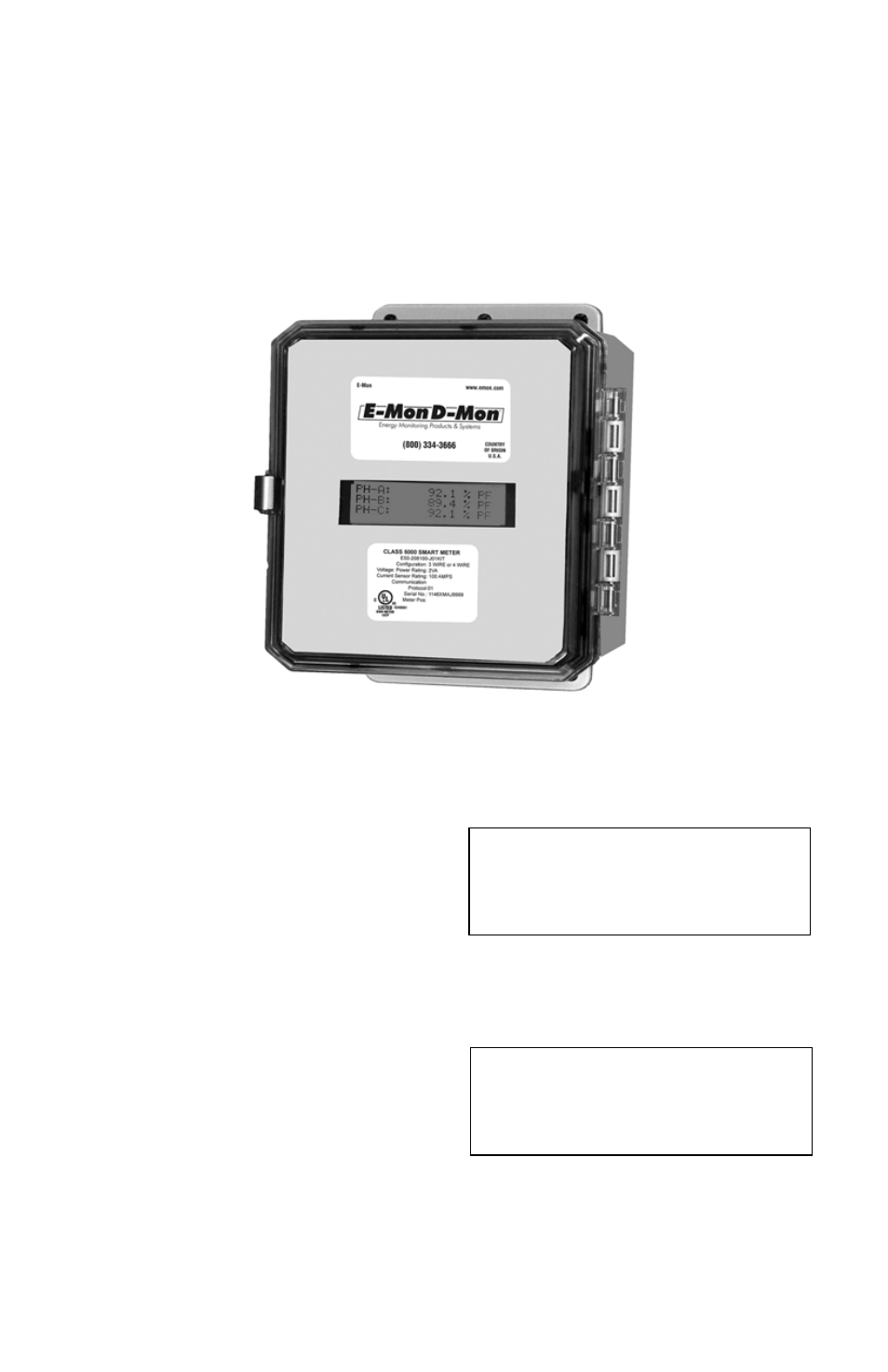

When the meter starts up, the screen first
displays the meter name and firmware
image type.
After approximately 4 seconds, the screen
displays misc. information such as active
configurations, meter configurations,
phase, voltage, amperage, calibration
factors, serial number, Date/time and
firmware version.
CL5000 M
Starting Up.....
110608TR
1A 38400 EZ7x EZ7x
MD 3P 208V 200A*
CF 1.057 1.056 1.057
DT 00000000
06.21.01
*1-Phase option will state:
MD 2P 208V 200A
