6.0 METER INSTALLATION
6.1 Mounting the Class 5000 Meter

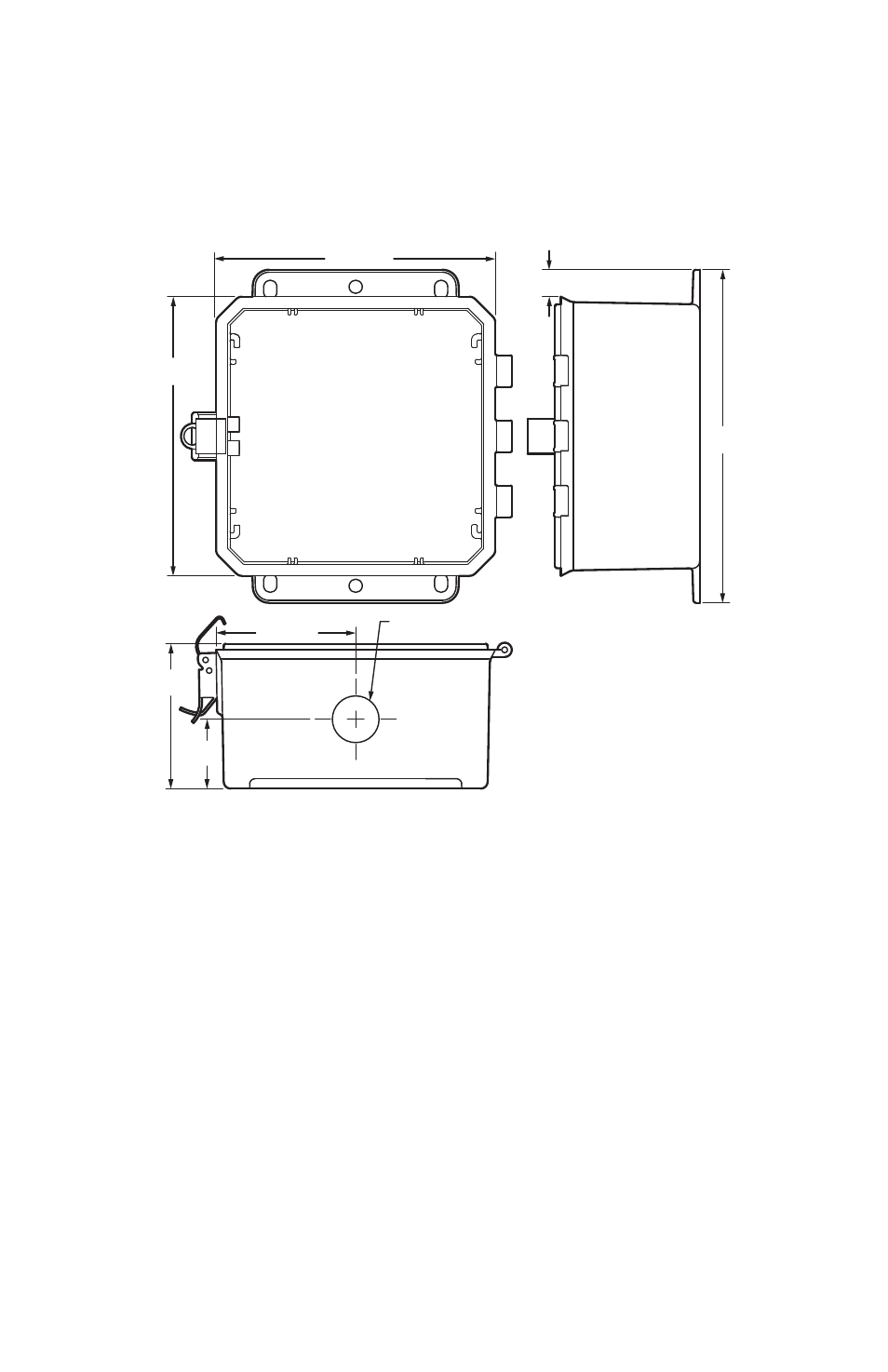

Fig. 5. Enclosure Dimensions
Use appropriately sized mounting hardware to fasten the meter enclosure to the
selected mounting surface.
The four housing mounting holes are centered 6.75” H x 4” W.
NOTE: Units housed in UL Type 1 enclosures must only be installed in indoor envi-
ronments, where they will not be affected by the elements.
M34684
6-35/64 (166)
6-35/64
(166)
5/8 (16)
7-51/64
(198)
3-17/64 (83)
1-5/8
(41)
3-25/64
(86)
Ø 1-3/32 (28) THROUGH
NEAR SIDE ONLY
