Paramagnetic O2 Purity Analyzer

Appendix

Teledyne Analytical Instruments

85

A.4 Programmable Pressure Compensation

Adjustment

The standard model 3010MA software includes pressure

compensation of the sensor in a 1 to 1 relation with atmospheric pressure
change. While this is adequate for most applications, sometimes small
errors in the O

2

reading are observed when pressure compensation is

slightly off. The latest version of the 3010M software provides a pressure
compensation factor to allow the user to fine tune compensation.

PROCEDURE:

By default, the 3010M’s uses a 1:1 compensation ratio. That is, if

the atmospheric pressure increases by 1%, the software will reduce the O

2

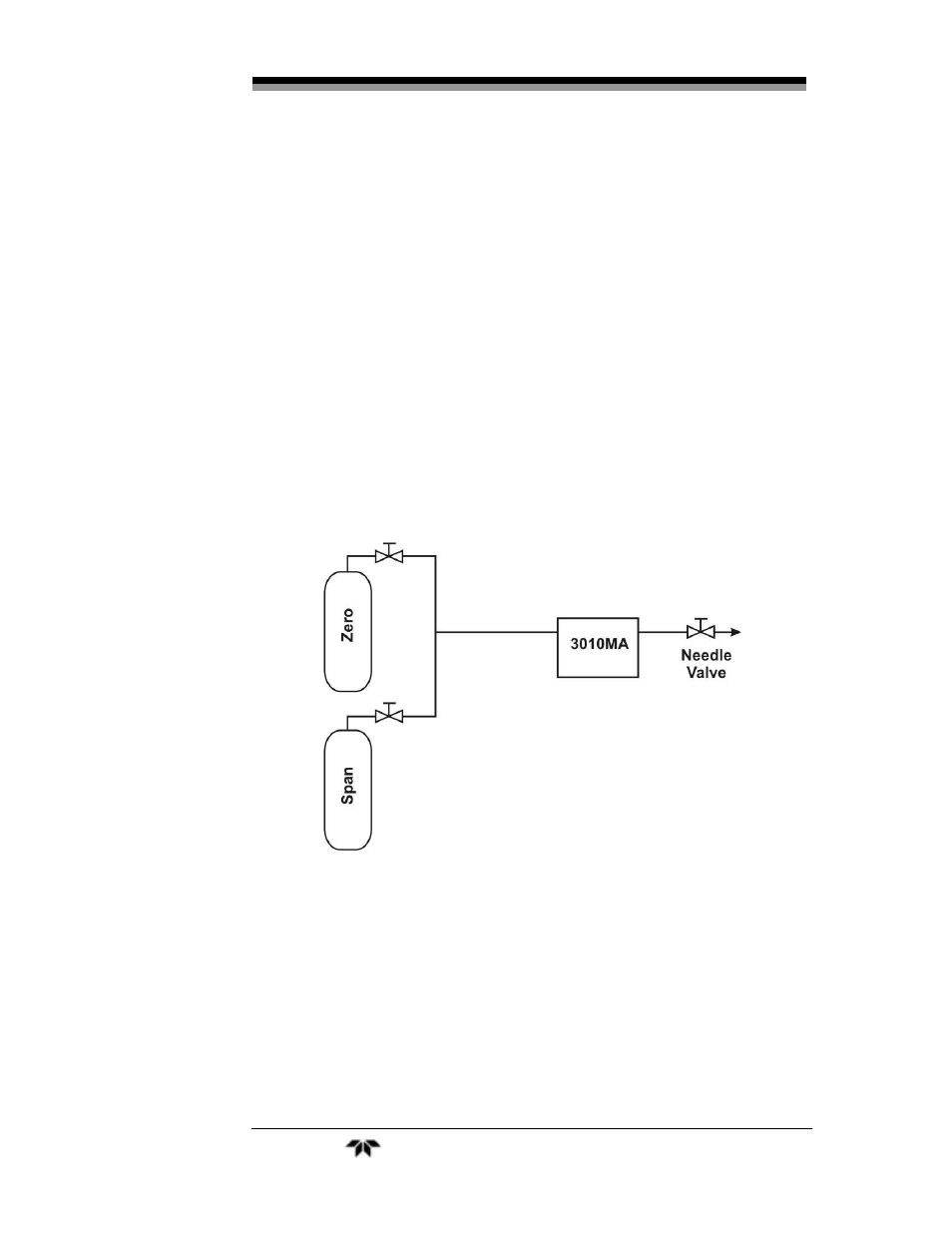

reading by 1%. To find the optimum pressure compensation factor, the
analyzer should be set up as follows and the procedure followed carefully.

1. Verify the pressure compensation factor is set to 1.00.

 While the analyzer is in the Analyze mode

 Press the System key

 Find and select the ‘PressureAdj’ function
 Press the Enter key

 Verify that the compensation factor is set to 1.00, adjust if

required

 Press the Escape key
