Paramagnetic O2 Purity Analyzer

Installation

Teledyne Analytical Instruments

35

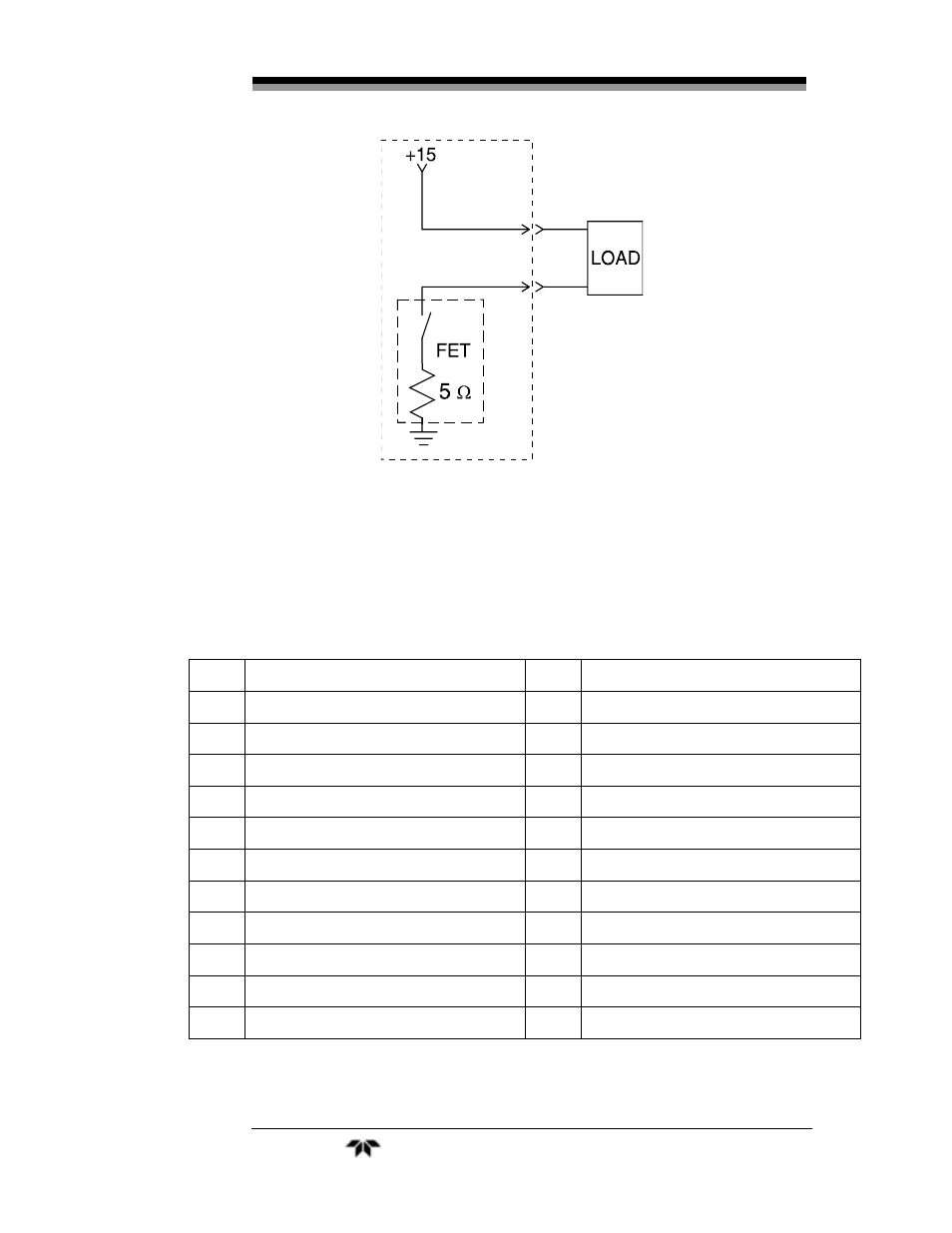

Figure 3-7: FET Series Resistance

Below is a table of the complete pin-out connections of the 50-pin

equipment interface connector.

Table 3-5: 50-Pin Equipment Interface Connector

Pin Function Pin Function

1

26

2

27

3

(+) Range ID, 4-20 mA floating *

28

Threshold Alarm 1 Mov. Contact

4

(-) Range ID, 4-20 mA floating *

29

5

(+) %Range, 4-20 mA floating

30

6

(-) %Range, 4-20 mA floating

31

7

(-) %Range, 0-1VDC neg gnd

32

Remote EXHAUST valve (hot)

8

(+) Range ID, 0-1VDC

33

Remote SAMPLE valve (hot)

9

(+) Remote Zero

34

10

(+) Remote Span

35

11

(-) Remote Zero

36

System Alarm, NC Contact
