Diamond Products CC2500 (Hydraulic) User Manual
Page 52
17
11
13
18
15
7
7
19
3
2
1
8
6
9
8
7
4
5
8
7
9
8
12
10
14
16
7
8

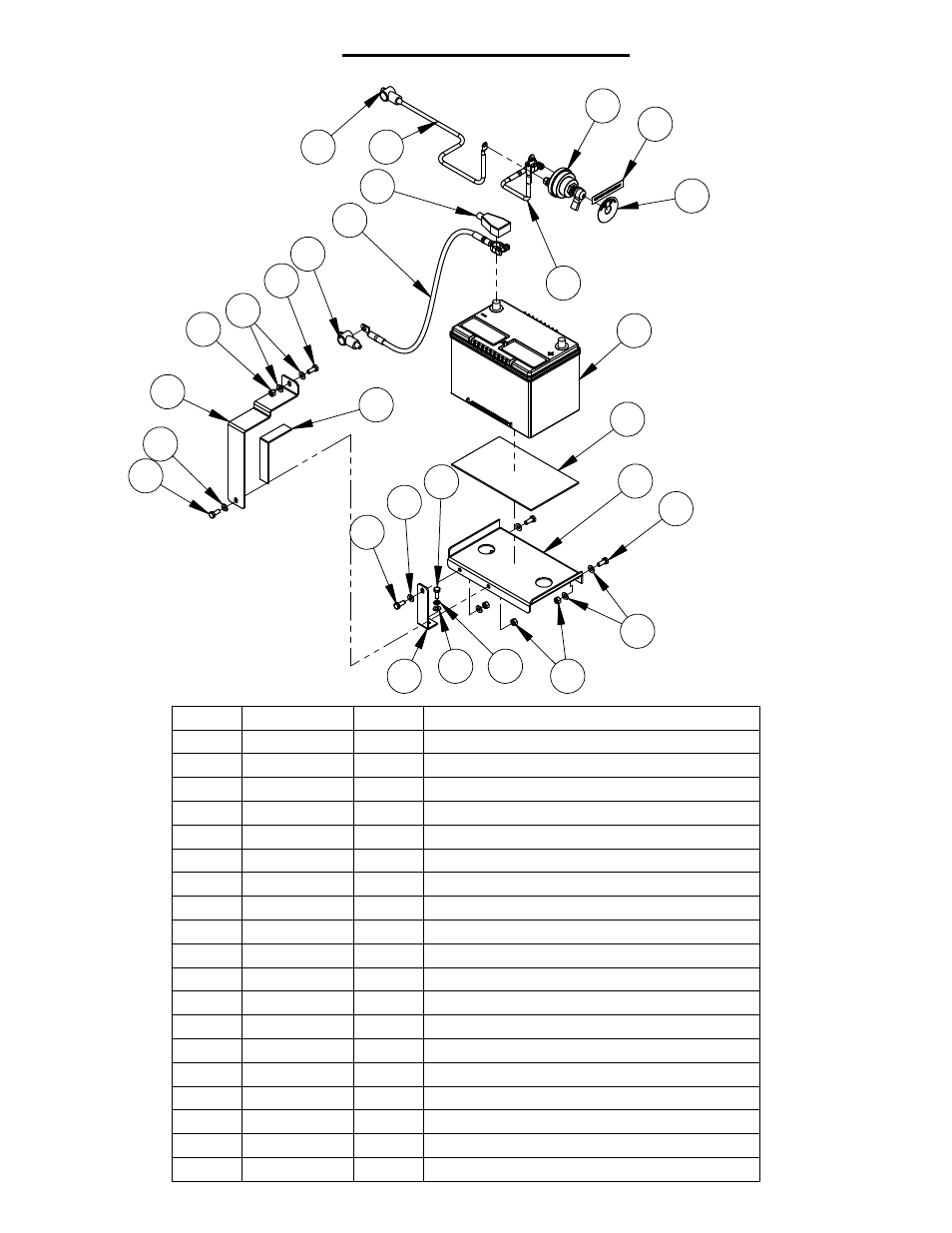

Battery Assembly #6047958
ITEM
PART NO.
QTY.
DESCRIPTION
1
6047920
1
Battery Holder
2
6010016
1
Battery Pad
3
2700208
1
Battery, 12 Volt Group Size 34
4
6048077
1
Rubber Strip
5
6047922
1
Battery Strap
6
6047921
1
Battery Support Brace
7
2900022
10
Flat Washer, 5/16" SAE
8
2900329
6
Cap Screw, Hex Hd., M8-1.25 x 20mm
9
2900303
5
Lock Nut, M8-1.25 Nylon Insert
10
2800072
1
Battery Cable, 30" Negative (Black)
11
2800257
1
Battery Boot, Large (Black)
12
2800198
1
Battery Boot, Small (Black)
13
2800565
1
Battery Disconnect Switch
14
2800572
1
Battery Cable, 9" Positive (Red)
15
2800566
1
Face Plate, Battery Disconnect
16
6048091
1
Battery Cable Assy., Red
17
1800846
1
Label, Battery Disconnect
18
2800197
1
Battery Boot, Small (Red)
19
2900763
1
Lock Washer, M8 Split
