Diamond Products CC2500 (Hydraulic) - Manual (Page 19)

14
12
11
13
1
2
6
7
8
4
5
9
10
3
ITEM PART NO. QTY. DESCRIPTION
1 6047982 1 Rear Axle Weldment w/ 60 Tooth Spur Gear
2 6048134 2 Key, 1/4" Sq. x 2-1/4"
3 2900061 2 Grease Fitting, 1/4-28 x 90 Degree
4 6047904 1 Axle Bearing Spacer 1/2"
5 2500732 2 Pillow Block Bearing 1"
6 2900013 4 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
7 2900006 4 Lock Washer, 3/8" Split
8 2900014 4 Flat Washer, 3/8" SAE
9 2500724 2 Wheel, 8" Rear
10 6010026 2 Wheel Mount Washer
11 2900330 2 Cap Screw, Hex Hd., M12-1.75 x 30mm
12 2900084 2 Lock Washer, 1/2" Split
13 2900329 4 Cap Screw, Hex Hd., M8-1.25 x 20mm
14 2900031 4 Lock Washer, 5/16" Split

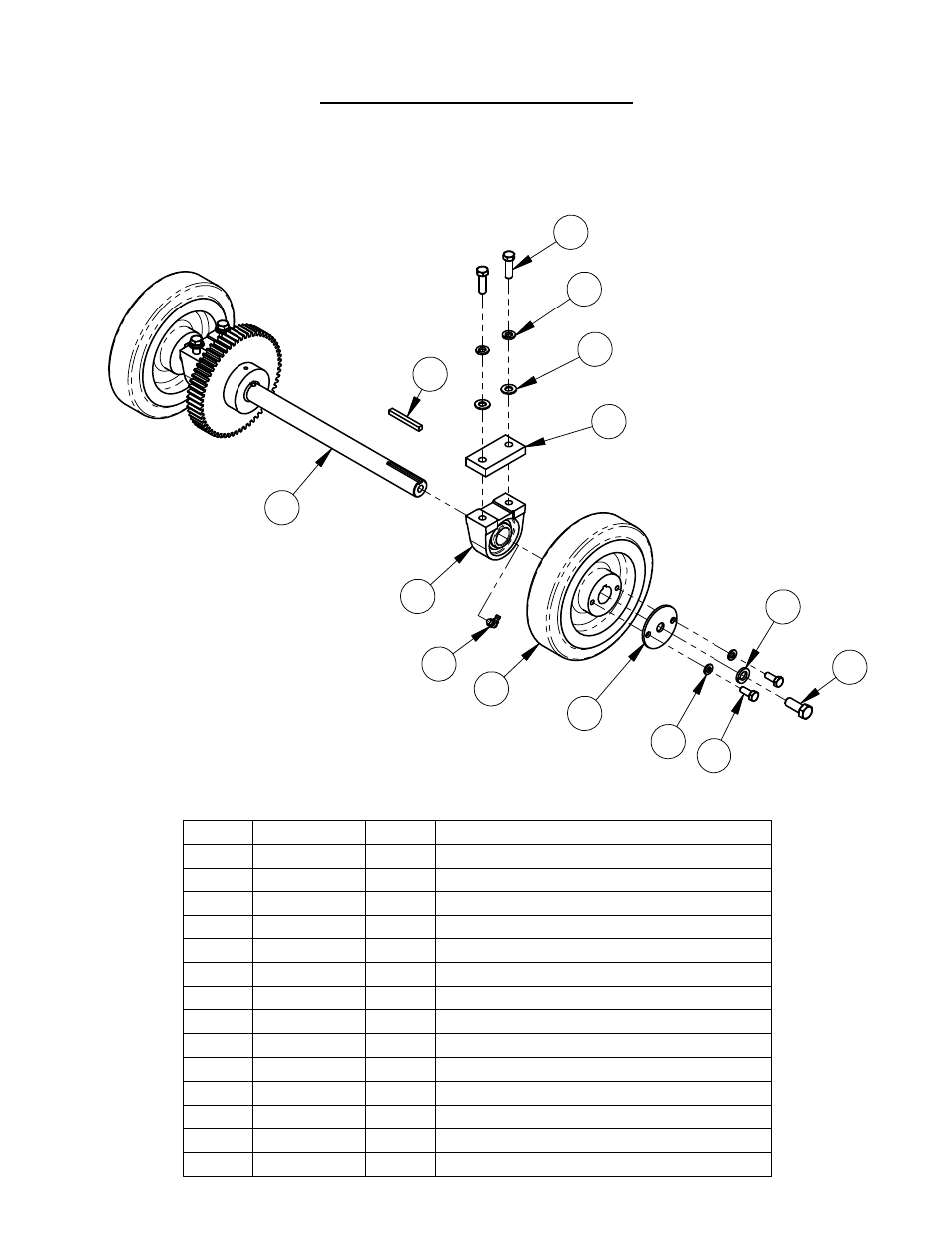

Rear Axle Assembly #6047993
