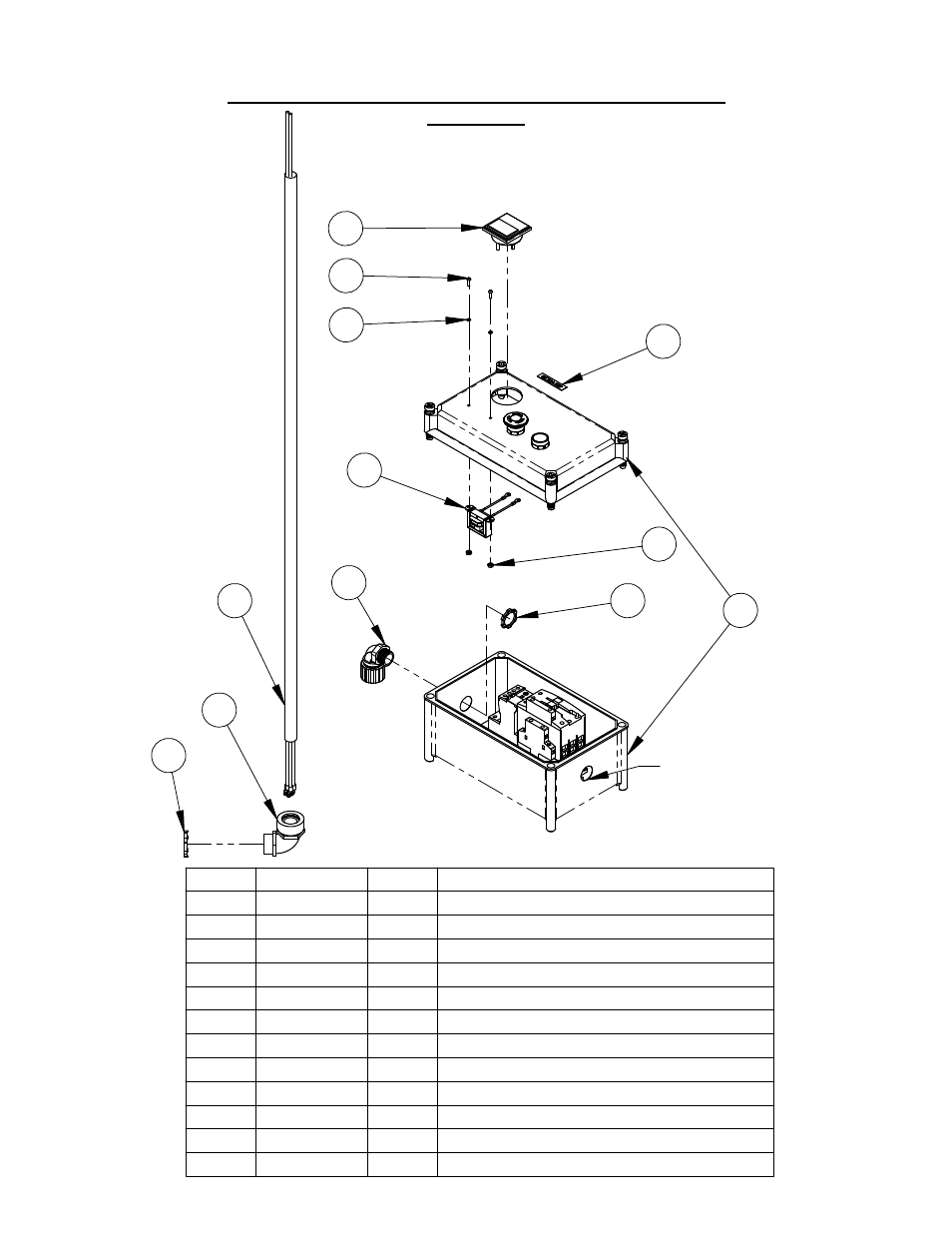

STARTER BOX ASSEMBLY, 3-PHASE, 415-480V

#6004899

ITEM

PART NO.

QTY.

DESCRIPTION

1

2804007

1

Starter Box, 415-480V

2

2800252

1

Amp Meter, 0-20 AC

3

2800085

1

AC Current Transformer

4

2900090

2

Machine Screw, Rd. Hd., #6-32 x 1/2"

5

2900092

2

Lock Washer, #6 Split

6

2900091

2

Hex Nut, #6-32

7

1800811

1

Voltage Label, 460V

8

2801303

1

Connector, 3/4" Cord 90Deg, Plastic

9

2801304

1

Lock Nut, 3/4"

10

2800339

1

Cord Grip, To 7/8", 90 Deg.

11

2800193

1

Lock Nut, 1"

12

6040304

1

Cable Assy., 8 Ga., 4 Wire x 54"

BOX

OVERLOAD

TO STARTER

6

POWER CORD

12

1

MOTOR

TO

11

10

3

2

4

7

8

5

FOR CUSTOMER

SUPPLIED

9

26
