Diamond Products CC2500 (Hydraulic) User Manual
Page 47
ITEM
PART NO.
QTY.
DESCRIPTION
1
2500980
1
Alternator, 12V, 37A
2
6047971
1
Alternator Mount Bar
3
6047972
1
Adjustment Arm
4
2500981
1
Alternator Pulley 3"
5
6047973
1
Alternator Drive Pulley
6
2900036
2
Set Screw, Soc. Hd., 5/16-18 x 1/4"
7
2900022
4
Flat Washer, 5/16" SAE
8
2900031
3
Lock Washer, 5/16" Split
9
2900019
3
Cap Screw, Hex Hd., 5/16-18 x 3/4"
10
2500982
1
V-Belt, 4L-260
11
2900014
6
Flat Washer, 3/8" SAE
12
2900304
2
Lock Nut, M10-1.5 Nylon Insert
13
2900223
2
Cap Screw, Hex Hd., M10-1.5 x 30mm
14
6047987
1
Frame Lift Weldment
15
2900321
4
Lock Washer, M10 Split
16
2900333
4
Cap Screw, Hex Hd., M10-1.5 x 25mm
17
2900026
1
Lock Nut, 1/2-13 Nylon
18
2900058
2
Flat Washer, 1/2" SAE
19
2900105
1
Cap Screw, Hex Hd., 1/2-13 x 2-3/4"
20
6048508
1
Starter Box Base W/M6 inserts
21
6040298
1
Cord, SO 12/3 X 42"
22
2801676
1
Auxilary Contacts, 1NO-NC
23
2801630
1
Cord Connector, 1/2", .40-.56" Cord, 90 Deg.
24
2900685
1
Jam Nut, 5/8-18

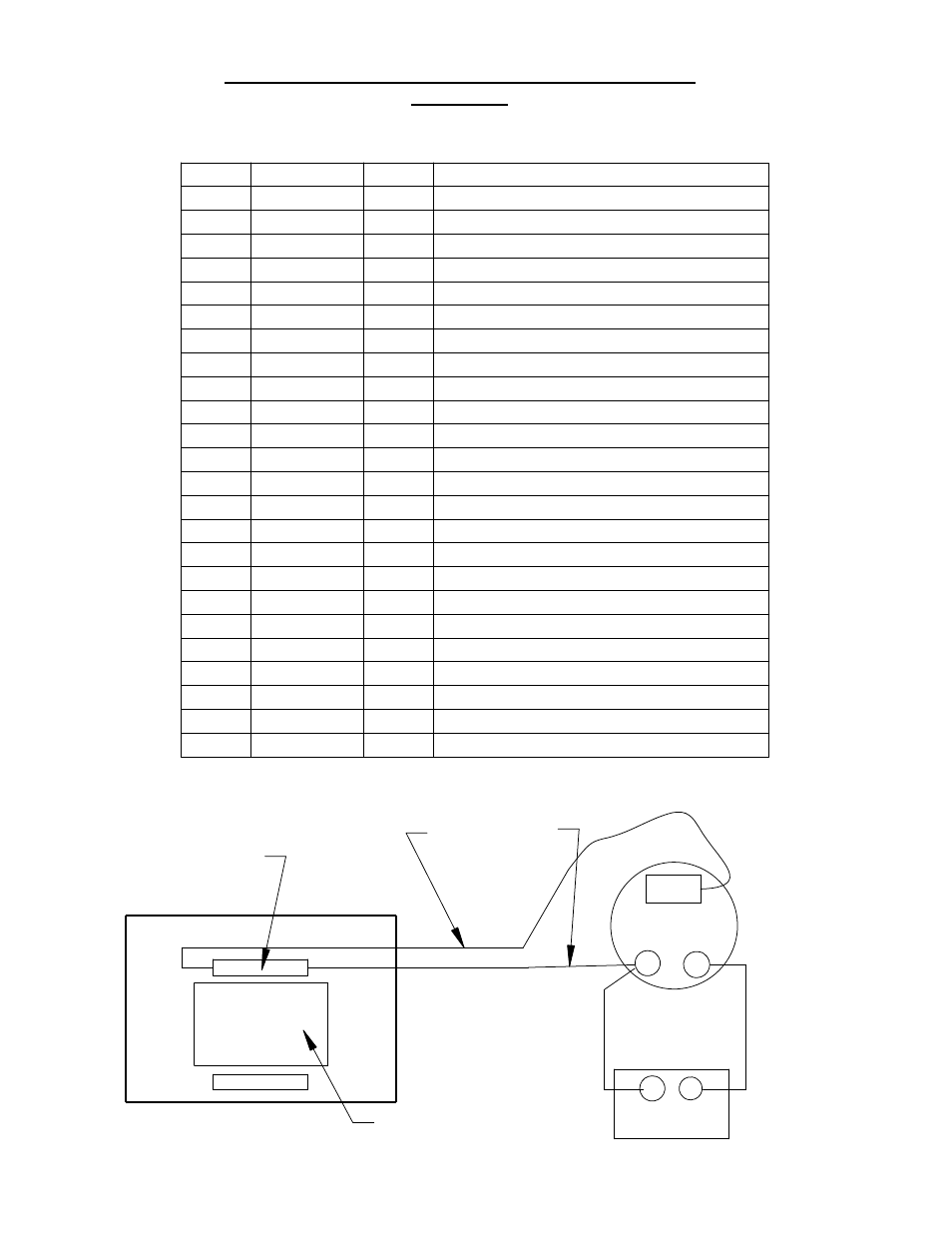

Alternator Assembly Option for Electric Saws
#6047896
ADD AUXILIARY CONTACT
TO CONTACTOR IN
STARTER BOX
ALTERNATOR
+
-
BATTERY
+
-
CONTACTOR
ADD CORD
BLACK WHITE
