Diamond Products CC2500 (Hydraulic) User Manual
Page 31
ITEM
PART
NO.
QTY.
DESCRIPTION
1
6040300D 1
Starter Box Base
2
2901588
4
M6-1.0 Threaded Insert
3
6040598
1
Sub-plate
4
2900676
4
Machine Screw, Pan Hd., M4-0.7 x
8mm
5
2801707
1
Contactor, 415-480V (Includes Coil)
2801266
1
Replacement Coil, 415-480V
6
2801699
1
Overload Relay, 9-45 AMP
7
2801676
1
Auxilary Contacts, 1NO-NC
8
2901827
4
Cap Screw, Soc. Hd., #8-32 x 5/8"
9
2901437
4
Flat Washer, #10
10
HBOLT
0.2500-
28x0.5x0.
5-C
1
11
2900009
1
Flat Washer, 1/4" SAE

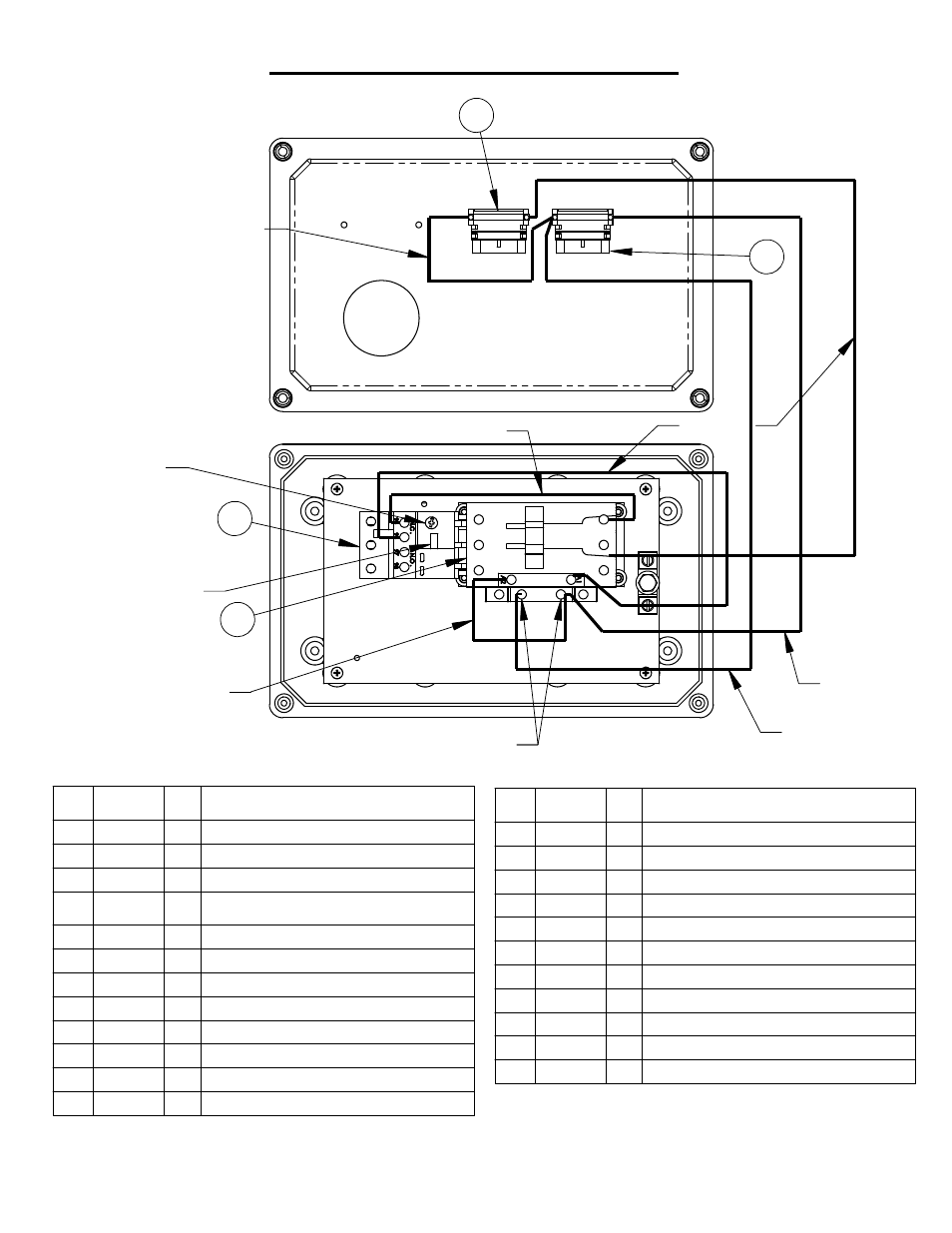

2804007 STARTER BOX, 415-480 VOLT
ITEM
PART
NO.
QTY.
DESCRIPTION
12
2800315
2
Grounding Lug
13
2801636
1
E-Stop Switch, 600V
14
2801639
1
Pushbutton, N.O., 600V
15
6048293
1
Starter Box Cover
16
2701414
4
Fastener, Electrical Box Top
17
4600293
1
Wire, 14 Gage, Yellow, 15"
18
4600294
1
Wire, 14 Gage, Yellow, 6"
19
4600295
1
Wire, 14 Gage, Black, 6"
20
4600296
1
Wire, 14 Gage, Black, 15"
21
4600297
1
Wire, 14 Gage, Red, 12"
22
4600298
2
Wire, 14 Gage, Red, 13"
4600298
4600295
4600296
13
15
4600293
PHASE - OFF
4600294
6
RATING
MOTOR AMP
5
N.O. ONLY
SET TO
TRIP CLASS - 10
RESET - A
4600297
31
