Diamond Products CC2500 (Hydraulic) - Manual (Page 22)

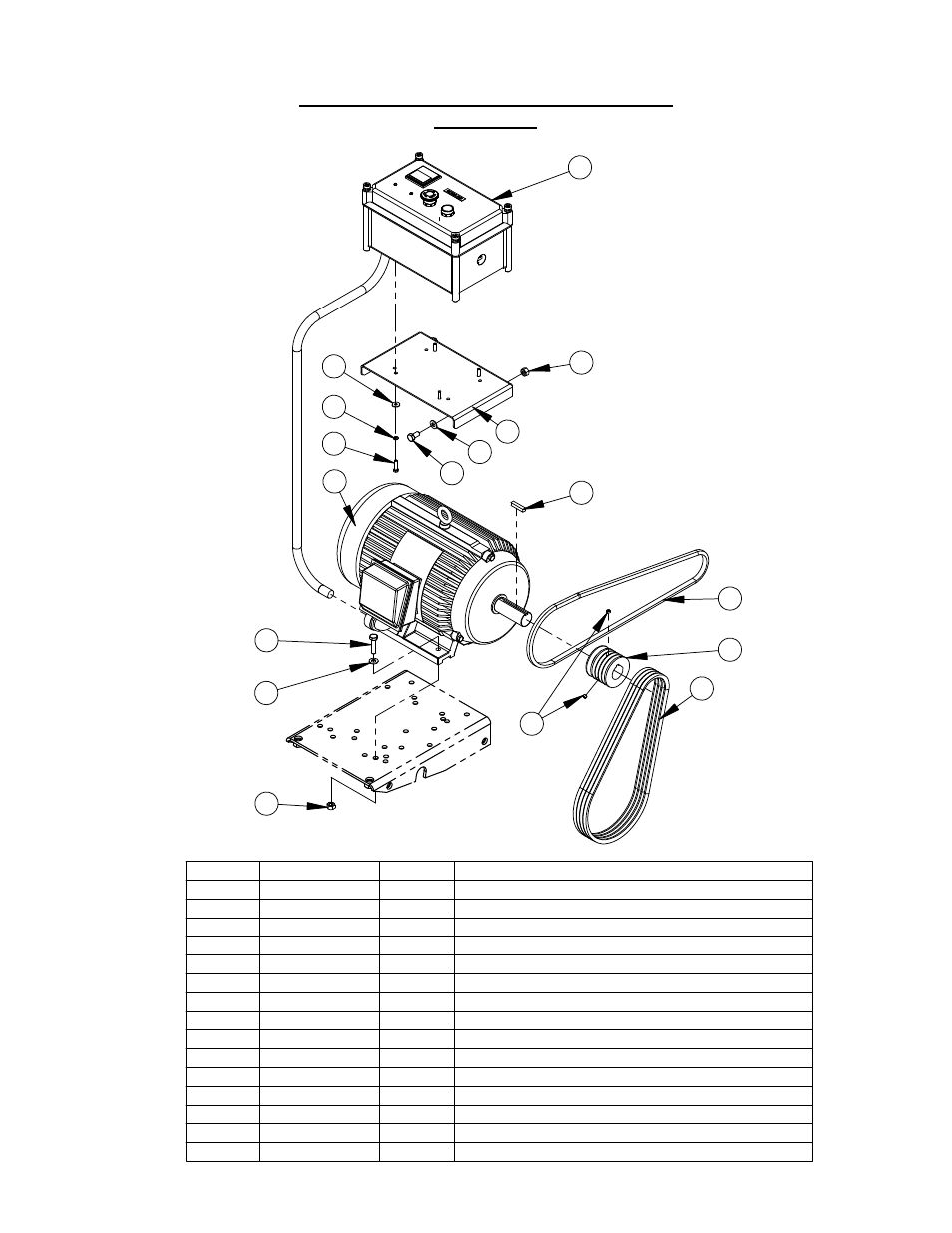

15HP-230V Electric Motor Assembly
#6047712
ITEM PART NO. QTY. DESCRIPTION
1 2600202 1 Electric Motor, 15HP-3PH, 230/460V, Leeson
2 2900316 4 Cap Screw, Hex Hd., M10-1.5 x 40mm
3 2900014 6 Flat Washer, 3/8" SAE
4 2900304 6 Lock Nut, M10-1.5 Nylon Insert
5 6048046 1 Key, 5/16" Sq. x 1-1/2"
6 6047913 1 Sheave, 3" x 1-3/8" Bore
7 2900036 2 Set Screw, Soc. Hd., 5/16-18 x 1/4"
8 2500849 1 V-Belt, 4L-500
9 2500792 4 V-Belt, 3VX400
10 6047950 1 Starter Box Platform
11 2900314 2 Cap Screw, Hex Hd., M10-1.5 x 20mm
12 2901359 4 Fender Washer, M6
13 2900765 4 Lock Washer, M6 Split
14 2900311 4 Cap Screw, Hex Hd., M6-1.0 x 25mm
15 6004896 1 Starter Box Assembly, 3-Phase, 220-240V
12
1
4
3
11
5
4
8
6
9
2
3
13
10
15
7
14
22
