Frame base assembly – Diamond Products CC2500 (Hydraulic) User Manual
Page 5

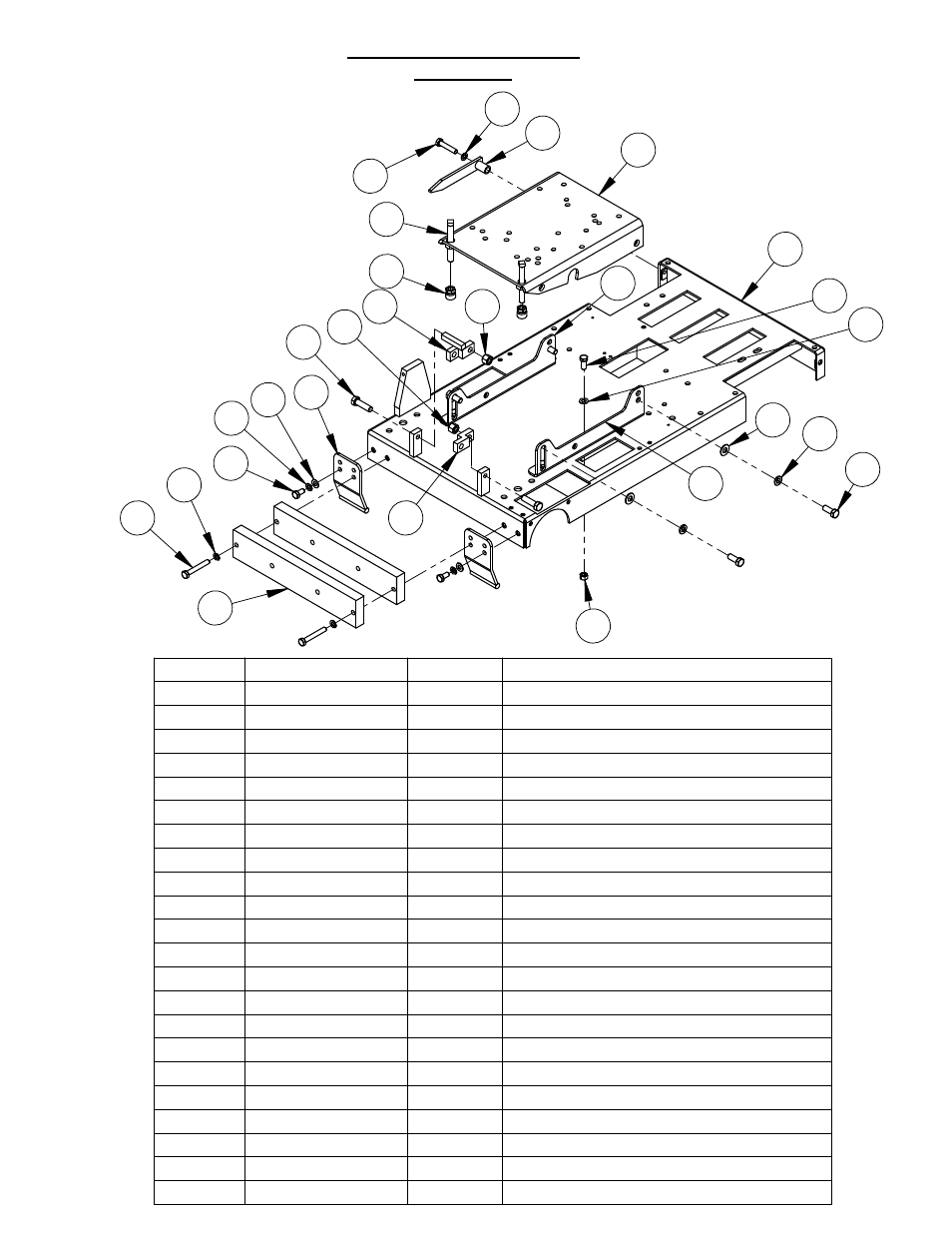

Frame Base Assembly
#6047700
ITEM PART
NO.
QTY.
DESCRIPTION
1
6047900A
1
Frame Base
2
6011021
2
Skid Plate
3
6048067
2
Saw Weight, 13 Pound
4
6047949
1
Pointer Extension with Stop
5
6047976
1
Pointer Extension
6
6010022
1
Rear Pointer
7
2900014
8
Flat Washer, 3/8" SAE
8
2900321
5
Lock Washer, M10 Split
9
2900314
2
Cap Screw, Hex Hd., M10-1.5 x 20mm
10
2900334
2
Cap Screw, Hex Hd., M10-1.5 x 70mm
11
2900318
1
Cap Screw, Hex Hd., M10-1.5 x 50mm
12
2900139
2
Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
13
2900026
2
Lock Nut, 1/2-13 Nylon
14
6041164
1
Engine Base Assembly
15
6047909
2
Engine Base Mount
16
2900027
2
Set Screw, Sq. Hd., 1/2-13 x 4"
17
2900722
2
Swivel Pad, 1/2-13
18
2900304
6
Lock Nut, M10-1.5 Nylon Insert
19
2900333
6
Cap Screw, Hex Hd., M10-1.5 x 25mm
20
2900330
4
Cap Screw, Hex Hd., M12-1.75 x 30mm
21
2900084
4
Lock Washer, 1/2" Split
22
2900058
4
Flat Washer, 1/2" SAE
