Blade shaft assembly 14‐20” hyd, Blade shaft assembly (14 - 20" hydraulic) – Diamond Products CC2500 (Hydraulic) User Manual
Page 17
2900412
FOR RH THREADED
BOLTS ONLY
2901569
FOR LH THREADED
BOLTS ONLY
1.2"
1"
* NOTE
#6047995
* See Note
* See Note

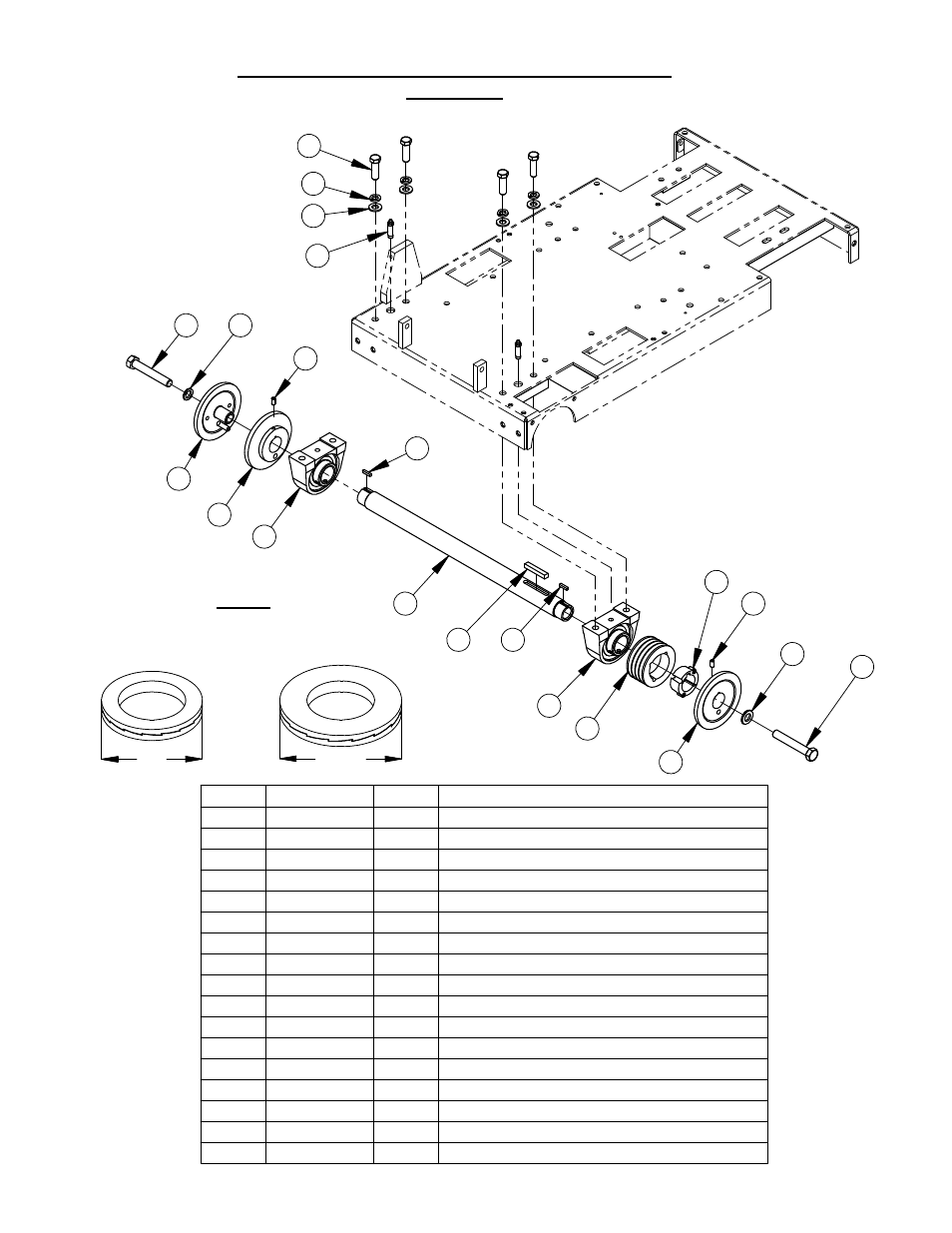

Blade Shaft Assembly (14 - 20" Hydraulic)
ITEM
PART NO.
QTY.
DESCRIPTION
1
6047905
1
Blade Shaft
2
6047959
1
Key, 3/8" Sq. x 2-1/4"
3
6047978
2
Key, 3/16" Sq. x 27/32"
4
2500731
2
Pillow Block Bearing 1-1/2"
5
2900058
4
Flat Washer, 1/2" SAE
6
2900084
4
Lock Washer, 1/2" Split
7
2900139
4
Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
8
2900264
2
Grease Fitting, 1/8" NPT x 1-3/4"
9
2500621
1
Sheave, 3V-3.65-4 Groove (1610)
10
2500363
1
Taper Bushing, 1-1/2" w/ Set Screws
11
2900418
2
Set Screw, Soc. Hd., 5/16-18 x 5/8"
12
6047906
2
Inner Flange 5"
13
6047907
1
Outer Flange 5" with Pin
14
2900412
1
Lock Washer, Wedge 5/8"
15
2901569
1
Lock Washer, Wedge 5/8" LH
16
2900130
1
Cap Screw, Hex Hd., 5/8-11 x 4" LH
17
2900146
1
Cap Screw, Hex Hd., 5/8-11 x 4"
13
10
12
16
11
12
4
3
1
2
3
4
17
11
14 *
9
7
6
5
8
15 *
17
