Frame lift assembly – Diamond Products CC2500 (Hydraulic) User Manual
Page 10
2
6
4
3
3
5
1
7
#6047706

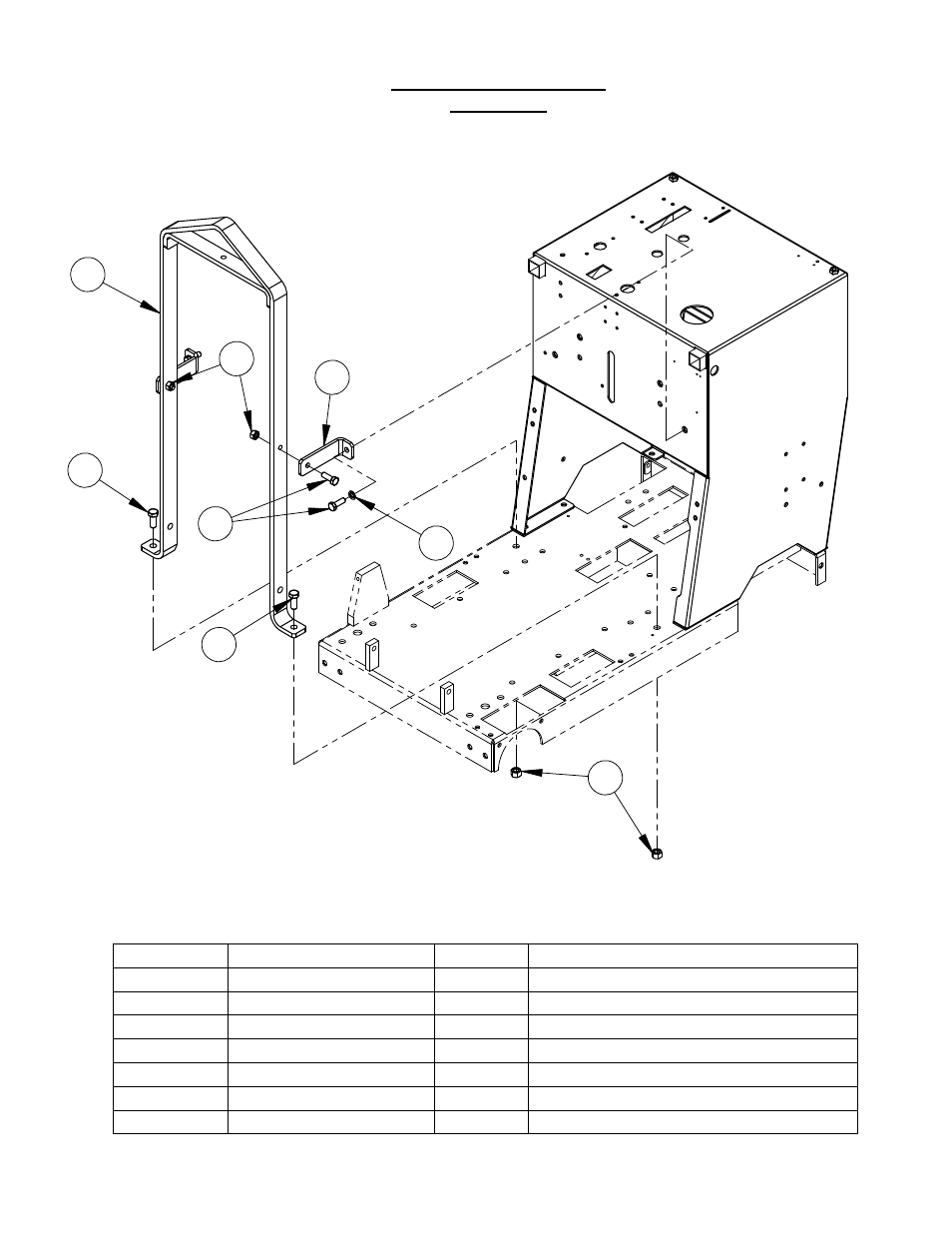

Frame Lift Assembly
ITEM PART
NO.
QTY.
DESCRIPTION
1
6047952
1
Frame Lift
2
6047953
2
Frame Lift Brace
3
2900330
2
Cap Screw, Hex Hd., M12-1.75 x 30mm
4
2900327
2
Lock Nut, M12-1.75 Nylon Insert
5
2900304
2
Lock Nut, M10-1.5 Nylon Insert
6
2900321
2
Lock Washer, M10 Split
7
2900223
4
Cap Screw, Hex Hd., M10-1.5 x 30mm
10
