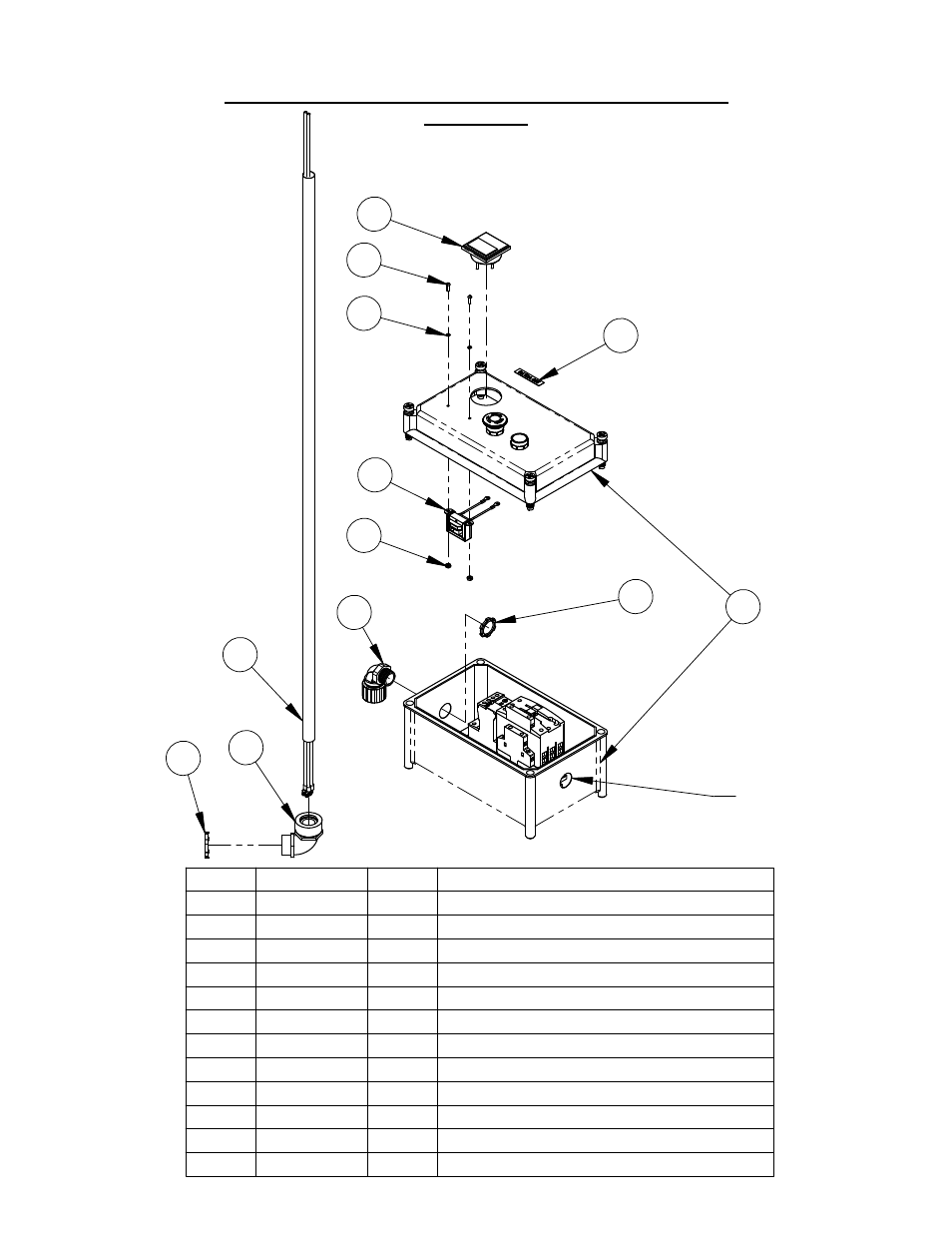

STARTER BOX ASSEMBLY, 3-PHASE, 220-240V
#6004896
TO
MOTOR
ITEM PART NO. QTY. DESCRIPTION
1 2804008 1 Starter Box, 220-240V
2 2800253 1 Amp Meter w/ Bracket, 0-40 AC
3 2800085 1 AC Current Transformer
4 2900090 2 Machine Screw, Rd. Hd., #6-32 x 1/2"
5 2900092 2 Lock Washer, #6 Split
6 2900091 2 Hex Nut, #6-32
7 1800810 1 Voltage Label, 230V
8 2801303 1 Connector, 3/4" Cord 90Deg, Plastic
9 2801304 1 Lock Nut, 3/4"
10 2800339 1 Cord Grip, To 7/8", 90 Deg.
11 2800193 1 Lock Nut, 1"
12 6040304 1 Cable Assy., 8 Ga., 4 Wire x 54"
5
7
POWER CORD
9
3
6
8
12
10
11
2
4
1
FOR CUSTOMER
SUPPLIED
TO STARTER
BOX
OVERLOAD
