Diamond Products CC2500 (Hydraulic) User Manual
Page 29
ITEMPART NO.QTY.
DESCRIPTION
1
6040300D
1
Starter Box Base
2
2901588
4
M6-1.0 Threaded Insert
3
6040598
1
Sub-plate
4
2900676
4
Machine Screw, Pan Hd., M4-0.7 x
8mm
5
2801704
1
Contactor, 220-240V (includes coil)
2801265
1
Replacement Coil, 220-240V
6
2801699
1
Overload Relay, 9-45 AMP
7
2801676
1
Auxilary Contacts, 1NO-NC
8
2901827
4
Cap Screw, Soc. Hd., #8-32 x 5/8"
9
2901437
4
Flat Washer, #10
10
2800315
2
Grounding Lug

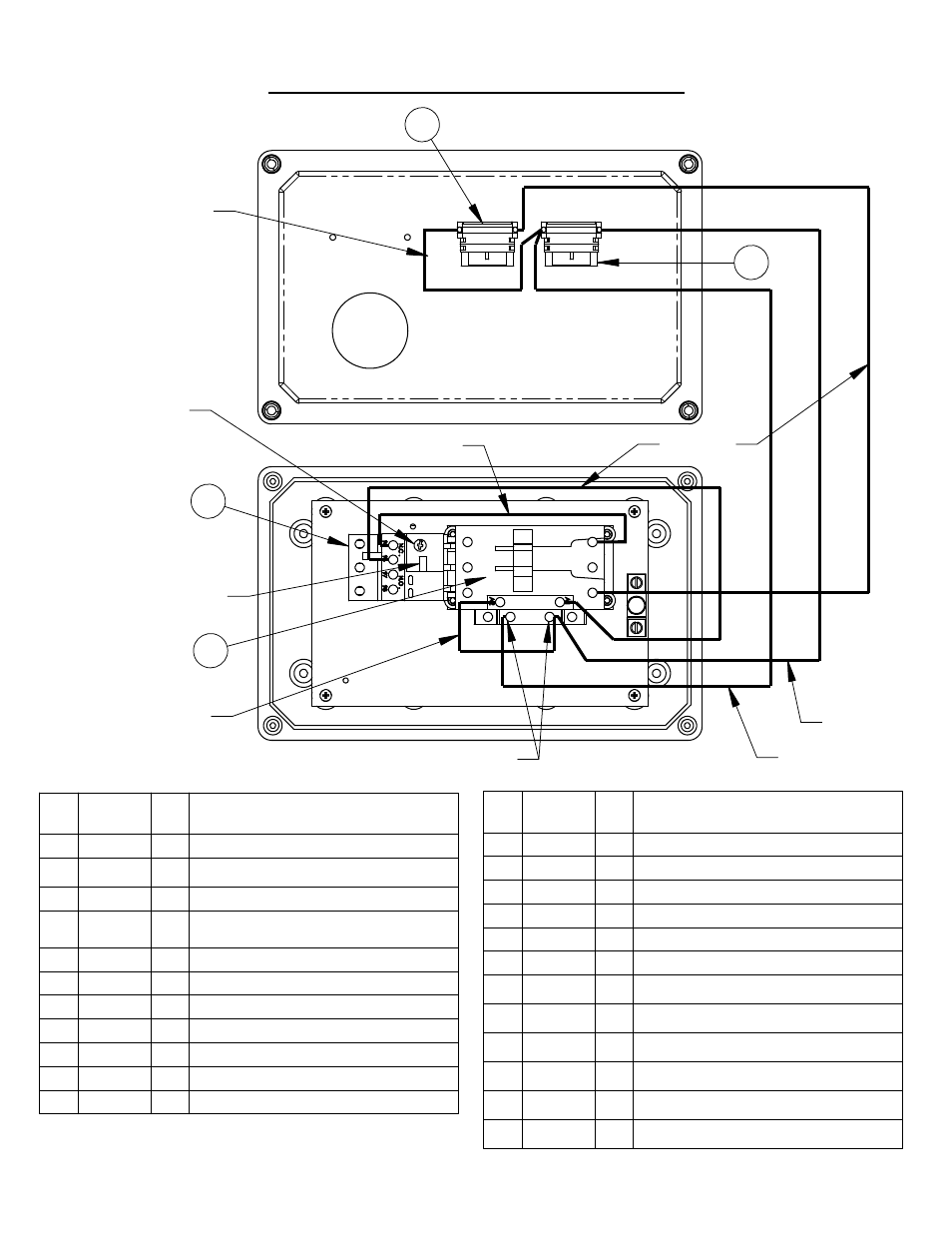

2804008 STARTER BOX, 220-240 VOLT
ITEMPART NO.QTY.
DESCRIPTION
11
2900024
1
Lock Washer, 1/4" Split
12
2901891
1
Cap Screw, Hex Hd., 1/4-28 x 1/2"
13
2801636
1
E-Stop Switch, 600V
14
2801639
1
Pushbutton, N.O., 600V
15
6048293
1
Starter Box Cover
16
2701414
4
Fastener, Electrical Box Top
17
4600293
1
Wire, 14 Gage, Yellow, 15"
18
4600294
1
Wire, 14 Gage, Yellow, 6"
19
4600295
1
Wire, 14 Gage, Black, 6"
20
4600296
1
Wire, 14 Gage, Black, 15"
21
4600297
1
Wire, 14 Gage, Red, 12"
22
4600298
2
Wire, 14 Gage, Red, 13"
4600298
4600294
4600293
6
RATING
MOTOR AMP
5
N.O. ONLY
SET TO
PHASE - OFF
4600295
TRIP CLASS - 10
RESET - A
4600297
13
14
4600296
29
