Diamond Products CC2500 (Hydraulic) - Manual (Page 14)

DETAIL A
10
13
SCALE 1 : 4
8
2 10
9
7
1
3
11
5
6
12
3
4
15
ITEM PART NO. QTY. DESCRIPTION
1 6010092 1 Depth Indicator Mount Bracket
2 2900310 2
Cap Screw, Hex Hd., M6-1.0 x
20mm
3 2900302 2 Lock Nut, M6-1.0 Nylon Insert
4 2500155 2 Cable Pulley, 1-1/4"
5 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
6 2900010 2 Lock Nut, 1/4-20 Nylon
7 6010091 1 Depth Indicator Pointer
8 2900079 1 Cap Screw, Hex Hd., 3/8-16 x 2-1/4"
9 2500145 1 Flange Bearing, 3/8"
10 2900014 3 Flat Washer, 3/8" SAE
11 6010093 1 Cable Pulley, 2"
12 2900018 2 Lock Nut, 3/8-16 Nylon
13 6047989 1 Depth Indicator Cable
14 2500214 1 Cable Clamp
15 2500799 1 Depth Indicator Spring 11"
16 2900055 1 Cotter Pin, 3/16" x 1"
17 2900964 1 Eyebolt, 3/8-16 x 6"

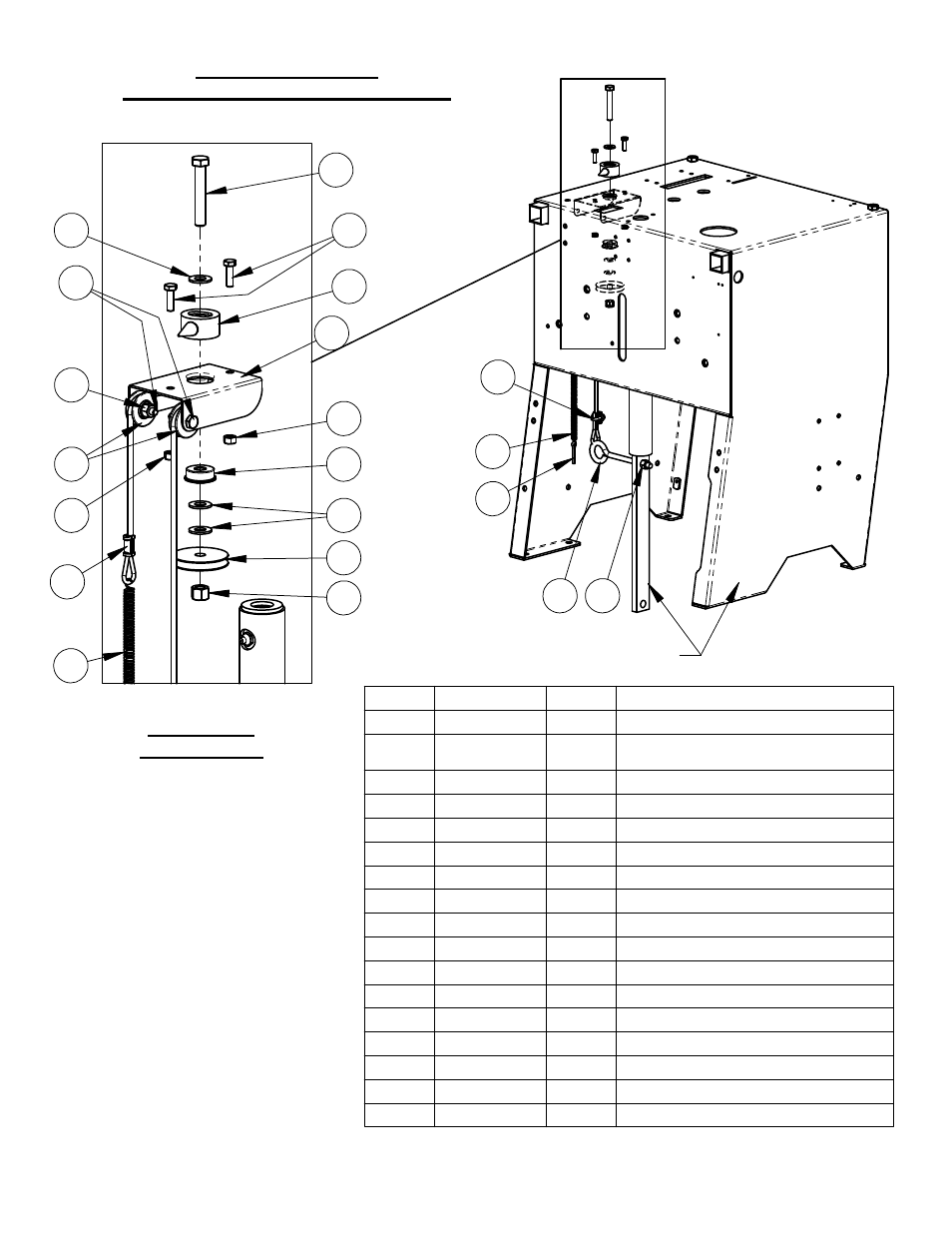

6047946 CC2500
DEPTH INDICATOR ASSEMBLY
16
12 17
15
SHOWN AS REFERENCE
14
14
