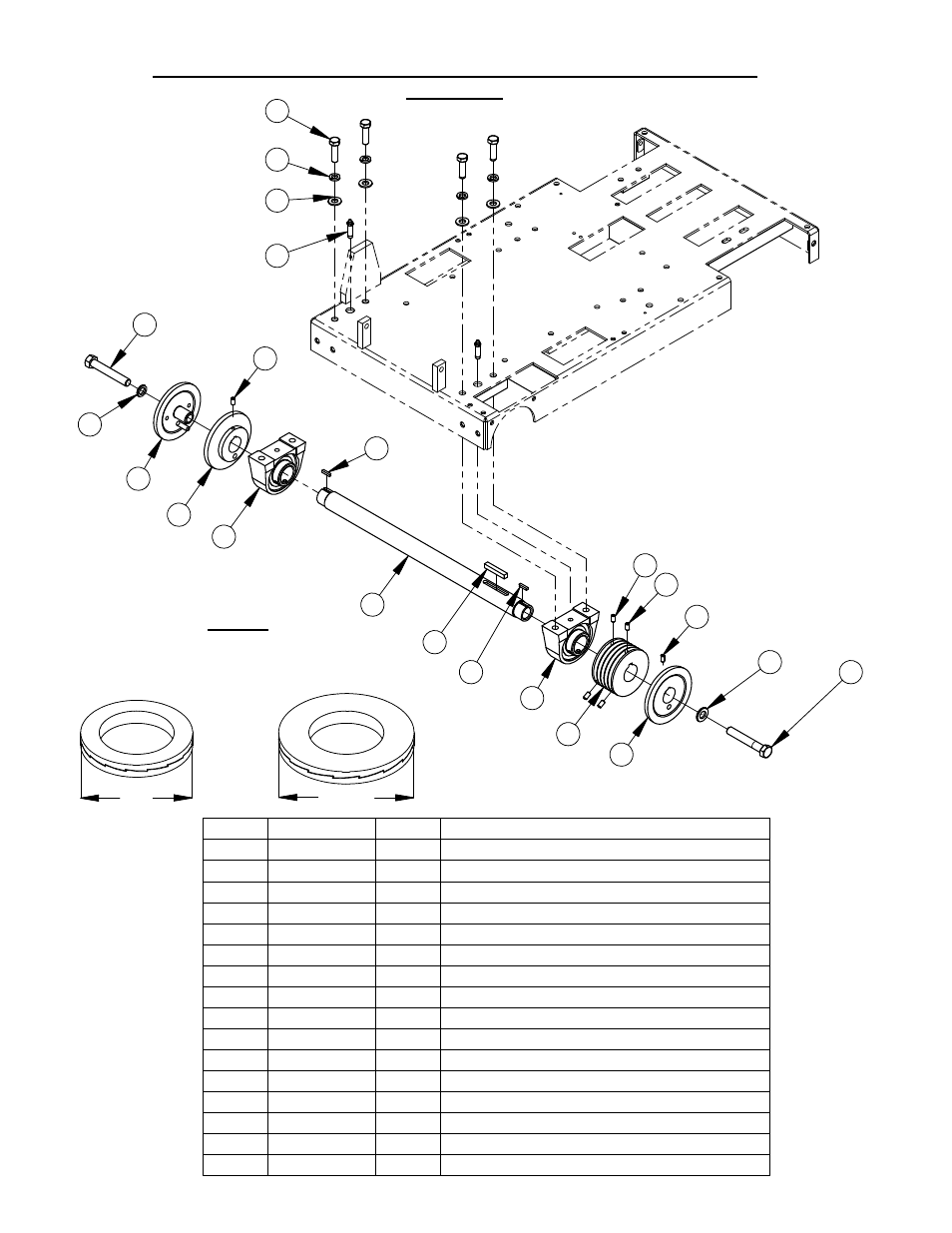

Blade Shaft Assembly (14, 20" Gas/Electric, 26" Hydraulic)
#6047940
* See Note
* See Note
ITEM PART NO. QTY. DESCRIPTION
1 6047905 1 Blade Shaft
2 6047959 1 Key, 3/8" Sq. x 2-1/4"
3 6047978 2 Key, 3/16" Sq. x 27/32"
4 2500731 2 Pillow Block Bearing 1-1/2"
5 2900058 4 Flat Washer, 1/2" SAE
6 2900084 4 Lock Washer, 1/2" Split
7 2900139 4 Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
8 2900264 2 Grease Fitting, 1/8" NPT x 1-3/4"
9 6047947 1 Sheave, 4.12" x 1-1/2" Bore
10 2900418 6 Set Screw, Soc. Hd., 5/16-18 x 5/8"
11 6047906 2 Inner Flange 5"
12 6047907 1 Outer Flange 5" with Pin
13 2900130 1 Cap Screw, Hex Hd., 5/8-11 x 4" LH
14 2900146 1 Cap Screw, Hex Hd., 5/8-11 x 4"
15 2900412 1 Lock Washer, Wedge 5/8"
16 2901569 1 Lock Washer, Wedge 5/8" LH
14
13
15 *
12
7
10
11
4
3
1
2
3
4
10
11
9
8
10
10
5
6
16
*
16
