Blade shaft assembly, 26” electric, Blade shaft assembly (26" gas/electric) – Diamond Products CC2500 (Hydraulic) User Manual
Page 18
2900412
FOR RH THREADED
BOLTS ONLY
2901569
FOR LH THREADED
BOLTS ONLY
1.2"
1"
* NOTE
*
15
4
10
11
13
12
3
1
2
3
4
9
16
10
11
10
10
8
5
6
7
14 *
* See Note
#6047941
* See Note

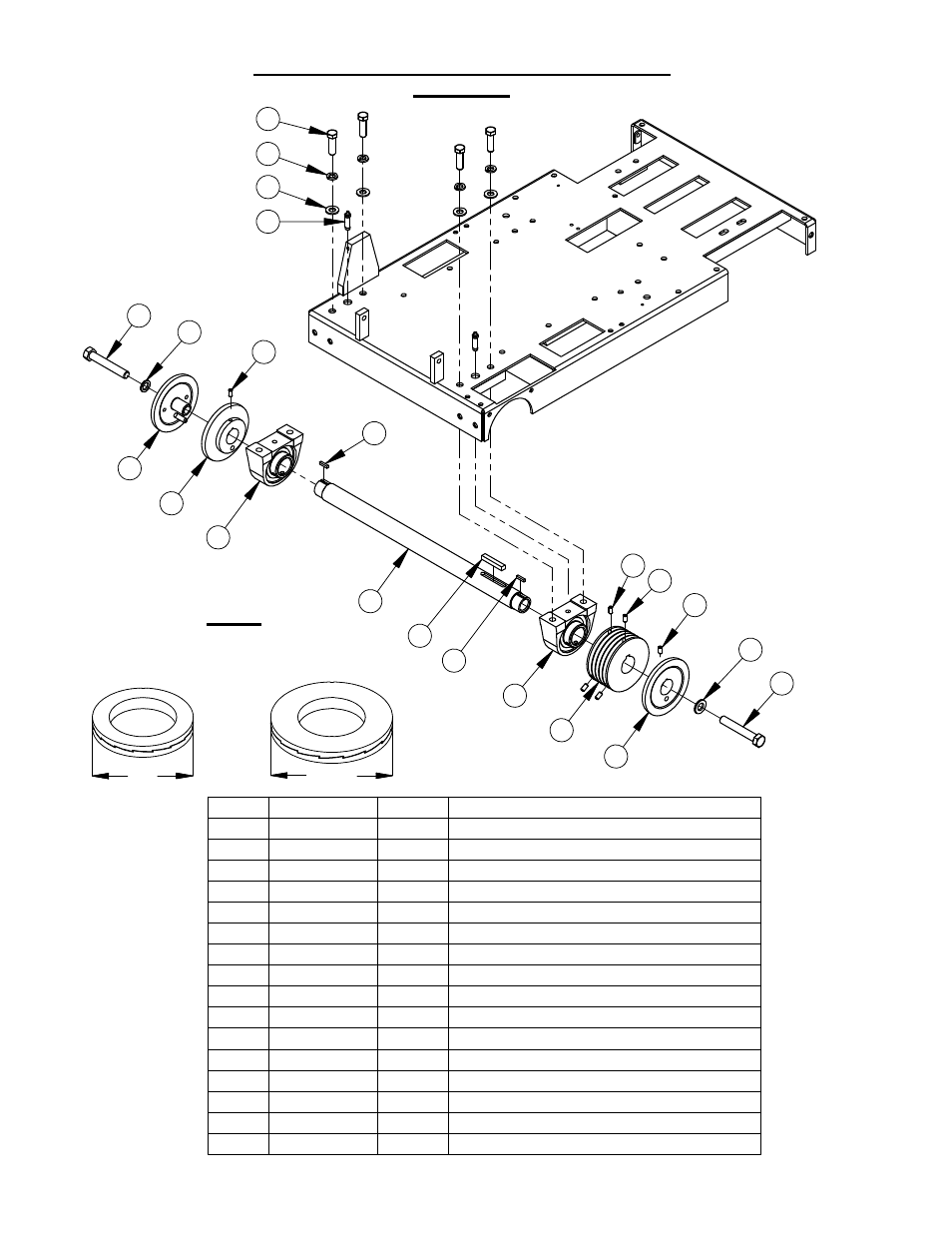

Blade Shaft Assembly (26" Gas/Electric)
ITEM
PART NO.
QTY.
DESCRIPTION
1
6047905
1
Blade Shaft
2
6047959
1
Key, 3/8" Sq. x 2-1/4"
3
6047978
2
Key, 3/16" Sq. x 27/32"
4
2500731
2
Pillow Block Bearing 1-1/2"
5
2900058
4
Flat Washer, 1/2" SAE
6
2900084
4
Lock Washer, 1/2" Split
7
2900139
4
Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
8
2900264
2
Grease Fitting, 1/8" NPT x 1-3/4"
9
6047948
1
Sheave, 4.75" x 1-1/2" Bore
10
2900418
6
Set Screw, Soc. Hd., 5/16-18 x 5/8"
11
6047906
2
Inner Flange 5"
12
6047907
1
Outer Flange 5" with Pin
13
2900412
1
Lock Washer, Wedge 5/8"
14
2901569
1
Lock Washer, Wedge 5/8" LH
15
2900130
1
Cap Screw, Hex Hd., 5/8-11 x 4" LH
16
2900146
1
Cap Screw, Hex Hd., 5/8-11 x 4"
18
