Mallory Ignition Mallory HYFIRE 6A and 6AL SERIES ELECTRONIC IGNITION CONTROLS 6852M_6853M - Manual (Page 6)

®
PART No. 6852
R
BLACK (SMALLER)
ORANGE
YELLOW
COIL
WHITE
GREEN
PURPLE
RED (SMALL 18 GA)
BLACK (LARGE 14 GA)
RED (LARGE 14 GA)
TO BATTERY NEG (-)
TO BATTERY POS (+)
ORIGINAL COIL (+)
IGNITION KEY
NOT USED
TO 12 VOLTS
TO TACHOMETER
FROM MAG PICK-UP DIST
OR CRANK TRIGGER
®
PART No. 6852
R
IGNITION KEY TO 12 VOLTS
BLACK (SMALLER)
ORANGE
YELLOW
COIL
WHITE GREEN
BROWN
RED (SMALL 18 GA)
TO TACHOMETER
BLACK (LARGE 14 GA)
TO BATTERY NEG (-)
RED (LARGE 14 GA)
TO BATTERY POS (+)
RED
TO
ENGINE
CONNECT WIRES AT
THESE POINTS
NOT USED
GREEN
PURPLE
®
PART No. 6852
R
BLACK (SMALLER)
ORANGE
YELLOW
COIL
WHITE
Original coil wire from points
or electronic ignition amplifier
RED
BLACK (LARGER)
RED (LARGER)
TO BATTERY NEG (-)
TO BATTERY POS (+)
IGNITION KEY TO 12 VOLTS
TO TACHOMETER
MAGNETIC PICK-UP
(NOT USED)
Originally connected to coil (+)
MALLORY IGNITION www.malloryperformance.com 6

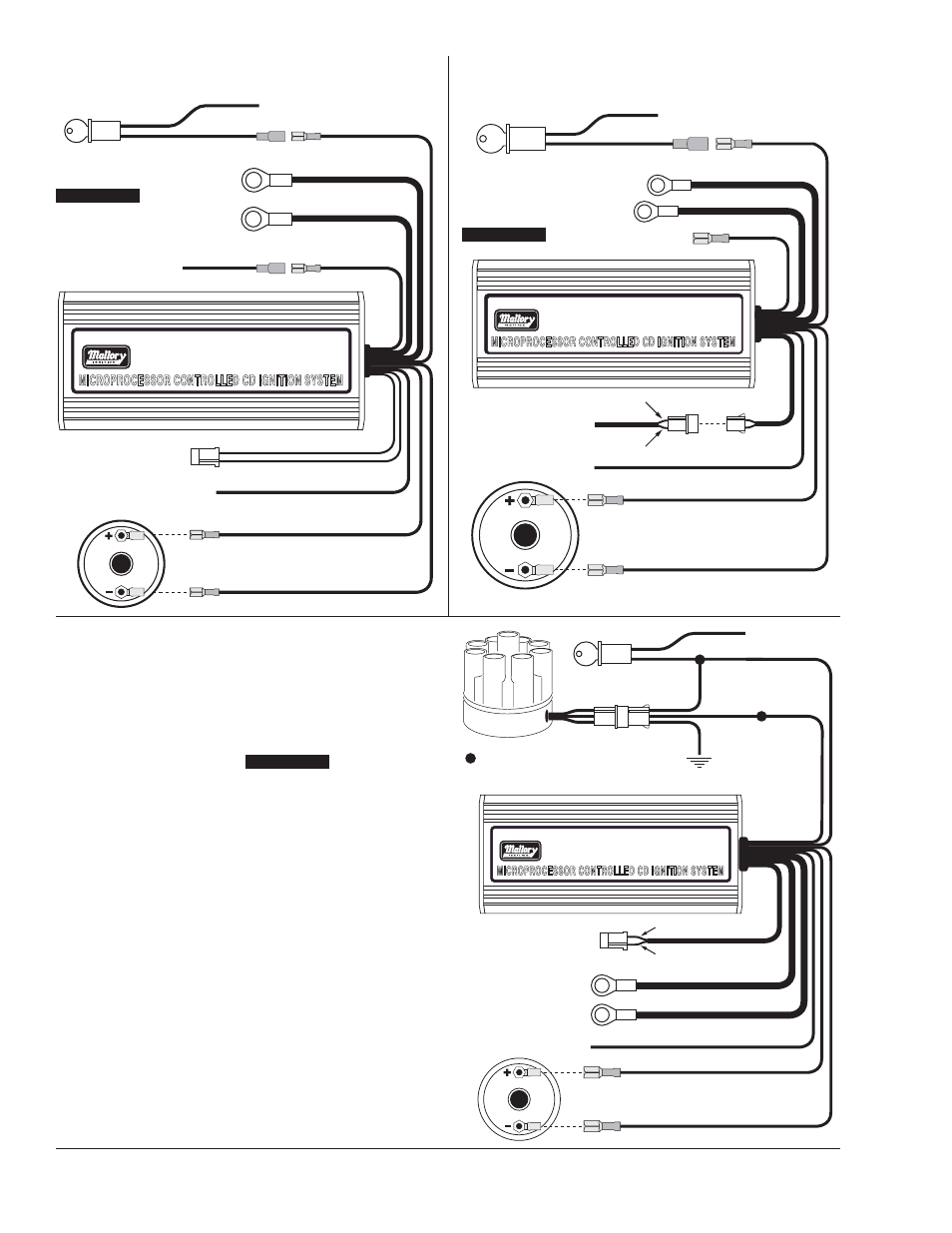

Installing the HYFIRE ® 6A with a Magnetic
Pickup Distributor or Crank Trigger
Installing the HYFIRE ® 6A with a
Mallory UNILITE ® or Magnetic
Breakerless Distributor
Installing the HYFIRE ® 6A with a Points/Amplifier
Style Ignition
FIGURE 8
FIGURE 9
FIGURE 10
H HY YF FIIR RE E 6 6A A
H HY YF FIIR RE E 6 6A A
H HY YF FIIR RE E 6 6A A
