Mallory Ignition Mallory HYFIRE 6A and 6AL SERIES ELECTRONIC IGNITION CONTROLS 6852M_6853M - Manual (Page 11)

®
PART No. 6852
R
BLACK (SMALL 18 GA)
ORANGE
BLACK/GRAY OR GRAY
YELLOW
TO TACHOMETER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG (-)
WHITE
ORIGINAL COIL (+)
GREEN
PURPLE
GREEN/ORANGE
RED (SMALL 18 GA) GREEN/ORANGE
IGNITION TO 12 VOLTS
MAGNETIC PICKUP
NOT USED
BLACK/GRAY
FROM POINTS OR
ELECTRONIC IGNITION
ORIGINAL COIL (-)
®
PART No. 6852
R
BLACK (SMALL 18 GA)
ORANGE
COIL
WHITE
NOT USED
YELLOW
TO TACHOMETER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG (-)
RED (SMALL 18 GA) FROM
ORIGINAL COIL
BLACK
ORANGE
CHRYSLER
MODULE
VIOLET GREEN
GREEN
PURPLE
6 FT EXTENSION CABLE
CUT ONE END AND
SPLICE AS SHOWN
SPLICE
11 MALLORY TECHNICAL SUPPORT (216) 688-8300 [email protected]

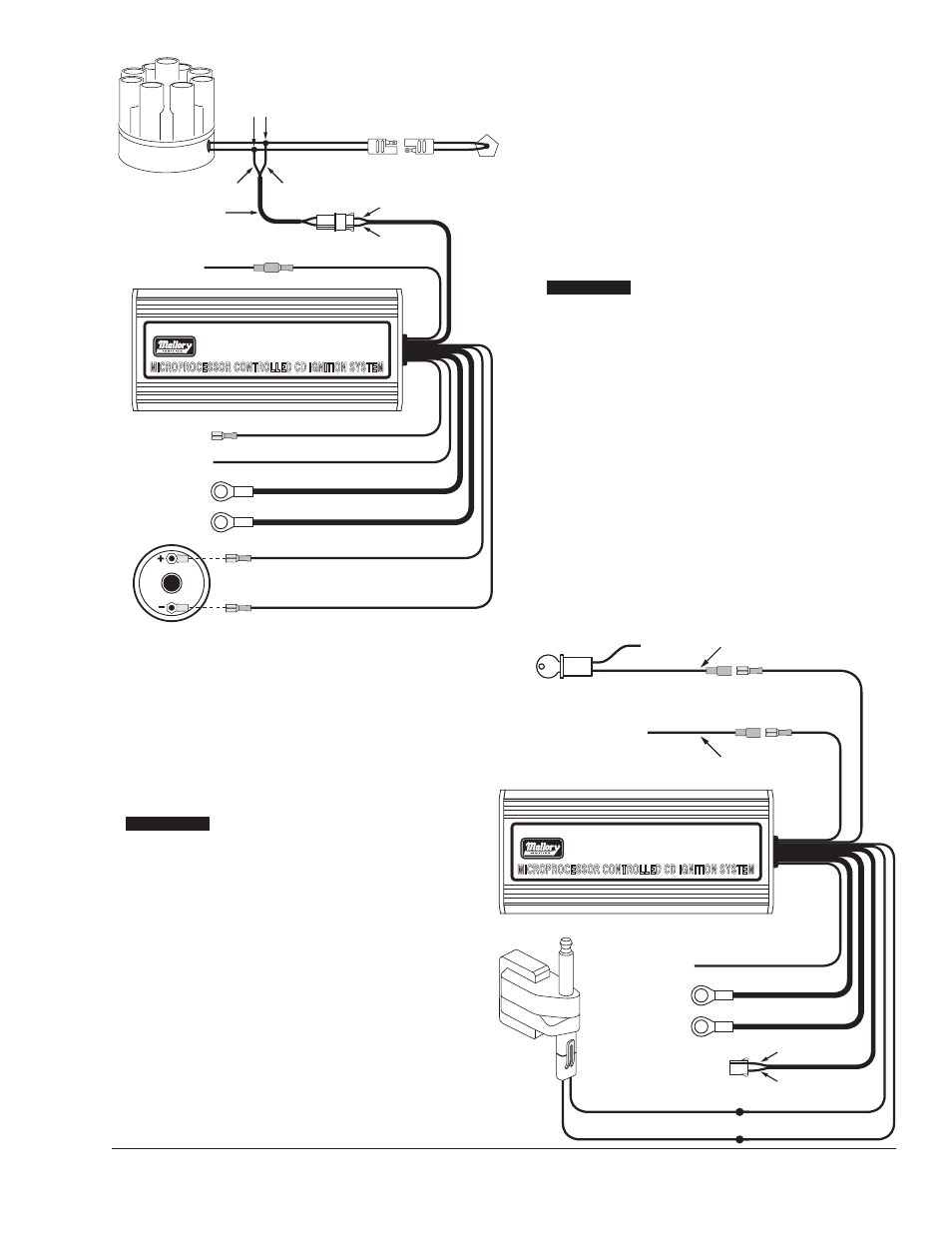

Installing the HYFIRE ® 6A with a
Chrysler Electronic Ignition using
a Magnetic Pickup Trigger
Installing the HYFIRE ® 6A with a Late
Model Dodge (with 2-Pin Connector)
FIGURE 20
FIGURE 21
H HY YF FIIR RE E 6 6A A
H HY YF FIIR RE E 6 6A A
